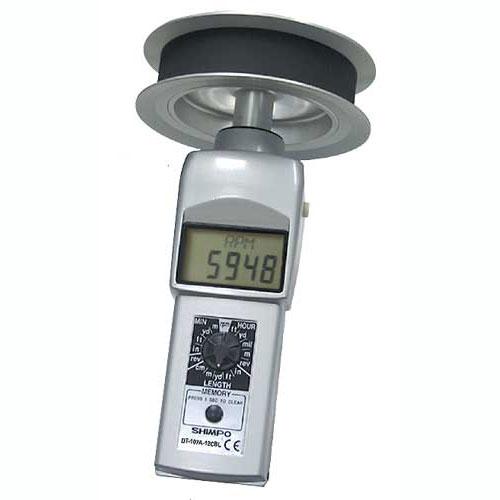

Shimpo DT-105A-12CBL Contact Style Digital Handheld Tachometer, LCD, 12in Circumference Cable Wheel

SHIMPO INSTRUMENTS
SHIMPO's microprocessor technology has heralded a superior standard in tachometer accuracy and capabilities for measuring and recording rotational/linear/surface speeds and total length.Includes precision made 12” circumference GROOVED wheel designed for rugged use, while delivering superior performance and accuracy over more conventional flat surface wheels more ...
Scales > Force Gauge > Digital Gauge
Shimpo DT-105A-12CBL Contact Style Digital Handheld Tachometer, LCD, 12in Circumference Cable Wheel





Download PDF
Shimpo DT-105A-12CBL Contact Style Digital Handheld Tachometer, LCD, 12in Circumference Cable Wheel
FREE Ground Shipping
(48 US States Only)

Price: $405.00


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

Shimpo
SKU: DT-105A-12CBL

Features

SHIMPOs microprocessor technology has heralded a superior standard in tachometer accuracy and capabilities for measuring and recording rotational/linear/surface speeds and total length. Offering unprecedented confidence via new improvements, the DT-105A and DT-107A battery-operated tachometers still feature the same rugged, high quality components that have made them the benchmark in the industry. These user-friendly, value-packed units feature expanded memory storage, added length functions, free N.I.S.T. certificate and many standard accessories.

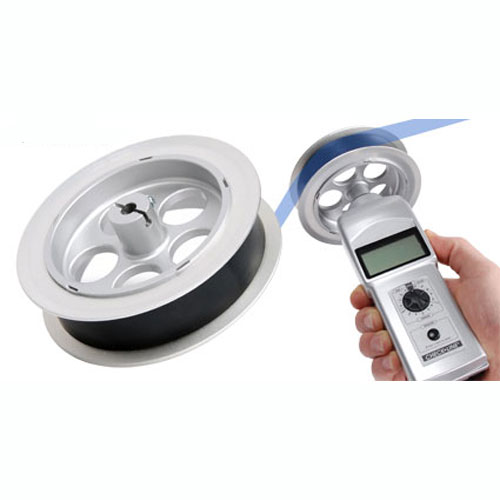

Includes precision made 12” circumference GROOVED wheel designed for rugged use, while delivering superior performance and accuracy over more conventional flat surface wheels

Employing a non slip rubber contact surface, the wheel adds safety and accuracy while measuring speeds on Elevator governor cables, wire and cable reels, extruded tubing and many other applications

FEATURES
  • Multi-mode speed selection
  • Outstanding accuracy
  • Rugged aluminum construction
  • Direct length measurement
  • Extensive speed range (0.10 - 25,000 RPM
  • Large 5 digit display
  • Lengthy battery life (40 - 60 hours)
  • Large 10 test memory capacity (selectable to 5 minutes or more)
  • Total revolution display
  • CE mark
  • Minimum shaft loading overspeed protection

BENEFITS
  • Features 16 selections for optimum versatility
  • Provides reliable measurement results
  • Built to stand the test of time
  • Offers value/versatility via added applications
  • Maximizes usage in almost limitless applications
  • Allows easy reading of numbers
  • Advanced power management enables longer operating times
  • Stores last/min/max readings for thorough equipment and process inspection
  • Enables rotation counting during process analysis
  • Permits easy compliance with regulations
  • Compliant with applicable EU directives
  • Prevents potential instrument damage
Display Range 0.10 to 25,000 rpm with floating decimal
Accuracy 0.10 to 999.99 rpm: ±0.06 rpm
1,000.0 to 9,999.9 rpm: ±0.6 rpm
10,000 to 25,000 rpm: ±0.006% rpm
Display DT-105A: (LCD MODEL) 5 digit 0.47" (12mm) high
DT-107A: (LED MODEL) 5 digit 0.4" (10mm) high
Measurement Units Per Second: Inches, Centimeters (optional, inquire)
Per Minute: Revolutions, Inches, Feet, Yards, Meters
Per Hour: Miles, Kilometers (optional, inquire)
Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters
Memory System 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Over-Range Indicator Flashing numerals
Update Time 1 second (typical)
Batteries 2 - 1.5 V AA
Battery Life Approx. 65 hrs. (DT-105A)
Life: Approx. 40 hrs. (DT-107A)
Low Voltage Indicator Flashing "LO BAT" display (DT-105A)
"B" display (DT-107A)
Operating Temp 32 to 113° F (0 to 45° C)

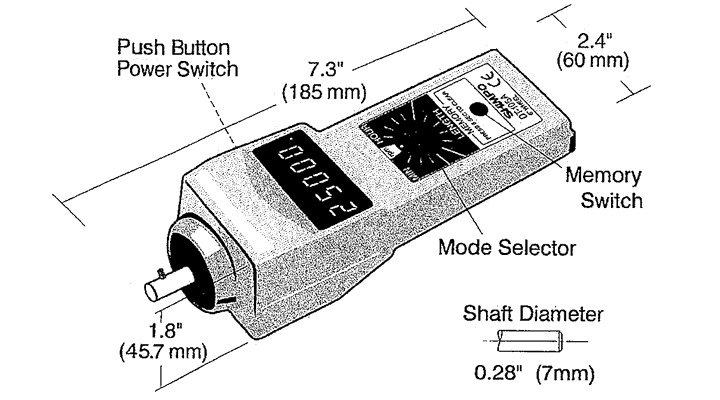

Dimensions 7.3" L x 2.4" W x 1.8" H

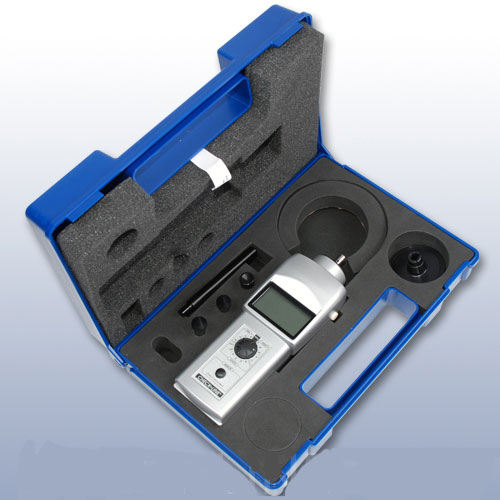

Accessories Included 2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions
Country of Origin Taiwan

Weight: 2.00 lb
2 Year Manufacture Warranty
