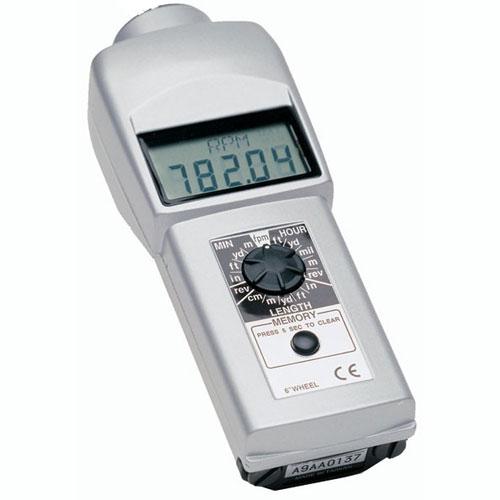

Shimpo DT-105A-S12 Contact Style Digital Handheld Tachometer, LCD, 12in wheel

SHIMPO INSTRUMENTS
SHIMPO's microprocessor technology has heralded a superior standard in tachometer accuracy and capabilities for measuring and recording rotational/linear/surface speeds and total length. Offering unprecedented confidence via new improvements, the DT-105A and DT-107A battery-operated tachometers still feature the same rugged, high quality components that have made them the benchmark in the industry more ...
Scales > Force Gauge > Digital Gauge
Shimpo DT-105A-S12 Contact Style Digital Handheld Tachometer, LCD, 12in wheel





Download PDF
Shimpo DT-105A-S12 Contact Style Digital Handheld Tachometer, LCD, 12in wheel
FREE Ground Shipping
(48 US States Only)

Price: $286.00


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

Shimpo
SKU: DT-105A-S12

Features

SHIMPOs microprocessor technology has heralded a superior standard in tachometer accuracy and capabilities for measuring and recording rotational/linear/surface speeds and total length. Offering unprecedented confidence via new improvements, the DT-105A and DT-107A battery-operated tachometers still feature the same rugged, high quality components that have made them the benchmark in the industry. These user-friendly, value-packed units feature expanded memory storage, added length functions, free N.I.S.T. certificate and many standard accessories.

FEATURES
  • Multi-mode speed selection
  • Outstanding accuracy
  • Rugged aluminum construction
  • Direct length measurement
  • Extensive speed range (0.10 - 25,000 RPM
  • Large 5 digit display
  • Lengthy battery life (40 - 60 hours)
  • Large 10 test memory capacity (selectable to 5 minutes or more)
  • Total revolution display
  • CE mark
  • Minimum shaft loading overspeed protection

BENEFITS
  • Features 16 selections for optimum versatility
  • Provides reliable measurement results
  • Built to stand the test of time
  • Offers value/versatility via added applications
  • Maximizes usage in almost limitless applications
  • Allows easy reading of numbers
  • Advanced power management enables longer operating times
  • Stores last/min/max readings for thorough equipment and process inspection
  • Enables rotation counting during process analysis
  • Permits easy compliance with regulations
  • Compliant with applicable EU directives
  • Prevents potential instrument damage
Display Range 0.10 to 25,000 rpm with floating decimal
Accuracy 0.10 to 999.99 rpm: ±0.06 rpm
1,000.0 to 9,999.9 rpm: ±0.6 rpm
10,000 to 25,000 rpm: ±0.006% rpm
Display DT-105A: (LCD MODEL) 5 digit 0.47" (12mm) high
DT-107A: (LED MODEL) 5 digit 0.4" (10mm) high
Measurement Units Per Second: Inches, Centimeters (optional, inquire)
Per Minute: Revolutions, Inches, Feet, Yards, Meters
Per Hour: Miles, Kilometers (optional, inquire)
Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters
Memory System 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Over-Range Indicator Flashing numerals
Update Time 1 second (typical)
Batteries 2 - 1.5 V AA
Battery Life Approx. 65 hrs. (DT-105A)
Life: Approx. 40 hrs. (DT-107A)
Low Voltage Indicator Flashing "LO BAT" display (DT-105A)
"B" display (DT-107A)
Operating Temp 32 to 113° F (0 to 45° C)

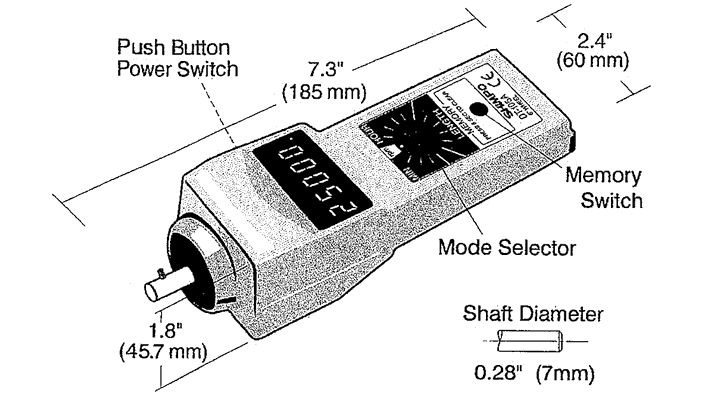

Dimensions 7.3" L x 2.4" W x 1.8" H

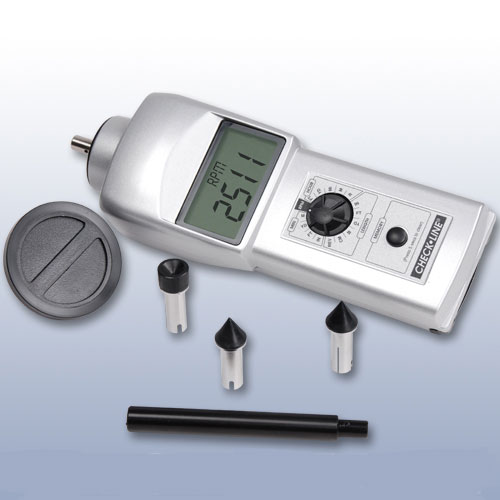

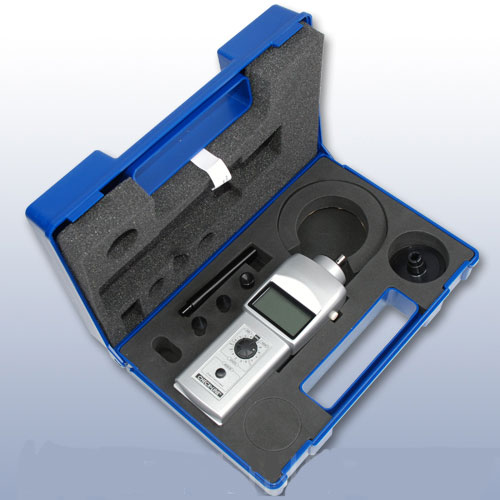

Accessories Included 2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions
Country of Origin Taiwan

Weight: 2.00 lb
2 Year Manufacture Warranty
