Mark-10 MR06-200 Wire Crimp Pull Sensor 200 x 0.1 lbF

Mark-10 - Force and Torque Measurement Products

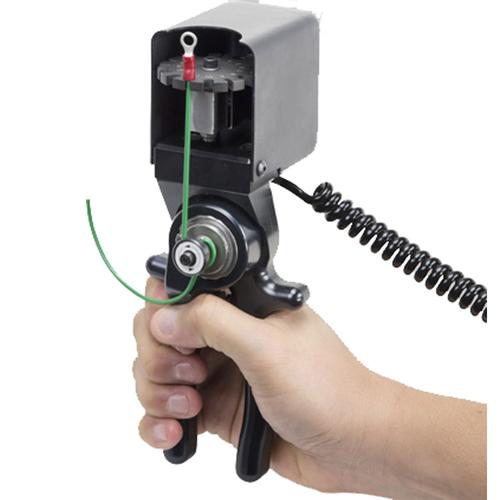

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator. more ...
Scales > Force Gauge > Torque Gauge
Mark-10 MR06-200 Wire Crimp Pull Sensor 200 x 0.1 lbF

Specifications Chart


Call for more info
Download PDF
Mark-10 MR06-200 Wire Crimp Pull Sensor 200 x 0.1 lbF
FREE Ground Shipping *


Price: $1,420.25


In Stock - Ships within 24 hours

View More Pictures
View Features

Mark 10
SKU: MR06-200

Features

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by the indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diamaters, up to 0.25 in. (6.4 mm).

Unique Plug & TestTM technology allows for interchangeable sensors to be used with a Mark- 10 indicator. All calibration and configuration data is saved in the smart connector.

The Plug & TestTM connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.


Weight: 16.00 lb
3 Year Manufacture Warranty

Specifications

Model MR06-200
Capacity x Resolution
With Models 7i & 5i indicators
200 x 0.1 lbF
3200 x 2 ozF
100 x 0.05 kgF
1000 x 0.5 N
1 x 0.0005 kN
Capacity x Resolution
With Model 3i indicator
200 x 0.2 lbF
100 x 0.1 kgF
1000 x 1 N
Accuracy ±0.5% of full scale + indicator
Safe Overload 150% of full scale
Weight 2.5 lb [1.2 kg]
Slot Dimensions (in [mm]) 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]

* within the 48 continental US States
