Mark-10 MGTC12 Digital Torque Gauge, 12 x 0.01 lbFin

Mark-10 - Force and Torque Measurement Products
The new Series MGTC Cap Torque Gauge is a quick and economical solution for basic handheld cap torque testing. This portable instrument eliminates the need to secure closures in a fixture or more elaborate testing system. more ...
Scales > Force Gauge > Torque Gauge
Mark-10 MGTC12 Digital Torque Gauge, 12 x 0.01 lbFin




Call for more info
Download PDF
Mark-10 MGTC12 Digital Torque Gauge, 12 x 0.01 lbFin
FREE Ground Shipping *


Price: $1,353.75


In Stock - Ships within 24 hours

View Features

Mark 10
SKU: MGTC12

Features

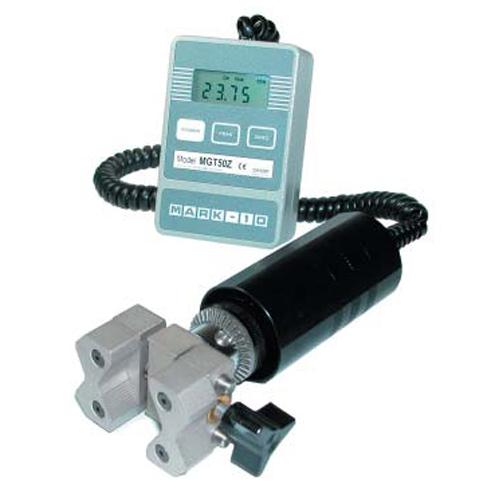

The new Series MGTC Cap Torque Gauge is a quick and economical solution for basic handheld cap torque testing. This portable instrument eliminates the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter. The MGTC records both application and removal torque values (clockwise and counter-clockwise directions), and is available in three capacities from 12 to 100 lbin (135 to 1150 Ncm).

Features:

  • Universal grip ideal for wide range of cap sizes
  • Compact design - Small size allows for portability
  • Peak memory for application and removal torque values
  • Selectable units
  • Measure in lbFin, kgFmm, or Ncm of measurement
  • Simple to use
  • Rugged aluminum housing
  • Programmable automatic shutoff
  • IPM - Intelligent Power Management
  • Push-button calibration
  • Battery or AC operation
  • Accuracy: ± 0.5% of full scale ±1 digit
  • Safe overload: 150% of capacity
  • Cap diameter range: 0.65 - 1.55 in (16.5 - 39.4 mm)
  • Battery life: 30 hours of continuous operation
  • Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Model MGTC12 MGTC50 MGTC100
Capacity
x
resolution
12 x 0.01 lbin
140 x 0.1 kgFmm
135 x 0.1 Ncm
50 x 0.05 lbin
580 x 0.5 kgFmm
570 x 0.5 Ncm
100 x 0.1 lbin
1150 x 1 kgFmm
1150 x 1 Ncm
Accuracy ±0.5% of full scale ±1 digit
Cap diameter range 0.65 - 1.55 in (16.5 - 39.4 mm)
Power AC or non-rechargeable battery
Battery life 30 hours of continuous use
Units of Measurement lbFin/ozFin, kgFmm, Ncm (depending on model)
Safe overload 150% of full scale (display shows “----” at 110% and above)
Environmental requirements 40° F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Thermal effects Zero: 0.03% of full scale/°C, Span: 0.01% of full scale/°C

Weight: 10.00 lb

* within the 48 continental US States
