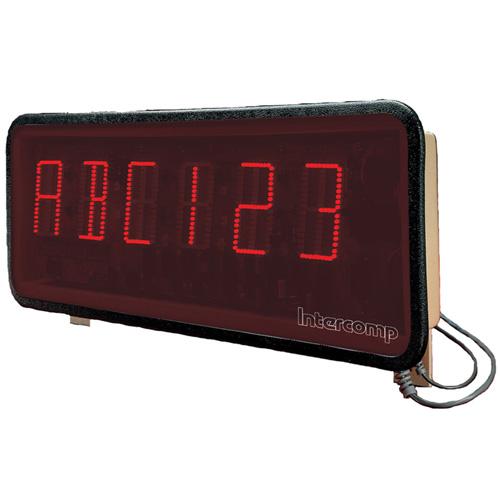

Intercomp 100018 Cabled S480HI™ Outdoor Alphanumeric Remote Display |
|
| Intercomp's S480 Series Displays are the affordable choice for high performance industrial applications. The S450 is available in four different configurations: Indoor Numeric, Outdoor Numeric, Indoor Alphanumeric, and Alphanumeric Outdoor . more ... |
|
Scales >
Industrial Scales >
Accessories
|
|
|
|
|
|
Features
| Model |
100015
S400 |
100016
S400HI |
100017
|
100018
|
100015-RFX
S400 |
100016-RFX
S400HI |
| Input Type |
Cabled |
Cabled |
Cabled |
Cabled |
RFX™ Wireless |
RFX™ Wireless |
| Use |
Indoor |
Outdoor |
Indoor |
Outdoor |
Indoor |
Outdoor |
| Display Configuration |
Numeric |
Numeric |
Alphanumeric |
Alphanumeric |
Numeric |
Numeric |
| Digit size |
4.5 inch height (113 mm) |
| Number of digits |
Six (6)-digit by 7 segment |
Six (6)-digits x 12 segments |
Six (6)-digit by 7 segment |
| Display Format |
Floating decimal point may be placed between any digit. Fixed decimal points selectable between ones, tens and hundreds positions (123.4.5.6). Pad read- out with one or two fixed zeros, switch selectable or sent from host. On alphanumeric models, any position may show a number, letter or common punctuation symbol. |
| Operating Temperature |
-50 to 120°F (-45 to 50°C) |
| Input Serial |
RS-232 or 20mA current loop (active or passive) at all standard baud rates from 50 to 9600.
Interface cable: 4-wire x 25 feet (7.5 meters).
Lengths to 1500 feet (455 meters) with Current loop, 50 feet (15 meters) with RS-232 |
RFX Wireless |
| Input Parallel |
TL BCD 199999 Range-Minus Line, Motion/Over-capacity Line, “Print” (Strobe) Line.
Interface cable: 24-wire x 25 feet (7.5 meters).
Lengths to 50 feet (15 meters) with BCD. |
RFX Wireless |
| Display size |
32.5 x 11.5 x 3.5 inches (820 x 290 x 90 mm) |
| Power |
Standard-UL, CSA listed plug-in wall transformer,110 volts AC, 60 Hz @ 1 amp, Power cable included, 3-wire x 25 feet (7.6 meters), 220 volts available |
Weight:
20.00 lb
|
|
