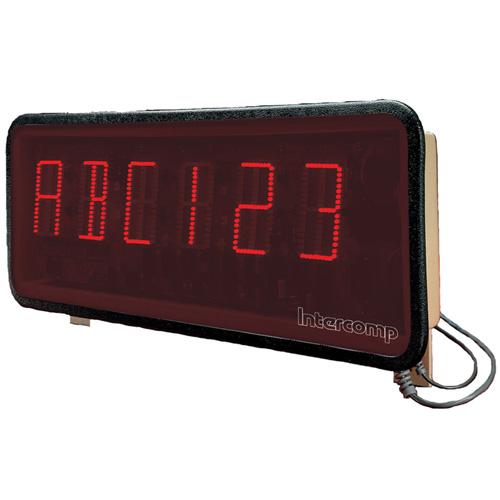

Intercomp's S400 Series Displays are the affordable choice for high performance industrial applications. The S400 is available in four different configurations: Indoor Numeric, Outdoor Numeric, Indoor Alphanumeric, and Outdoor Alphanumeric. more ...
Floating decimal point may be placed between any digit. Fixed decimal points selectable between ones, tens and hundreds positions (22.214.171.124). Pad read- out with one or two fixed zeros, switch selectable or sent from host. On alphanumeric models, any position may show a number, letter or common punctuation symbol.
-50 to 120°F (-45 to 50°C)
RS-232 or 20mA current loop (active or passive) at all standard baud rates from 50 to 9600.
Interface cable: 4-wire x 25 feet (7.5 meters).
Lengths to 1500 feet (455 meters) with Current loop, 50 feet (15 meters) with RS-232
TL BCD 199999 Range-Minus Line, Motion/Over-capacity Line, “Print” (Strobe) Line.
Interface cable: 24-wire x 25 feet (7.5 meters).
Lengths to 50 feet (15 meters) with BCD.
32.5 x 11.5 x 3.5 inches (820 x 290 x 90 mm)
Standard-UL, CSA listed plug-in wall transformer,110 volts AC, 60 Hz @ 1 amp, Power cable included, 3-wire x 25 feet (7.6 meters), 220 volts available
