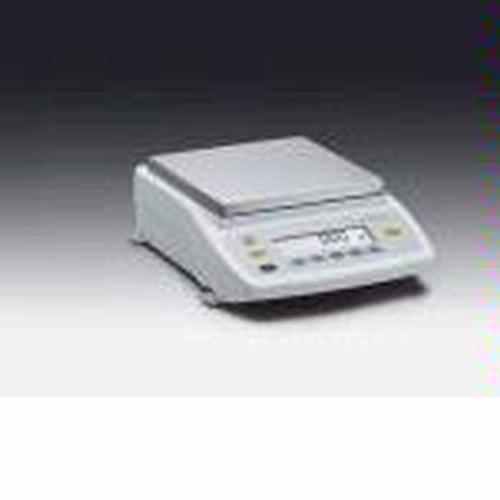

Sartorius ED2201-CW Extend Precision Balance, 2200 x 0.1 g |
|
| Full featured lab scales with exceptionally quick response times of 1.3 seconds or less! Robotically etched monolithic weigh cell ensures long-term, high accuracy and minimizes the effects of temperature drift. Backlit, high contrast LCD display more ... |
|
Laboratory Equipment >
Analytical Balances >
Tenth of a Gram - 0.1 g
|
|
|
|
|
|
Features
|
If you compare the specifications of many lab balances on paper, they all look the same -- if youre seen one, youve seen them all. But in the real world there is more to a lab balance than just its technical specifications.
The new Sartorius Extend series laboratory balances has been specifically designed for effective and reliable weighing in daily lab routines. This is where more powerful technology and application-oriented operation and features make all the difference.
More versatility in high-resolution applications: 1 mg to 620 g and 10 mg to 6200 grams. Sartorius makes top-of-the-line technology at reasonable cost... the new level of excellence.
Sartorius ED Extend Analytical Balances
|
| Model |
Readability |
Weighing Capacity |
Pan Size |
Repeatability |
Linearity |
Response Time (avg, sec) |
Calibration |
| ED124S |
0.0001 g |
120 g |
3.5" diameter |
0.0001 g |
0.0002 g |
1.3 |
Internal |
| ED224S |
0.0001 g |
220 g |
3.5" diameter |
0.0001 g |
0.0002 g |
1.3 |
Internal |
|
|
Sartorius Extend Precision Balances and Scales
| Model |
Readability |
Weighing Capacity |
Pan Size |
Repeatability |
Linearity |
Response Time (avg, sec) |
Calibration |
| ED153 |
0.001 g |
150 g |
4.5" diameter |
0.001 g |
0.002 g |
1 |
External
100 g |
| ED153-CW |
0.001 g |
150 g |
4.5" diameter |
0.001 g |
0.002 g |
1 |
Internal
100 g |
| ED323S |
0.001 g |
320 g |
4.5" diameter |
0.001 g |
0.002 g |
1 |
External
200 g |
| ED323S-CW |
0.001 g |
320 g |
4.5" diameter |
0.001 g |
0.002 g |
1 |
Internal
200 g |
| ED423S |
0.001 g |
420 g |
4.5" diameter |
0.001 g |
0.002 g |
1 |
External
200 g |
| ED423S-CW |
0.001 g |
420 g |
4.5" diameter |
0.001 g |
0.002 g |
1 |
Internal
200 g |
| ED623S |
0.001 g |
620 g |
4.5" diameter |
0.001 g |
0.002 g |
1 |
External
500 g |
| ED623S-CW |
0.001 g |
620 g |
4.5" diameter |
0.001 g |
0.002 g |
1 |
Internal
500 g |
|
| Model |
Readability |
Weighing Capacity |
Pan Size |
Repeatability |
Linearity |
Response Time (avg, sec) |
Calibration |
| ED822 |
0.01 g |
820 g |
5.9" diameter |
0.01 g |
0.02 g |
1 |
External
500 g |
| ED822-CW |
0.01 g |
820 g |
5.9" diameter |
0.01 g |
0.02 g |
1 |
Internal
500 g |
|
| Model |
Readability |
Weighing Capacity |
Pan Size |
Repeatability |
Linearity |
Response Time (avg, sec) |
Calibration |
| ED2202S |
0.01 g |
2200 g |
7.1" X 7.1" |
0.01 g |
0.02 g |
1.1 |
External
2000 g |
| ED2202S-CW |
0.01 g |
2200 g |
7.1" X 7.1" |
0.01 g |
0.02 g |
1.1 |
Internal
2000 g |
| ED3202S |
0.01 g |
3200 g |
7.1" X 7.1" |
0.01 g |
0.02 g |
1.1 |
External
2000 g |
| ED3202S-CW |
0.01 g |
3200 g |
7.1" X 7.1" |
0.01 g |
0.02 g |
1.1 |
Internal
2000 g |
| ED4202S |
0.01 g |
4200 g |
7.1" X 7.1" |
0.01 g |
0.02 g |
1.1 |
External
2000 g |
| ED4202S-CW |
0.01 g |
4200 g |
7.1" X 7.1" |
0.01 g |
0.02 g |
1.1 |
Internal
2000 g |
| ED6202S |
0.01 g |
6200 g |
7.1" X 7.1" |
0.01 g |
0.02 g |
1.1 |
External
5000 g |
| ED6202S-CW |
0.01 g |
6200 g |
7.1" X 7.1" |
0.01 g |
0.02 g |
1.1 |
Internal
5000 g |
| ED2201 |
0.1 g |
2200 g |
7.1" X 7.1" |
0.1 g |
0.1 g |
1 |
External
2000 g |
| ED2201-CW |
0.1 g |
2200 g |
7.1" X 7.1" |
0.1 g |
0.1 g |
1 |
Internal
2000 g |
| ED5201 |
0.1 g |
5200 g |
7.1" X 7.1" |
0.1 g |
0.1 g |
1 |
External
5000 g |
| ED5201-CW |
0.1 g |
5200 g |
7.1" X 7.1" |
0.1 g |
0.1 g |
1 |
Internal
5000 g |
| ED8201 |
0.1 g |
8200 g |
7.1" X 7.1" |
0.1 g |
0.1 g |
1 |
External
5000 g |
| ED8201-CW |
0.1 g |
8200 g |
7.1" X 7.1" |
0.1 g |
0.1 g |
1 |
Internal
5000 g |
|
|
Reliable weighing results, all of the time -- even under less than ideal ambient conditions, thanks to the Sartorius Extends highly sophisticated digital compensation algorithms. Sartorius utilizes 21st century technology, such as their unique robotically etched monolithic weigh cell, which ensures long-term, high accuracy and minimizes the effects of temperature drift. It provides the legendary dependability that users the world over have come to appreciate in a genuine Sartorius lab balance. Also, the novel housing finish of the Extend balances are made to withstand many aggressive solvents, such as acetone and ethanol.
|
|
The latest, most powerful microprocessor technology..
The Sartorius Extend series laboratory balances features the latest powerful microprocessor technology, dramatically shortening the response times for faster results than most basic or standard level balances |
|
|
The difference is... Ease of Use
Fast cleaning and rugged design: The side doors, top sliding door and all stainless steel parts of the analytical draft shield chamber are easy to remove for convenient and thorough cleaning.
User-friendly operation: Short, plain-English text prompts and cursor keys for navigation make it simple for you to configure the balance to meet your individual requirements
The level indicator is positioned conveniently right next to the display so that checking whether the balance is level becomes "second nature" to the operator. Whats more, all keys feature positive click action.
|
|
Outstanding readouts, thanks to the backlit, high contrast display. Digits are 15 mm high.
The new Sartorius Extend Series Lab Balances: the solution to eliminate complicated and tedious routines.
When you need to get a heavy workload of repetitive applications done fast and reliably, day in and day out, the last thing you need is a lab balance so complicated that it causes operating errors and wastes your valuable time as a result.
Welcome to your new Extend balance comfort zone: a simple, easy to understand control panel, key function assignments and the easy-to-read display are ideal for efficient weighing in your lab. |
|
|
The difference is... the range of features
Add up all the features of the new Sartorius Extend series lab balances and youll find all the advantages that only a genuine Sartorius lab balance can offer; features that pay for themselves, time and again.
|
| The draft shield chamber on the Sartorius Extend series analytical balances provides optimal lighting conditions inside, thanks to its nearly frameless, all-glass design. |
A built-in motorized calibration weight is standard in all precision balances with the -CW suffix and in all analytical balances. This feature ensures maximum weighing accuracy and operating convenience. |
An optional adapter cable enables you to connect a device, such as a computer, to the USB interface port. Plus, an RS-232C port is standard on all Extend lab balances. |
|
|
