Features

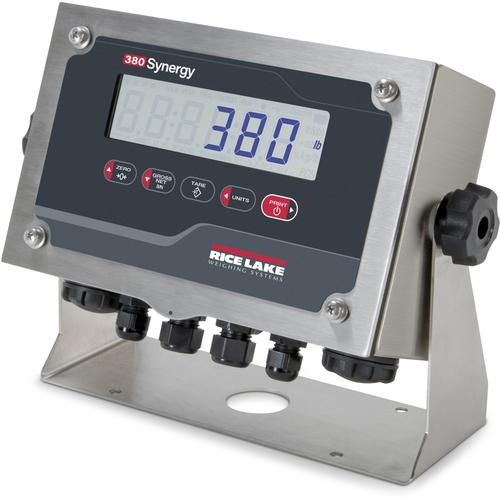

Powerful, Straightforward Operation - Utilize the 380 Synergy Series indicator for straightforward weighing systems including portable warehouse scales, material handling applications and more. The 380 can easily mount almost anywhere, making weight data visible exactly where you need it.
The 380 Synergy is battery powered, providing up to 100 hours of continuous use. A five-button keypad makes operation quick and simple while RS-232 and USB ports make it easy to connect to peripheral equipment.
Configurable print formats allow you to print only the most important information to your application. Optional date/time and external power supply are also available to meet the needs of your application.
Durable Construction A stainless steel, IP66 enclosure means the 380 Synergy is dust-tight and can stand up to high-pressure water. A bright, six-digit LCD display makes weight data easy to see.
- 380 Synergy Series Digital Weight Indicator
- LCD display
- Alkaline battery powered
- Push button and keyed tare
- Two communication ports
- Five tactile buttons
- Configurable print formats
- 304 stainless steel, IP66 rated enclosure
Options
- Time/date
- External power supply
Weight:
11.00 lb
|
2 Year Manufacture Warranty
|
Specifications
MODEL |
380 Synergy 202711 |
Display Type |
LCD |
Display: |
Six 1 in (25 mm) tall, LCD digits |
Legal for Trade |
NTEP CC 21-051, Class III/IIIL, 10,000 d Measurement Canada AM-6184 |
Power |
Batteries: 4 Alkaline C-cell (not included) Optional: 115/230VAC to 12VDC adapter |
Power Consumption |
6 W max with optional external power adapter |
Battery Life |
100 hours on Alkaline batteries with one 350 ohm load cell, no backlight; 45 hours on Alkaline batteries with four 350 ohm load cells, low backlight; 20 hours on Alkaline batteries with eight 350 ohm load cell, low backlight |
Excitation Voltage |
5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells |
Analog Signal Input Range |
-0.3 mV to +30 mV Common Mode Voltage 0.7V to 3.3V |
Analog Signal Sensitivity |
1 µV/graduation recommended |
A/D Sample Rate |
5, 6, 10, 12, 20, 25, 40, 50, 80, 100Hz, software selectable |
Resolution |
Internal: 8,000,000 counts Display: 100,000 |
System Linearity |
Within 0.01% full scale |
Communication Ports |
One RS-232 (three-wire) One USB 2.0 |
Annunciators |
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net |
Display |
Six 1 in (25 mm) tall, LCD digits |
Keys/Buttons |
5 tactile buttons |
Dimensions |
(L × W × H) 11.58 × 8.57 × 4.05 in (30 × 22 × 10 cm) |
Temperature Range |
Certified: 14 °F to 104 °F (-10 °C to 40 °C) Industrial: 14 °F to 122 °F (-10 °C to 50 °C) |
Rating/Material |
IP66, 304 Stainless steel |
Weight |
6.25 lb (3 kg) |
Warranty |
Two-year limited |
EMC Immunity |
10 V/m |
Approvals: |
NTEP CC 21-051, Class III/IIIL, 10,000 d Measurement Canada AM-6184 cULus CE marked |
|
