Features

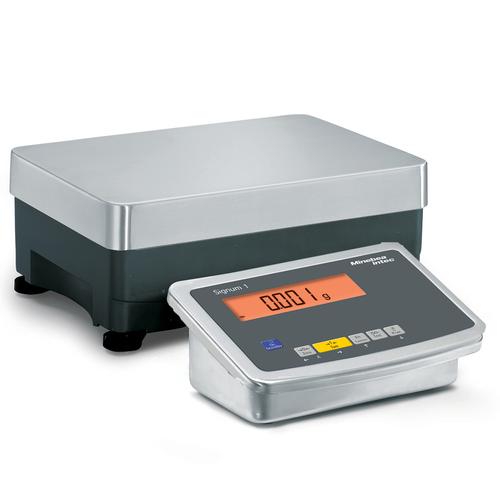

Signum compact industrial scale series has a choice of three powerful technologies, each with a different level of performance: The standard weighing system in Signum Regular models enables resolutions of up to 35,000d; Signum Advanced models feature a mechatronic weighing system with resolutions of up to 65,000d, and Signum Supreme models are equipped with a monolithic weigh cell for resolutions of up to 350,000d. Signum offers users a premium scale that is remarkably easy to use and offers a broad range of options for adaptation to specific customer needs.
| Model |
SIWRDCP-V6 |
SIWRDCP-V7 |
SIWRDCP-V8 |
SIWRDCP-V9 |
SIWRDCP-V10 |
SIWRDCP-V11 |
SIWRDCP-V12 |
SIWRDCP-V13 |
SIWRDCP-V14 |
SIWRDCP-V15 |
| Capacity |
3 kg |
6 kg |
15 kg |
35 kg |
60 kg |
6 kg |
6 kg |
15 kg |
35 kg |
60 kg |
| Readability |
0.1 g |
0.2 g |
0.5 g |
1.0 g |
2.0 g |
0.2 g |
1.0 g |
0.5 g |
1.0 g |
2.0 g |
| Repeatability |
0.2 g |
1 g |
2 g |
0.2 g |
1 g |
2 g |
| Linearity |
0.3 g |
0.4 g |
0.8 g |
1.5 g |
3 g |
0.4 g |
0.8 g |
1.5 g |
3 g |
| Weighing Modes |
Carats,Grains,Milligrams,Pounds,Ounces,Pennyweight,Grams,Troy Ounces,KiloGrams |
| Weigh Cell |
Strain Gauge |
| Standard Features |
Basic Weighing, RS232 interface, Underhook |
| Indicator/Platform Material |
Die-Cast Aluminum - (AISI304)
(Stands up to most citrus applications) |
| Indicator Cable Length |
3 meters (coiled in unit's base) |
| Operating Temperature |
-10°C to 40°C (14°F to 104°F) |
| External Calibration |
Requires 2,000 g Cal. Weight |
Requires 5,000 g Cal. Weight |
Requires 10,000 g Cal. Weight |
Requires 20,000 g Cal. Weight |
Requires 5,000 g Cal. Weight |

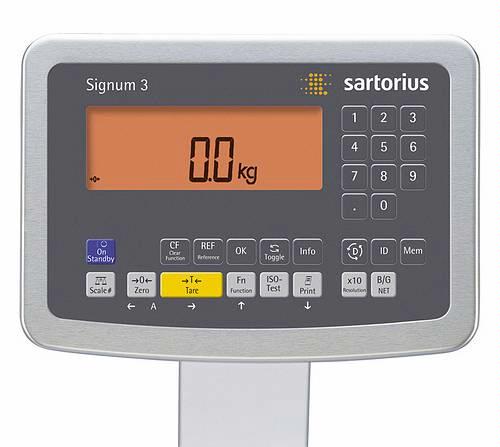

| Display Type |
Backlit Liquid Crystal Display with 14 Segments |
| Power |
AC Powered Only |
| Platform Size |
12.6" x 9.4" |
Dimensions
(W x D) |
16.4" x 5.2" |
| Protection Rating |
IP65 |
| Functions |
Zero, Tare |
Zero, Tare, Counting, Checkweighing, Classification, Averaging(animal weighing), Totalizing, Neutral Measurement, % Weighing, Formulation |
| Level |
Weigh Only Level 1 |
Applications Level 2 |
Application Levels and Their Capabilities
| Level Capabilities |
Level 1 |
Level 2 |
Level 3 |
| Keypad |
6 Keys |
14 Keys |
17 Keys |
| Display |
14 Segments |
14 segments plus application symbols |
14 segments plus application symbols |
| Weighing |
Yes |
Yes |
Yes |
| Averaging |
N/A |
Yes |
Yes |
| Reference Scale Connection |
N/A |
Yes |
Yes |
| Counting |
N/A |
Yes |
Yes |
| Totalizing |
N/A |
Yes |
Yes |
| Checkweighing |
N/A |
Yes |
Yes |
| Product Data Memory |
N/A |
N/A |
Yes |
| Date/Time |
N/A |
Option A31 |
Option A31 |
| SQ min (min sample qty) |
Yes |
Yes |
Yes |
ID Codes
(4x40 characters) |
N/A |
N/A |
Yes |
