Mark 10 COF-K1 G1086 Coefficient of Friction Fixture with M5-2-COF Gauge Kit
The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the included M5-2-COF gauge more ...
The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the included M5-2-COF gauge.

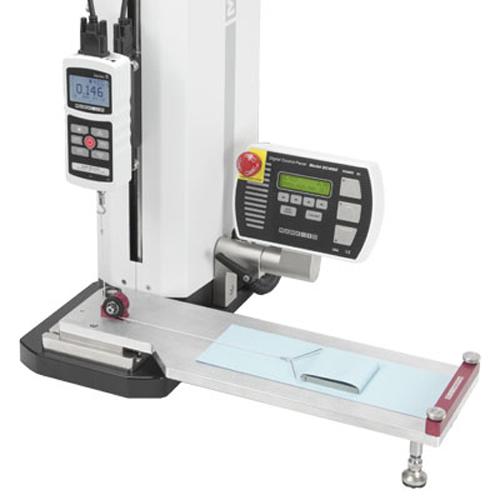

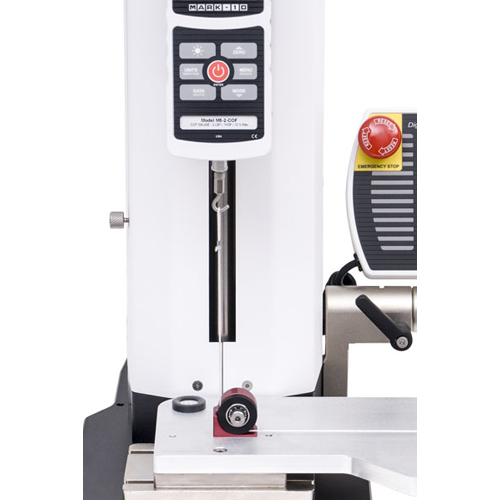

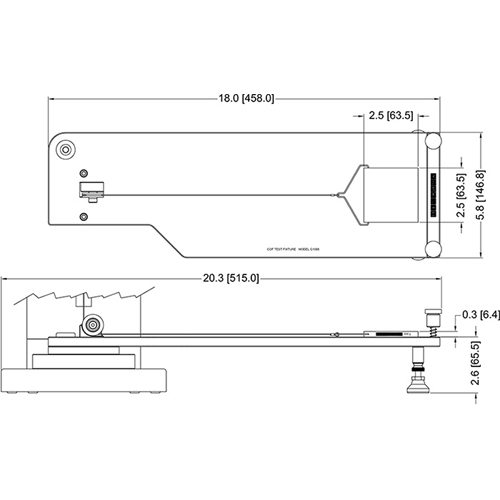

The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge, ESM303 test stand, and ESM301 motorized test stand.
FEATURES
Table surface material: 6061 T6 aluminum
Sled material: 303 SS
Maximum sled travel: 10.5 in (265 mm)
Mounts directly to the ESM303 and ESM301 motorized test stand
M5-2-COF GAUGE IS INCLUDED!

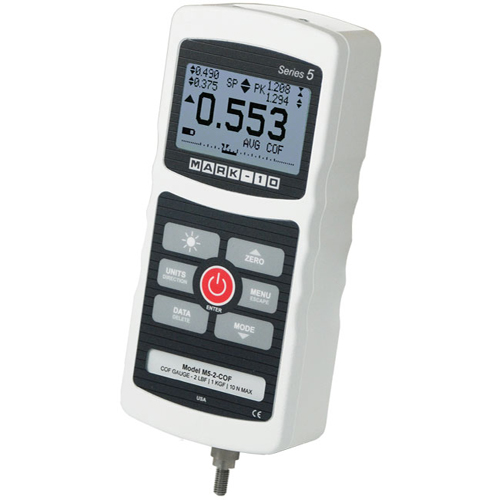

The M5-2-COF coefficient of friction (COF) gauge is an integral part of a COF testing system, typically including a motorized test stand and COF fixture. With a capacity of 2 lbF [10 N], the gauge can be used to measure friction for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients are displayed on the backlit LCD, and are calculated from a user-programmable sled weight.
Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. Configurable password protects against unauthorized changes to settings.
The M5-2-COF may also be used for a number of common tension and compression testing applications. The gauge is based on Mark-10s Series 5 advanced digital force gauges, and includes the series full set of functions and settings.
The M5-2-COF includes MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data saved in the gauges memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.
FEATURES
Calculates static and kinetic coefficients of friction
Configurable sled weight (100 - 1000 g)
USB, RS-232, Mitutoyo, and analog outputs
1,000-point data memory with statistics and outputs
Programmable set points, with indicators and outputs
Live load bar graph with set point markers
Configurable audio alarms and key tones
Password protection, configurable for individual keys and calibration
Fixture + Gauge Kit is available
Dimensions X:20.00Y:16.00Z:8.00 Weight:18.00 lb
Other Mark 10 M5-2-COF Coefficient Of Friction Gauge
5 x 0.001 COF*, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF,
1000 x 0.2 gF, 10 x 0.002 N
Accuracy
±0.1% of full scale
Sampling rate
7,000 Hz
Power
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life
Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Outputs
USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ± 1 VDC, ± 0.25% of full scale at capacity General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Safe overload
150% of full scale (display shows "OVER" at 110% and above)
Weight
1.0 lb [0.45 kg]
Included items:
Carrying case with hook, chisel, cone, V-groove, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge DEMO software, and users guide), and NIST-traceable certificate of calibration with data.
Warranty
3 years (see individual statement for further details)
* Depends on the sled weight. For a 200 g weight, the COF capacity is 5. COF resolution is fixed at 0.001.
