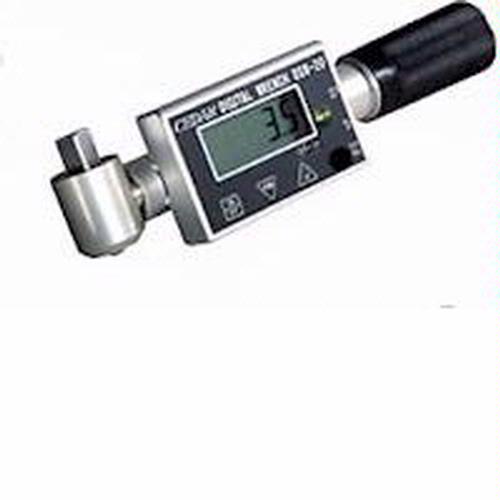

Imada DSW-20 Torque Tester / Torque Wrench, 3.0 – 180.0 lbf-in

• Ergonomic and light weight, yet ruggedly constructed
• Wrench head swivels 300°
• Available in: lbf-in, kgf-cm, and N-m (specify units when ordering)
• Peak, Real Time and Peak Down measuring mode (selectable)
• 400 data memory for recall or for SPC download
• Programmable High and Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
• Programmable screw tightening counter
• Programmable Auto Zero function resets unit to zero for easy operation
• CW and CCW operation
• RS-232 output for SPC capability (peak data only)
• Runs on internal NiCad batteries (for 8 hours) Auto shut-off after 10 min. of non-use
• CW stepless one-way clutch adapter, AC charger and carrying case included.

Imada DSW-series extremely lightweight digital torque wrenches that tighten or loosen bolts up to 130 or 180 lbf-in. The wrench head swivels 300° and can be used in tight places. You’ll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can be evaluated by comparative tests on sample fasteners. Both breakaway and loosen tests can be performed. Rugged enough to be used in production.

Imada DSW-series digital torque wrenches have an accuracy of ±0.5%, ± 1 LSD and offer a programmable setpoint for uniform tightening or Go/No Go testing. Peak data for SPC (statistical process control) can be downloaded via the RS232 port.

DSW Ranges (Accuracy: +/-0.5% F.S. ±1 LSD
