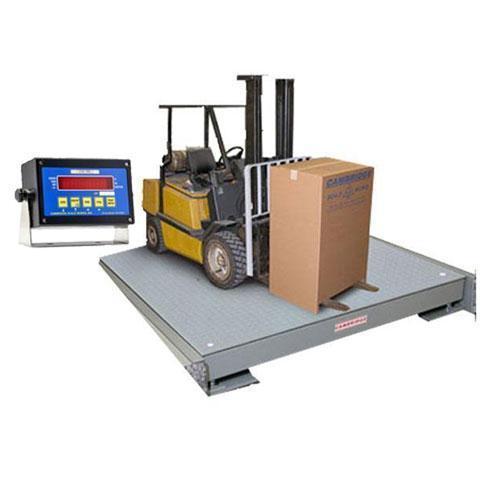

Cambridge Model 660 Classic HD 72 x 96 x 6 Floor Scale 20000 X 2 lb |
|
| Underside view of the 660 - Classic - HD showing the cross strutted tubular steel construction. This design, coupled with a 3/8" thick diamond steel deck plate, make this scale a true heavy weight able to handle the unique loading characteristics of towmotor traffic. This kit comes with the Cambridge CSW-10AT Digital Weight Indicator. more ... |
|
Industrial Scales >
Floor Scales >
10001 lb and up
|
Note: This product can only be shipped Ground Delivery.
|
|
This Item Contains the following items
|
|
|
|
|
Features
Stainless Steem NEMA 4x junction box shown with top access plated removed. Top access simplified periodic adjustments.
Each load cell is pocketed in the frame of the scale protecting both the load cell and wiring. Cambridge CSW-10AT Digital Weight Indicator
STANDARD FEATURES
- 10,000 through 40,000 Lb capacities
- Cross strutted structural tubular steel construction.
- 3/8 inch thick diamond steel deck plate.
- Four internally mounted, IP 67 rated water resistant load cells.
- Polycarbonate NEMA 4x junction trim box.
- Top access junction box and leveling feet.
- Self checking, captive ball leveling feet.
- 20 foot shielded indicator cable.
- Eye bolt holes for easy setup and moving.
CSW-10AT Digital Weight Indicator
- Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Push-button Controls
- LED Display (Bright)
- Printer Data Output on Demand
- 9 Pin Load Cell Connection
- Simple No-Soldering Load Cell Connection
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization 1 to 5 points of Digital Calibration available
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- AC Adapter Provided
- Auto Zero Tracking
- Adjustable Motion Detection
- ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand
Dimensions
X:
72.00
Y:
96.00
Z:
6.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale Model 660 Classic HD
|
Specifications
| Model |
Size (Inch) |
Capacity |
Legal For Trade |
| 660HD484861 |
48 x 48 x 6 |
10,000 x 2 lb |
YES cc# 96-157A1 |
| 660HD484862 |
48 x 48 x 6 |
20,000 x 4 lb |
YES cc# 96-157A1 |
| 660HD484863 |
48 x 48 x 7 |
30,000 x 3 lb |
- |
| 660HD484864 |
48 x 48 x 7 |
40,000 LB. |
- |
660HD487261 |
48 x 72 x 6 |
10,000 x 4 lb |
YES cc# 96-157A1 |
| 660HD487262 |
48 x 72 x 6 |
40,000 x 4 lb |
YES cc# 96-157A1 |
| 660HD487263 |
48 x 72 x 7
| 30000 x 4 lb |
- |
| 660HD487264 |
48 x 72 x 7
| 40000 x 4 lb |
- |
| 660HD606061 |
60 x 60 x 6
| 10,000 LB. |
YES cc# 96-157A1 |
| 660HD606062 |
60 x 60 x 6
| 20,000 LB. |
YES cc# 96-157A1 |
| 660HD606063 |
60 x 60 x 7
| 30,000 LB. |
- |
| 660HD606064 |
60 x 60 x 7
| 40,000 LB. |
- |
| 660HD608461 |
60 x 84 x 6
| 10,000 LB. |
YES cc# 96-157A1 |
| 660HD608462 |
60 x 84 x 6
| 20,000 LB. |
YES cc# 96-157A1 |
| 660HD608463 |
60 x 84 x 7
| 30,000 LB. |
- |
| 660HD608464 |
60 x 84 x 7
| 40,000 LB. |
- |
| 660HD609661 |
60 x 96 x 6
| 10,000 LB. |
YES cc# 96-157A1 |
| 660HD609662 |
60 x 96 x 6
| 20,000 LB. |
YES cc# 96-157A1 |
| 660HD609663 |
60 x 96 x 7
| 30,000 LB. |
- |
| 660HD609664 |
60 x 96 x 7
| 40,000 LB. |
- |
| 660HD601263 |
60 x 120 x 7
| 30,000 LB. |
- |
| 660HD601264 |
60 x 120 x 7
| 40,000 LB. |
- |
| 660HD727261 |
72 x 72 x 6
| 10,000 LB. |
- |
| 660HD727262 |
72 x 72 x 6
| 20,000 LB. |
- |
660HD727263 |
72 x 72 x 7
| 30,000 LB. |
- |
| 660HD727264 |
72 x 72 x 7
| 40,000 LB. |
- |
660HD729662 |
72 x 96 x 6
| 20,000 LB. |
- |
660HD729663 |
72 x 96 x 7
| 30,000 LB. |
- |
| 660HD729664 |
72 x 96 x 7
| 40,000 LB. |
- |
660HD721263 |
72 x 120 x 7
| 30,000 LB. |
- |
| 660HD721264 |
72 x 120 x 7
| 40,000 LB. |
- |
|
|
|
|
|
|
|
