AND Weighing FG-30KAMN Platform Scale Legal for Trade 60 x 0.02 lb |
|
| Flexible internal software settings, AC or battery operation, stainless steel pan and moisture protected load cell, optional RS232, weighs in lbs/kgs. more ... |
|
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
|
|
Features

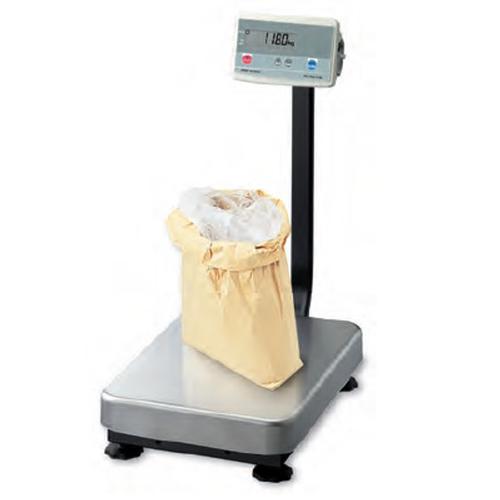

The new A&D Weighing FG-K Series industrial bench scales combines fast weighing response time with accurate measurement to suit any weighing application.
- Three Weighing Fesolutions: Normal (1/3000), High (1/6000 for 30 kg & 60 kg weighing capacity) and higher resolution (1/12000 for 60 kg and 1/15000 for 30 kg and 150 kg weighing capacity).
- Counting Function: Useful in piece counting applications with sample size of 5, 10, 20, 50 and 100 pieces for unit weight registration.
- Comparator Function: HI / OK / LO comparator indication and optional relay output (FG-24) for checkweighing applications
- Calibration Function: Simple calibration with external calibration weight
- Auto Power Off function: Saves power consumption by automatically switching itself off when the scale displays zero for approximately 5 minutes
- Low Power Supply Indication: Alerts user to check AC power supply "L1" or batteries "Lb0"
- Filtering Function: Filtering levels of slow, normal and fast are selectable to suit environmental conditions
- Leveling Feet and Bubble: Easy to adjust the level of the scale for accurate weighing
- Optional RS-232C and Comparator Output: Easy to connect peripherals such as printer, comparator light and computer for weighing system applications.
- AC or battery operation
- Stainless steel weigh pan
- Selection of lb / kg via push button
- Full scale push button tare
- Easy to operate anywhere
- Rugged, heavy duty construction -- built to last
- 2 year manufacturers warranty
- NTEP Approved, Class III Legal for Trade (non-NTEP high resolution models available, see below)
NTEP Class III Models:
| Model |
Description |
Includes Column |
Platform Size |
Price |
| FG-30KBMN |
60 x 0.02 lb / 30 x 0.01 kg |
no |
11.8 x 16 inches |
$505 |
| FG-60KBMN |
150 x 0.05 lb / 60 x 0.02 kg |
no |
11.8 x 16 inches |
$505 |
| FG-150KBMN |
300 x 0.01 lb / 150 x 0.05 kg |
no |
11.8 x 16 inches |
$505 |
| FG-30KAMN |
60 x 0.02 lb / 30 x 0.01 kg |
yes |
11.8 x 16 inches |
$565 |
| FG-60KAMN |
150 x 0.05 lb / 60 x 0.02 kg |
yes |
11.8 x 16 inches |
$565 |
| FG-150KAMN |
300 x 0.1 lb / 150 x 0.05 kg |
yes |
11.8 x 16 inches |
$565 |
| FG-60KALN |
150 x 0.05 lb / 60 x 0.02 kg |
yes |
15.4 x 20.9 inches |
$635 |
| FG-150KALN |
300 x 0.1 lb / 150 x 0.05 kg |
yes |
15.4 x 20.9 inches |
$635 |
| FG-200KALN |
400 x 0.1 lb / 200 x 0.05 kg |
yes |
15.4 x 20.9 inches |
$635 |
Non-NTEP High Resolution Models:
| Model |
Description |
Includes Column |
Platform Size |
Price |
| FG-30KBM |
60 x 0.005 lb / 30 x 0.002 kg |
no |
11.8 x 16 inches |
$505 |
| FG-60KBM |
150 x 0.01 lb / 60 x 0.005 kg |
no |
11.8 x 16 inches |
$505 |
| FG-150KBM |
300 x 0.02 lb / 150 x 0.01 kg |
no |
11.8 x 16 inches |
$505 |
| FG-30KAM |
60 x 0.005 lb / 30 x 0.002 kg |
yes |
11.8 x 16 inches |
$565 |
| FG-60KAM |
150 x 0.01 lb / 60 x 0.005 kg |
yes |
11.8 x 16 inches |
$565 |
| FG-150KAM |
300 x 0.2 lb / 150 x 0.01 kg |
yes |
11.8 x 16 inches |
$565 |
| FG-60KAL |
150 x 0.01 lb / 60 x 0.005 kg |
yes |
15.4 x 20.9 inches |
$635 |
| FG-150KAL |
300 x 0.2 lb / 150 x 0.01 kg |
yes |
15.4 x 20.9 inches |
$635 |
| FG-200KAL |
400 x 0.2 lb / 200 x 0.01 kg |
yes |
15.4 x 20.9 inches |
$635 |
| |
FG-30KAM
FG-30KBM |
FG-60KAM
FG-60KBM |
FG-150KAM
FG-150KBM |
FG-60KAL |
FG-150KAL |
| Number of samples |
(can be changed to 10, 20, 50 or 100 ) pieces |
| Max. counts |
120,000 pcs |
96,000 pcs |
120,000 pcs |
96,000 pcs |
120,000 pcs |
| Min. unit weight |
0.25 g |
0.625 g |
1.25 g |
0.625 g |
1.25 g |
| Repeatability (Std. deviation) |
0.05 kg |
0.01k g |
0.02 kg |
0.01 kg |
0.02 kg |
| Linearity error |
0.01 kg |
0.02 kg |
0.05 kg |
0.02 kg |
0.05k g |
| Sensitivity drift |
20 ppm /C (10 °C~30 °C / 50 °F~86 °F) |
| Display |
7 segment LCD display (Character height 26 mm) |
| Display update |
10 times per second |
| Operating temp |
-10 °C~40 °C / 14 °F~104 °F, less than 85% RH (no condensation) |
| Power supply |
AC adapter or C size (R14P / LR14) x 4 batteries |
| Battery operating |
Approximately 150 hours with alkaline dry cell battery |
| Weighing pan size |
300 x 380 mm / 11.8 x 15.0 inches |
390 x 530 mm / 15.4 x 20.9 inches |
| Dimension |
FG-KAM: 300(W) x 624(D) x 781(H) mm
FG-KBM: 380(W) x 464(D) x 118(H) mm |
390(W) x 771(D) x 781(H) mm |
| Weight (approximately) |
FG-KAM: 11.2 kg / FG-KBM: 9.7 kg |
16.4 kg |
| Calibration weight (Factory setting) |
30 kg / 60 lb |
60 kg / 150 lb |
150 kg / 300 lb |
60 kg / 150 lb |
150 kg / 300 lb |
|
|
Other AND Weighing Weighing FG-K Platform Scales -NTEP Class III
|
|
| |
|
|
|
|
|
Optional Accessories
more info
|
AND Weighing FV-05 AC Adaptor, 110V
110V AC adaptor for AND Weighing FG-K series platform scales
|
|
more info
|
AND Weighing FG-23 RS-232C Interface for FG-K Series Scales
AND Weighing FG-23 RS-232C Interface for FGK Series Scales
|
|
more info
|
AND Weighing FG-24 Comparator/Setpoint Relay Outputs
Comparator/Setpoint relay outputs for AND Weighing FG-K series platform scales
|
|
more info
|
AND Weighing FG-25 Display Wall Mount Bracket
Display wall mount bracket for AND Weighing FG-K series platform scales
|
|
more info
|
AND Weighing KO:WW9-7 : RS-232C Cable D-Sub 9 pin
A&D part # KO:WW9/7 - RS-232C Cable to D-Sub 9 pin. Cable length 6 feet. Fits the following A&D models: FS, FG, HV, HV-G, HW-G, HV-WP, HW-WP, Ad-4326, AD-4327
Note - ANDs user manual might reference the serial RS232 cable part number AX-KO1786-200 for the FG bench scale as "FG to D-Sub 9 pin computer / RS-232C cable, 2m" but AND Weighing USA uses part number KO:WW9/7 instead of AX-KO1786-200
|
|
more info
|
AND Weighing FV-06 AC Adaptor, 220V
AND Weighing FV-06 AC Adaptor, 220V
|
|
|
|
|
|
|
|
|
