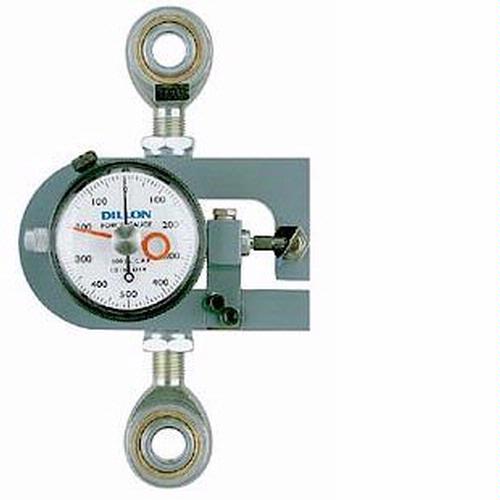

Dillon 30796-0021 X-PP Push Pull Gauge, 50-0-50 x 1 kg

Proven accuracy & ruggedness sets the Dillon X-C compression, X-ST tension, and X-PP push pull mechanical force gauges apart. Highly engineered materials, close machining tolerances and proper heat treatment provide optimum strength/spring characteristics more ...
Scales > Force Gauge > Push pull Gauge
Dillon 30796-0021 X-PP Push Pull Gauge, 50-0-50 x 1 kg

View Full Detail Page


Call for more info
Download PDF
Dillon 30796-0021 X-PP Push Pull Gauge, 50-0-50 x 1 kg
FREE Ground Shipping
(48 US States Only)

We offer Discounts
On All
Dillon X-PP Push Pull Force Gauges
For a Best Price Please
Call Us (800)832-0055 or Email Us


Price: $1,455.00

Price: $1,455.00


In Stock - Ships within 24 hours

Optional Accessories

View Features

Dillon
SKU: 30796-0021

Features

The Dillon X-PP compression / tension calibration push pull gauge comes in 7 capacities in pounds ranging from 50-0-50 lb up to and including 5000-0-5000 lb and 4 metric capacities from 50-0-50 to 1000-0-1000 kg. Accuracy is ±1% of maximum dial reading (based on total capacity of both compression and tension scales).

Dillon X-pp gauges in capacities up to and including 1000-0-1000 lb or 500-0-500 kg are supplied with a set of self-aligning spherical rod end connectors for tension loading. Force is applied to connectors through a hardened steel pin which must be slip fit in connector holes.

2500-0-2500 and 5000-0-5000 lb and 1000-0-1000 kg capacity gauges are equipped with two shackle adapters, shackles and pins. Shackles must be removed when compression load is involved. Force is then applied against shackle pins in a suitable test setup.

The Dillon X-ST tension gauge comes with force gauge assembly, carrying case, compression loading spherical ball fitting for compression loading and tension hardware.

Pound Versions
Model
Capacity & Dial Divisions
30795-0014
50-0-50 x 1
30796-0013
125-0-125 x 2.5 lb
30797-0012
250-0-250 x 5 lb
30798-0011
500-0-500 x 10 lb
30799-0010
1000-0-1000 x 20 lb
30800-00017
2500-0-2500 x 50 lb
30801-0016
5000-0-5000 x 100 lb
Kilogram Versions
Model
Capacity & Dial Divisions
30796-0021
50-0-50 x 1 kg
30797-0020
125-0-125 x 2.5 kg
30798-0029
250-0-250 x 5 lb
30800-0025
1000-0-1000 x 20 kg


Weight: 15.00 lb
Other Dillon X-PP Push Pull Gauge

30795-0014
X-PP Push Pull Gauge
50-0-50 x 1 lb

$1,455.00

30796-0013
X-PP Push Pull Gauge
125-0-125 x 2.5 lb

$1,455.00

30796-0021
X-PP Push Pull Gauge
50-0-50 x 1 kg

$1,455.00

You are viewing this product

30798-0011
X-PP Push Pull Gauge
500-0-500 x 10 lb

$1,685.00

30798-0029
X-PP Push Pull Gauge
250-0-250 x 5 kg

$1,685.00

30800-0017
X-PP Push Pull Gauge
2500-0-2500 x 50 lb

$2,530.00

30800-0025
X-PP Push Pull Gauge
1000-0-1000 x 20 kg

$2,530.00

* within the 48 continental US States


Optional Accessories


Dillon Maximum Reading Pointer for X-Series Force Gauges
more info
Dillon Maximum Reading Pointer for X-Series Force Gauges
more info
Price: $140.00
In Stock
btn buy
Maximum reading pointer for Dillon X series force gauges
Dillon Shockless Dial Indicator for X-Series Force Gauges
more info
Dillon Shockless Dial Indicator for X-Series Force Gauges
more info
Price: $102.00
In Stock
btn buy
Shockless Dial Indicator for Dillon X-Series Force Gauges (cannot be used with maximum reading pointer)
