Features
The BenchMark LP low-profile bench scale offers an overall height of just two-to-three inches. The more subtle presence of the LP is an attractive option for commercial situations, or other areas in need of a less obtrusive platform. Gain the same accuracy and performance as our standard benchmark models in a more refined and inconspicuous package.

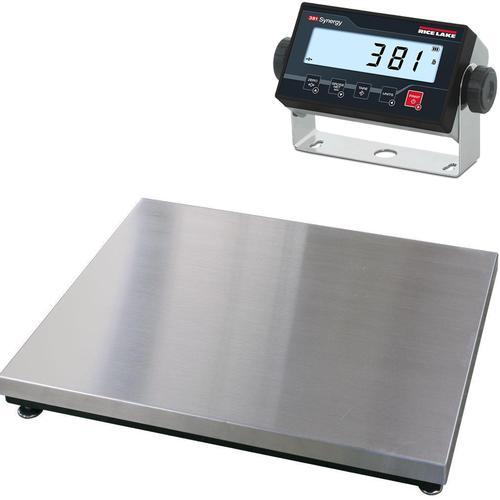

RoughDeck® low-profile, bench Scale System with 381-Synergy Indicator
- Package includes: BenchMark HP LP low-profile bench scale, 20 ft of EL147 load cell cable, Two-year limited warranty
- Package is factory-calibrated for 5,000 divisions
Scale
- Mild steel base construction
- 304 stainless steel cover
- ABS junction box
- Four planar beam load cells
- Adjustable leveling feet
- 20 ft of EL147 load cell cable
- Holes in lower frame for mounting scale without adjustable leveling feet
381 Synergy Indicator
- LCD display
- Battery powered
- Push-button and keyed tare
- Two communication ports
- Five tactile buttons
- Configurable print formats
- ABS enclosure
Performance Meets Economy The 381 Synergy Series digital weight indicator is designed to provide reliable operation of straightforward weighing systems, including material handling and warehouse scales. The LCD weight display is clearly visible to operators, allowing the 381 Synergy to be mounted almost anywhere. A five-button keypad simplifies operation, and RS-232 and USB ports provide connection to peripheral equipment.
Reliable Battery-backed Performance
The 381 Synergy has an ABS plastic enclosure with two different battery options, enabling you to create the ideal portable weighing solution for your operations. The AA battery-operated model provides up to 40 hours of operation and has an IP54 rating. The Nickel Metal Hydride (NiMH) battery-operated model provides up to 80 hours of operation with an IP66 rating. Both battery versions have an optional external power adapter.
Indicator
- LCD display
- Battery powered
- Push-button and keyed tare
- Two communication ports
- Five tactile buttons
- Configurable print formats
- ABS enclosure
|
2 Year Manufacture Warranty
|
Specifications
| Model |
97662-381 |
97663-381 |
97664-381 |
97665-381 |
97666-381 |
97667-381 |
| Capacity X Readability |
100 x 0.02 lb
50 x 0.01 kg |
250 x 0.05 lb
125 x 0.02 kg |
500 x 0.1 lb
250 x 0.05 kg |
100 x 0.02 lb
50 x 0.01 kg |
250 x 0.05 lb
125 x 0.02 kg |
500 x 0.1 lb
250 x 0.05 kg |
| Pan Size |
18 x 18 inch |
18 x 18 inch |
18 x 18 inch |
24 x 24 inch |
24 x 24 inch |
24 x 24 inch |
| Legal For Trade |
YES |
YES |
YES |
YES |
YES |
YES |
| Legal For Trade |
Base: NTEP CC 08-017, Class III 5,000 d - Measurement Canada AM 5660
Indicator: NTEP CC 21-051 Class III/IIIL, 10,000 d - Measurement Canada AM-6184 |
| Power |
AA Alkaline (40 hours) |
| Load Cell |
Base: IP65 aluminum, Indicator: IP54 ABS |
| End Load Capacity |
60% of full scale capacity |
| Cable Length |
20 ft (6.1 m) for connecting junction box to indicator |
| Scale Frame |
Mild steel powder coated black |
| Scale Cover |
AISI304L, straight line finish, Ra=45 +/- 10 |
| Load Cell, Rated Output |
IP65 aluminum, 1.0 mV/V ±10% |
| Dimensions L x W x H1 (H2) |
18 x 18 × 2.63 in (1.67 in*) |
18 x 18 × 2.50 in (1.74 in*) |
18 x 18 × 2.69 in (1.93 in*) |
24 × 24 × 2.66 in (1.69 in*) |
24 × 24 × 2.83 in (2.07 in* |
24 × 24 × 3.02 in (2.26 in*) |
| Indicator Model |
381 Synergy (215695) |
| A/D Sample Rate |
5, 6, 10, 12, 20, 25, 40, 50, 80, 100Hz, software selectable |
| Communication Ports |
One RS-232 (three-wire)
One USB 2.0 |
| Annunciators |
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net |
| Display |
Operating Temp. 32° to 100°F (0° to 40°C) |
| Keys/Buttons |
5 tactile buttons |
| Dimensions (L × W × H) |
8.50 × 3.17 × 5.06 in
(215.8 × 80.5 × 128.5 mm) |
| Keys/Buttons |
5 tactile buttons |
| Temperature Range |
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C) |
| Warranty |
Two-year limited |
*Height without adjustable leveling feet
| Model |
97668-381 |
97669-381 |
97670-381 |
97671-381 |
| Capacity |
500 x 0.1 lb
250 x 0.05 kg |
1000 x 0.2 lb
500 x 0.1 kg |
500 x 0.1 lb
250 x 0.05 kg |
1000 x 0.2 lb
500 x 0.1 kg |
| Pan Size |
30 x 30 inch |
30 x 30 inch |
36 x 36 inch |
36 x 36 inch |
| Legal For Trade |
YES |
NO |
YES |
NO |
| Legal For Trade |
Base: NTEP CC 08-017, Class III 5,000 d - Measurement Canada AM 5660
Indicator: NTEP CC 21-051 Class III/IIIL, 10,000 d - Measurement Canada AM-6184 |
| Power |
AA Alkaline (40 hours) |
| Load Cell |
Base: IP65 aluminum, Indicator: IP54 ABS |
| End Load Capacity |
60% of full scale capacity |
| Cable Length |
20 ft (6.1 m) for connecting junction box to indicator |
| Scale Frame |
Mild steel powder coated black |
| Scale Cover |
AISI304L, straight line finish, Ra=45 +/- 10 |
| Load Cell, Rated Output |
IP65 aluminum, 1.0 mV/V ±10% |
| Dimensions L x W x H1 (H2) |
30 × 30 × 3.02 in (2.26 in*) |
30 × 30 × 3.47 in (2.70 in*) |
36 × 36 × 3.02 in (2.26 in*) |
36 × 36 × 3.47 in (2.70 in*) |
| Indicator Model |
381 Synergy (215695) |
| A/D Sample Rate |
5, 6, 10, 12, 20, 25, 40, 50, 80, 100Hz, software selectable |
| Communication Ports |
One RS-232 (three-wire)
One USB 2.0 |
| Annunciators |
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net |
| Display |
Operating Temp. 32° to 100°F (0° to 40°C) |
| Keys/Buttons |
5 tactile buttons |
| Dimensions (L × W × H) |
8.50 × 3.17 × 5.06 in
(215.8 × 80.5 × 128.5 mm) |
| Keys/Buttons |
5 tactile buttons |
| Temperature Range |
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C) |
| Warranty |
Two-year limited |
*Height without adjustable leveling feet
|
)
)
)
