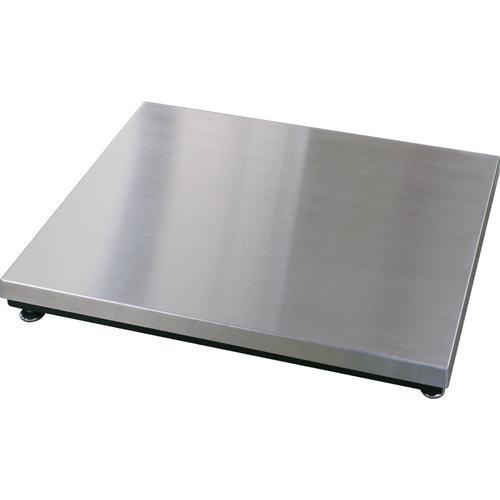

Rice Lake 97665 LP Benchmark Low-Profile 24 x 24 inch - Legal for Trade - Base Only - 100 lb |
|
| The BenchMark LP low-profile bench scale offers an overall height of just two-to-three inches. The more subtle presence of the LP is an attractive option for commercial situations, or other areas in need of a less obtrusive platform. Gain the same accuracy and performance as our standard benchmark models in a more refined and inconspicuous package. more ... |
|
Industrial Scales >
Scale Bases No Indicator >
Bench Bases
|
|
|
|
|
|
Features
The BenchMark LP low-profile bench scale offers an overall height of just two-to-three inches. The more subtle presence of the LP is an attractive option for commercial situations, or other areas in need of a less obtrusive platform. Gain the same accuracy and performance as our standard benchmark models in a more refined and inconspicuous package.
- Mild steel base construction
- 304 stainless steel cover
- ABS junction box
- Four planar beam load cells
- Adjustable leveling feet
- 20 ft of EL147 load cell cable
- Holes in lower frame for mounting scale without adjustable leveling feet
|
2 Year Manufacture Warranty
|
Other Rice Lake LP Benchmark Low-Profile Scale Bases
|
Specifications
| Model |
97662 |
97663 |
97664 |
97665 |
97666 |
97667 |
97668 |
97669 |
97670 |
97671 |
| Capacity |
100 lb (50 kg) |
250 lb (125 kg) |
500 lb (250 kg) |
100 lb (50 kg) |
250 lb (125 kg) |
500 lb (250 kg) |
500 lb (250 kg) |
1,000 lb (500 kg) |
500 lb (250 kg) |
1,000 lb (500 kg) |
| Pan Size |
18 x 18 inch |
18 x 18 inch |
18 x 18 inch |
24 x 24 inch |
24 x 24 inch |
24 x 24 inch |
30 x 30 inch |
30 x 30 inch |
36 x 36 inch |
36 x 36 inch |
| Legal For Trade |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
NO |
YES |
NO |
| Legal For Trade |
NTEP CC 08-017, Class III 5,000 d
Measurement Canada AM 5660 |
| Load Cell, Rated Output |
IP65 aluminum, 1.0 mV/V ±10% |
| End Load Capacity |
60% of full scale capacity |
| Cable Length |
20 ft (6.1 m) for connecting junction box to indicator |
| Scale Frame |
Mild steel powder coated black |
| Scale Cover |
AISI304L, straight line finish, Ra=45 +/- 10 |
| Warranty |
Two-year limited |
| Load Cell, Rated Output |
IP65 aluminum, 1.0 mV/V ±10% |
| Dimensions L x W x H1 (H2) |
18 x 18 × 2.63 in (1.67 in*) |
18 x 18 × 2.50 in (1.74 in*) |
18 x 18 × 2.69 in (1.93 in*) |
24 × 24 × 2.66 in (1.69 in*) |
24 × 24 × 2.83 in (2.07 in* |
24 × 24 × 3.02 in (2.26 in*) |
30 × 30 × 3.02 in (2.26 in*) |
30 × 30 × 3.47 in (2.70 in*) |
36 × 36 × 3.02 in (2.26 in*) |
36 × 36 × 3.47 in (2.70 in*) |
*Height without adjustable leveling feet
|
|
|
|
|
|
|
