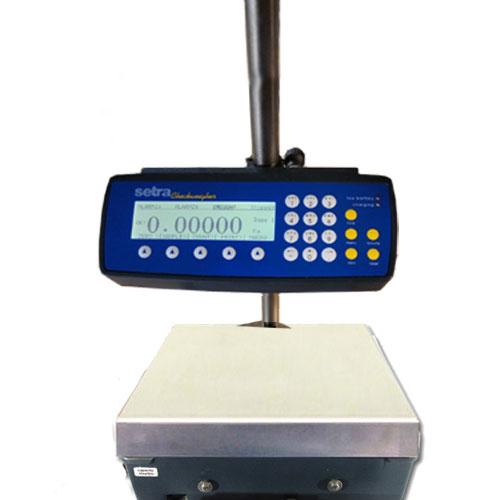

Setra 4091651NB Super II Checkweigher Scale Includes Backlight and Battery Option 27 lb x 0.0005 lb
Setra Systems Industrial Checkweigher is designed in the tradition of all Setra counting scales based on award-winning variable capacitance technology. The Checkweigher is the ideal solution for your inventory control, packaging, quality and material handling applications when high accuracy and resolution are imperative to customer satisfaction and your bottom lin more ...

Industrial Scales > Checkweighing Scales > Dedicated Checkweighing Scales

Setra 4091651NB Super II Checkweigher Scale Includes Backlight and Battery Option 27 lb x 0.0005 lb

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Features

Setra Systems Industrial Checkweigher is designed in the tradition of all Setra counting scales based on award-winning variable capacitance technology. The Checkweigher is the ideal solution for your inventory control, packaging, quality and material handling applications when high accuracy and resolution are imperative to customer satisfaction and your bottom line.

Users simply select a target weight or count for filling operations and the the over/under tolerence. The Checkweigher automatically signals the operator when the load is on target. The intelligently designed user interface provides readable prompts in clear English which guides even the most inexperienced operator through checkweighing tasks.

The Checkweigher offers a full range of capacities and a database that allows long-term storage of up to 1800 part numbers with their associated low, target and high average piece weight. The optional relay box is optically isolatedand provides 3 outputs and 2 digital inputs and the optional light tree provides compact visible indication.

Features

High Accuracy
High Resolution
Prompting Macros
Signals Low, Target, High
Internal Database
Plug and Play
Multiple Base Connectivity
Three RS232 Communic ations Ports
Rugged

Options

Light tree indicating low, target and high.
Adjustable Contoller Column
Optically Isolated Relay Box
Remote Scale Option
Rechargable Battery
Cold Cathode Florescent Backlighting
DYMO Labelwriter Setra 300 Printer
Linear Imager Scanner Gun

The Setra Checkweigher provides accuracy and stability for your quality, packaging, and material handling applications
Weight: 16.00 lb

3 Year Manufacture Warranty

Other Setra Super II Checkweigher Scales with Backlight

4091631NN Super II Checkweigher Scale Includes Backlight 11 lb x 0.0002 lb $3,588.18	4091651NN Super II Checkweigher Scale Includes Backlight 27 lb x 0.0005 lb $3,588.18	4091661NN Super II Checkweigher Scale Includes Backlight 35 lb x 0.0005 lb $3,588.18	4091671NN Super II Checkweigher Scale Includes Backlight 55 lb x 0.001 lb $3,588.18	4091681NN Super II Checkweigher Scale Includes Backlight 65 lb x 0.001 lb $3,588.18
4091691NN Super II Checkweigher Scale Includes Backlight 110 lb x 0.002 lb $3,588.18	4091621NN Super II Checkweigher Scale Includes Backlight 4.4 x 0.00005 lb $3,588.18	4091661NB Super II Checkweigher Scale Includes Backlight and Battery Option 35 lb x 0.0005 lb $4,055.63	4091691NB Super II Checkweigher Scale Includes Backlight and Battery Option 110 x 0.002 lb $4,055.63	4091681NB Super II Checkweigher Scale Includes Backlight and Battery Option 65 lb x 0.001 lb $4,055.63
4091671NB Super II Checkweigher Scale Includes Backlight and Battery Option 55 x 0.001 lb $4,055.63	4091651NB Super II Checkweigher Scale Includes Backlight and Battery Option 27 lb x 0.0005 lb $4,055.63 You are viewing this product	4091631NB Super II Checkweigher Scale Includes Backlight and Battery Option 11 lb x 0.0002 lb $4,055.63	4091621NB Super II Checkweigher Scale Includes Backlight and Battery Option 4.4 x 0.00005 lb $4,157.02	4091621RN Super II Checkweigher Includes Backlight and Remote scale 4.4 x 0.00005 lb $4,201.58
4091631RN Super II Checkweigher Includes Backlight and Remote scale 11 lb x 0.0002 lb $4,201.58	4091651RN Super II Checkweigher Includes Backlight and Remote scale 27 lb x 0.0005 lb $4,201.58	4091661RN Super II Checkweigher Includes Backlight and Remote scale 35 x 0.0005 lb $4,201.58	4091671RN Super II Checkweigher Includes Backlight and Remote scale 55 x 0.001 lb $4,201.58	4091681RN Super II Checkweigher Includes Backlight and Remote scale 65 x 0.001 lb $4,201.58
4091691RN Super II Checkweigher Includes Backlight and Remote scale 110 x 0.002 lb $4,201.58

Specifications

Model With backlight	4091621NN	4091631NN	4091651NN	4091661NN	4091671NN	4091681NN	4091691NN
Model With backlight and battery option	4091621NB	4091631NB	4091651NB	4091661NB	4091671NB	4091681NB	4091691NB
Model With backlight and remote scale	4091621RN	4091631RN	4091651RN	4091661RN	4091671RN	4091681RN	4091691RN
Model With backlight, remote scale and battery option	4091621RB	4091631RB	4091651RB	4091661RB	4091671RB	4091681RB	4091691RB
Capacity x Readability	4.4 lb x 0.00005 lb	11 lb x 0.0002 lb	27 lb x 0.0005 lb	35 lb x 0.0005 lb	55 lb x 0.001 lb	65 lb x 0.001 lb	110 lb x 0.002 lb
Capacity x Readability	2 Kg x 0.00002 Kg	5 Kg x 0.00005 Kg	12 Kg x 0.0002 Kg	16 Kg x 0.0002 Kg	25 Kg x 0.0005 Kg	30 Kg x 0.0005 Kg	50 Kg x 0.001 Kg
DISPLAYED RESOLUTION	Selectable; default from 50,000 to 100,000 divisions
INTERNAL RESOLUTION	Selectable to 1 part in 1,000,000
UNITS OF MEASURE	Pounds, kilograms, grams, ounces, pennyweights, troy ounces, carats, grains (user definable)
DISPLAY UPDATE RATE	Selectable, five settings
CCFL BACKLIGHTING	Optional
RESPONSE TIME	Two seconds (typical)
COUNTING CAPACITY	10,000,000 pieces
MEMORY	2100 records including: part number (23 characters), description (16 characters), lot number (16 characters), count, average piece weight, tare, set points
TIME AND DATE	Battery protected real time clock
DATA COMMUNICATIONS	Bi-Directional RS232 port for PC, OUT port for printer, IN port for scanner, KEYBOARD port for QWERTY PS/2®, (6 pin mini DIN) style PC keyboard
SELECTABLE BAUD RATES	1200, 2400, 4800, 9600 (Com 1, 2, and 3)
OPERATING TEMPERATURES	40 °F to 110 °F (5 °C to 43 °C) - 10 to 90% RH non-condensing
POWER ADAPTER	16VDC @ 1000 mA USA for 120 VAC 60 Hz , Optional 12 VDC @ 500mA EC for 230 VAC, 50 Hz
DIMENSIONS Platform	6.2" Diameter		11.5" W x 9.5" D (29 x 24 cm)		13" W x 15" D (33 x 38 cm)
DIMENSIONS Controller	10.75" W x 4.38" D x 2.5" H (27 x 11 x 6 cm)		10.75" W x 4.38" D x 2.5" H (27 x 11 x 6 cm)		10.75" W x 4.38" D x 2.5" H (27 x 11 x 6 cm)
DIMENSIONS Overall	11.5" W x 14" D x 4.75" H (29 x 35 x 12 cm)		11.5" W x 14" D x 4.75" H (29 x 35 x 12 cm)		13" W x 19.38" D x 4.5" H (33 x 48 x 11.5 cm)
SHIPPING WEIGHTS	16 lb (7.25 Kg)		19.8 lb ( 9 Kg))		35.5 lb (16 Kg)
CERTIFICATIONS	UL, CSA, CE, ISO 9001
LIMITED WARRANTY	Two years
OPTIONS	Relay Box: Optically is olated; 3 outputs and 2 digital inputs Light Tree: Compact visible indication for low, target. high
