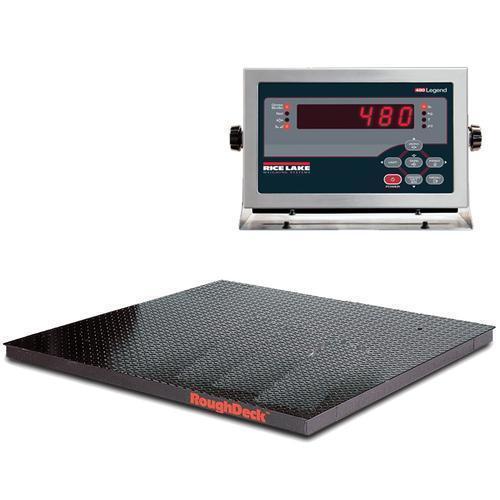

Rice Lake 480-66307 Roughdeck Floor Scale 5 ft x 6 ft Legal for Trade with 480 Indicator - 10000 x 2 lb |
|
| The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 5 ft x 6 ft RoughDeck floor scale with one of five quality Rice Lake indicators. more ... |
|
Industrial Scales >
Floor Scales >
5001 lb to 10000 lb
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:10000 lbx 2 lb
Legal For Trade: 10000 lb x 2 lb
Pan Size
5 x 6 ft
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 5 ft x 6 ft RoughDeck floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.
RoughDeck® Rough-n-Ready, Floor Scale System with 480/480 Plus Indicator
- Package includes: RoughDeck HP 5 ft x 6 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 480/480 Plus indicator
- Package is factory-calibrated for 5,000 divisions
Scale
- Heavy-duty design with structural steel under support
- Four NTEP certified alloy steel shear beam load cells
- Side-access JB4SS TuffSeal® junction box
Indicator
- LED display
- Time and date battery backed
- Communication ports
- LED display
- Time and date, battery backed
- Local/remote operation
- Two independent serial ports
- NEMA Type 4X/IP66 stainless steel washdown enclosure
- Programmable ticket formats for gross, net, accumulator and setpoints
- Five continuous stream formats
- Adapter filter or rolling average filter
- Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
- Eight setpoints, sequenced batch engine
- Configurable with Revolution® software
RoughDeck Specifications
End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb
Cable Length:
20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year
Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d
480/480 Indicator Specifications
Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Display:
LED display 0.8 in (20 mm), six-digit, seven-segment
Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel
Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals:
NTEP CC 12-123
Measurement Canada AM-5892C,
CE Marked
cULus Listed
|
2 Year Manufacture Warranty
|
Other Rice Lake 480 Legend Roughdeck Floor Scales
|
Specifications
| Model |
480-4X5-5K |
480-4X5-10K |
480-4X6-5K |
480-4X6-10K |
480-5X5-5K |
480-5X5-10K |
480-5X6-5K |
480-5X6-10K |
480-5X7-5K |
480-5X7-10K |
| 480-66314 |
480-66313 |
480-66312 |
480-66311 |
480-66310 |
480-66309 |
480-66308 |
480-66307 |
480-66306 |
480-66305 |
| Stainless Steel Models |
480-18667 |
480-18668 |
- |
- |
480-18671 |
480-18672 |
- |
- |
480-18675 |
480-18676 |
| Capacity x Readability |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
| Size |
4 ft x 5 ft |
4 ft x 5 ft |
4 ft x 6 ft |
4 ft x 6 ft |
5 ft x 5 ft |
5 ft x 5 ft |
5 ft x 6 ft |
5 ft x 6 ft |
5 ft x 7 ft |
5 ft x 7 ft |
| Base Hight |
3.5 in |
| Legal For Trade |
Base: NTEP CC 92-001, Class III 5000 d - Indicator: NTEP CC 12-123, Class III/IIIL, 10,000 d |
| Power |
Line voltages: 100 to 240 VAC - Frequency: 50/60 Hz - DC voltages: n/a |
| Power Consumption |
8 W |
| Communication Ports |
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity |
| Annunciators |
Gross, net, center of zero, standstill, lb, kg, tare, preset tare |
| Display |
LED display 0.8 in (20 mm), six-digit, seven-segment |
| Keys/Buttons |
Flat membrane panel, embossed keys, tactile feel |
| Indicator Rating/Material |
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel |
| Indicator Weight |
6.4 lb (2.9 kg) |
| Cable Length |
20 ft (6.1 m) for connecting junction box to indicator |
| Threaded Eyebolt |
Hole (1/2-20NF) located in center of deck for easy lifting |
| Warranty (limited) |
RoughDeck HP weldment five years, load cells two years, all other components one year |
| Warranty |
Two-year limited |
|
|
|
|
|
|
|
