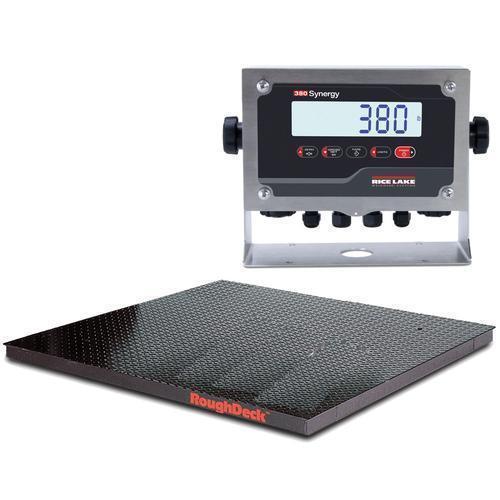

Rice Lake 380-66311 Roughdeck Floor Scale 4 ft x 6 ft Legal for Trade with 380 Indicator - 10000 x 2 lb |
|
| The RoughDeck® Rough-n-Ready System is a complete floor scale with 380 Indicator package. Match the durable design of our RoughDeck floor scale with one of four quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. more ... |
|
Industrial Scales >
Floor Scales >
5001 lb to 10000 lb
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:10000 lbx 2 lb
Legal For Trade: 10000 lb x 2 lb
Pan Size
4 x 6 ft
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
Utilize the 380 Synergy Series indicator for straightforward weighing systems including portable warehouse scales, material handling applications and more. The 380 can easily mount almost anywhere, making weight data visible exactly where you need it.
Durable Construction
A stainless steel, IP66 enclosure means the 380 Synergy is dust-tight and can stand up to high-pressure water. A bright, six-digit LCD display makes weight data easy to see.
Powerful, Straightforward Operation
The 380 Synergy is battery powered, providing up to 100 hours of continuous use. A five-button keypad makes operation quick and simple while RS-232 and USB ports make it easy to connect to peripheral equipment. Configurable print formats allow you to print only the most important information to your application. Optional date/time and external power supply are also available to meet the needs of your application.
- LCD display, six-digits 1?in (25?mm) tall
- Alkaline battery powered; requires 4 C-cell batteries (not included)
- Push button and keyed tare
- Two communication ports, RS-232 (three-wire), USB 2.0
- Five tactile buttons
- Configurable print formats
- 304 stainless steel, IP66 rated enclosure
OPTIONAL
- Time/date
- External power supply
Standard Features
- Package includes: RoughDeck HP 4 ft × 4 ft × 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 380 indicator
- Package is factory-calibrated for 5,000 divisions Scale
- Heavy-duty design with structural steel under support
- Four NTEP certified alloy steel shear beam load cells
- Side-access JB4SS TuffSeal® junction box Indicator
- LCD display
- Communication ports
RoughDeck Specifications
End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb
Cable Length:
20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited):
Weldment: Five-years
Load cells: Two-years
All other components: One-year
Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d
380 Specifications
Power: Batteries: 4 alkaline C-cell (not included) Optional: 115/230 VAC to 12 VDC adapter
Battery Life: 45 hours, continuous use on alkaline batteries with four 350 ohm load cells, low backlight
Communication Ports: One RS-232 (three-wire) One USB 2.0 (device)
Display: Six 1 in (25 mm) tall, LCD digits
Annunciators: g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
Keys/Buttons: 5 tactile buttons
Rating/Material: Enclosure: IP66, 304 stainless steel
Approvals: NTEP CC 21-051, CE Marked, cULus Listed
|
2 Year Manufacture Warranty
|
Other Rice Lake 380 Synergy Roughdeck Floor Scales
| Image |
Name |
Price |
|
|
$2,164.50
|
|
|
$2,164.50
|
|
Specifications
| Model |
380-4X5-5K |
380-4X5-10K |
380-4X6-5K |
380-4X6-10K |
380-5X5-5K |
380-5X5-10K |
380-5X6-5K |
380-5X6-10K |
380-5X7-5K |
380-5X7-10K |
| 380-66314 |
380-66313 |
380-66312 |
380-66311 |
380-66310 |
380-66309 |
380-66308 |
380-66307 |
380-66306 |
380-66305 |
| Capacity x Readability |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
| Size |
4 ft x 5 ft |
4 ft x 5 ft |
4 ft x 6 ft |
4 ft x 6 ft |
5 ft x 5 ft |
5 ft x 5 ft |
5 ft x 6 ft |
5 ft x 6 ft |
5 ft x 7 ft |
5 ft x 7 ft |
| Base Hight |
3.5 in |
| Legal For Trade |
Base: NTEP CC 92-001, Class III 5000 d - Indicator: NTEP CC 21-051, Class III/IIIL, 10,000 d |
| Power |
Batteries: 4 alkaline C-cell (not included)
Optional: 115/230 VAC to 12 VDC adapter |
| Power Consumption |
6 W max with optional external power adapter |
| Communication Ports |
One RS-232 (three-wire)
One USB 2.0 |
| Annunciators |
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net |
| Display |
Six 1 in (25 mm) tall, LCD digits |
| Keys/Buttons |
5 tactile buttons |
| Indicator Rating/Material |
IP66 / Stainless steel |
| Indicator Weight |
6.25 lb (3 kg) |
| Indicator Dimensions |
(L × W × H) 11.58 × 74.53 × 8.57 in - (294 × 115 × 218 mm) |
| Cable Length |
20 ft (6.1 m) for connecting junction box to indicator |
| Threaded Eyebolt |
Hole (1/2-20NF) located in center of deck for easy lifting |
| Warranty (limited) |
RoughDeck HP weldment five years, load cells two years, all other components one year |
| Warranty |
Two-year limited |
|
|
|
|
|
|
|
