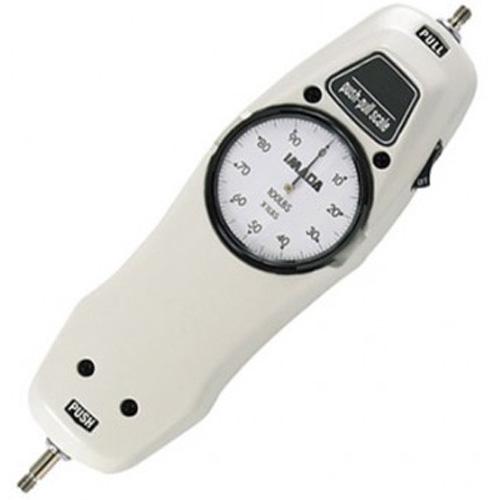

Imada PS-10kg Precise Mechanical Force Gauge, 10 kg x 50 g |
|
| The Imada PS series force gauges are the highest accuracy mechanical force gauges available, making them ideal for precision tension and compression measurements in laboratory environments. Capacities from 32 oz to 100 lbs - in pounds, kilograms or Newton more ... |
|
Test Equipment >
Force Gauges >
Mechanical Force Gauges
|
|
|
|
|
|
Features
The Imada PS series force gauges are the highest accuracy mechanical force gauges available, making them ideal for precision tension and compression measurements in laboratory environments.
The Imada PS series force gauges are sold in kits, complete with gauge, hard plastic carrying case, measuring attachments (flat head, cone, chisel, notched, small hook, large hook, and Y-hook), and extension rod. The ergonomic design is well suited for hand held testing, and the gauges have four threaded holes for mounting to a test stand, or the optional handle.
- Push/Pull
- Ergonomic, heavy-duty metal construction
- No batteries needed
- Intrinsically safe
- Capacity up to 100 lbs.
- Accuracy ±0.2% F.S.
- Overload capacity 165 lbs on all ranges
- Tare ring
- Real time and peak mode
- Full set of accessories and carrying case included
- 2 year warranty
PS Ranges (resolution) PS +/-0.2% F.S.; MF +/- 0.3% F.S.
| Pounds |
Kilograms |
Newtons |
| Model |
Capacity x Resolution |
Model |
Capacity x Resolution |
Model |
Capacity x Resolution |
| PS-32oz |
32 oz x 0.25 oz |
PS-0.5kg |
500 g x 2.5 g |
PS-10N |
10N x 0.05 N |
| PS-80oz |
80 oz x 1 oz |
PS-1kg |
1 kg x 5 g |
PS-20N |
20N x 0.1 N |
| PS-2 |
2 lb x 0.01 lb |
PS-2kg |
2 kg x 10 g |
PS-30N |
30 N x 0.2 N |
| PS-5 |
5 lb x 0.025 lb |
PS-3kg |
3 kg x 20 g |
PS-50N |
50N x 0.25 N |
| PS-10 |
10 lb x 0.05 lb |
PS-5kg |
5 kg x 25 g |
PS-100N |
100 N x 0.5 N |
| PS-20 |
20 lb x 0.1.lb |
PS-10kg |
10 kg x 50 g |
PS-200N |
200 N x 1 N |
| PS-30 |
30 lb x 0.2 lb |
PS-20kg |
20 kg x 100 g |
PS-300N |
300 N x 2 N |
| PS-50 |
50 lb x 0.25 lb |
PS-30kg |
30 kg x 200 g |
PS-500N |
500 N x 2.5 N |
| PS-100 |
100 lb x 0.5 lb |
PS-50kg |
50 kg x 250 g |
|
|
Weight:
10.00 lb
|
|
