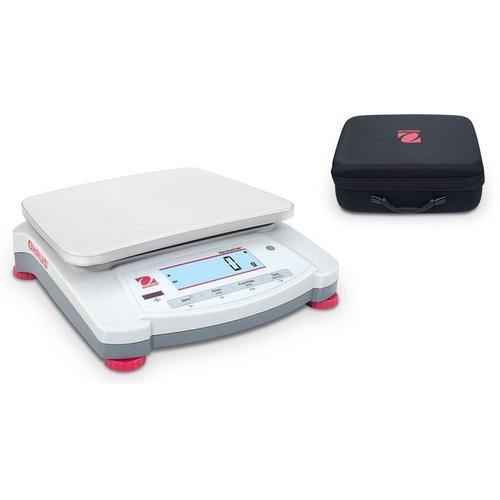

Ohaus NV2202 Navigator with Touchless Sensors Portable Balance and Carrying Case - 2200 x 0.01 g |
|
| Rugged, Multi-Purpose Balances for a Wide Range of General Weighing Applications OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, more ... |
|
Laboratory Equipment >
Basic Laboratory Scales >
Milligram - 1 mg
|
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
Rugged, Multi-Purpose Balances for a Wide Range of General Weighing Applications OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator is a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.
Standard Features:
- Designed for Accuracy and Repeatability in Essential Weighing Applications Designed for a range of essential weighing applications, the Navigator offers accuracy and repeatability at a competitive pricepoint, making it a valuable tool in laboratory, industrial and education settings.
- Improved Productivity with Fast Stabilization Time The Navigator series is designed to accurately stabilize in less than one second to provide fast and accurate weighing results, improving operator efficiency, productivity and throughput.
- Mechanical Overload Protection Safeguards the Balance and Increases Durability An overload protection system that can withstand loads up to four times the rated capacity safeguards the balance. An integrated shipping lock protects the weighing cell during transportation/storage.
- Touchless Sensor for Increased Convenience and Efficiency The Navigator’s touchless sensor frees up your hands for handling samples. Users can zero, print, tare or change functions without touching the balance, keeping sample residue off the keypad.
Other Standard Features and Equipment
ABS housing, stainless steel pan, transportation lock, menu and calibration lockswitch, slip-resistant and adjustable feet, leveling bubble, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings
Compliance
- Product Safety: IEC/EN 61010-1
- Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class B; Canada ICES-003 Class B
- Compliance Marks: CE; RCM
Accessories
- USB Interface: 83032108
- RS232 Interface: 83032107
- Ethernet Interface: 83032109
- Rechargeable Battery Kit: 83032106
- Carrying Case: 30467963
- Adapter with plugs: 30467987
- Printer, SF40A, AM: 30064203
Weight:
10.20 lb
|
1 Year Manufacture Warranty
|
Other Ohaus Navigator w Touchless Sensors
| Image |
Name |
Price |
|
|
$332.80
|
|
|
$370.56
|
|
|
$327.60
|
|
|
$191.80
|
|
|
$380.80
|
|
|
$388.48
|
|
|
$280.70
|
|
|
$317.80
|
|
|
$432.64
|
|
|
$322.56
|
|
|
$455.04
|
|
|
$322.56
|
|
|
$333.20
|
|
|
$403.20
|
|
|
$405.76
|
|
|
$403.20
|
|
|
$428.16
|
|
|
$435.84
|
|
|
$520.96
|
|
Specifications
| Model with TD52P ABS Indicator |
NV123
30642238 |
NV223
30642239 |
NV323
30642240 |
NV222
30456410 |
NV422
30456411 |
NV622
30467960 |
NV1202
30642241 |
NV2202
30642242 |
NV3202
30642243 |
NV221
30456412 |
NV621
30456413 |
NV1201
30456414 |
NV2201
30456415 |
| Capacity x Readability |
120 x 0.001 g |
220 x 0.001 g |
320 x 0.001 g |
220 x 0.01 g |
420 x 0.01 g |
620 x 0.01 g |
1200 x 0.01 g |
2200 x 0.01 g |
3200 x 0.01 g |
220 x 0.1 g |
620 x 0.1 g |
1200 x 0.1 g |
2200 x 0.1 g |
| Pan Size |
Ø 4.7 in. |
Ø 5.7 in. |
7.5 x 5.7 in |
| Stabilization Time(s) |
2.5 |
1 |
1.5 |
2 |
1 |
| Repeatability (std. Dev.) |
0.002 |
0.01 |
0.02 |
0.2 |
| Linearity (g) |
0.003 |
0.005 |
0.02 |
0.03 |
0.05 |
0.2 |
| Construction |
ABS housing and stainless steel pan |
| Draftshield |
Removable Draftshield |
- |
| Calibration |
User-selectable external span or linearity calibration / Digital with external weight |
| Tare Range |
Full capacity by subtraction |
| Weighing Units |
g, kg, N, oz, ozt, dwt, lb, lb:oz, ct, grain |
| Application Modes |
Weighing, Parts Counting, Percent Weighing, Checkweighing |
| Power Requirement |
AC adapter (included) or 4 C batteries (not included) |
| Typical Battery Life |
200 hours |
270 hours |
200 hours |
270 hours |
| Temperature Range |
10 °C (50 °F) to 40 °C (104 °F) at 10% to 85% relative humidity, non-condensing |
| Storage Conditions |
-20 °C (-4 °F) to 55 °C (131 °F) at 10% to 90% relative humidity, non-condensing |
| Communication |
RS232, USB, or Ethernet (available as accessories) |
| Display Type |
Liquid Crystal Display (LCD) with backlight |
| Display Size |
0.78 in. / 20 mm digits |
| Balance Dimensions (W x D x H) |
8 x 9.1 x 4.2 in
with draft shield
8 x 9.1 x 2.9 in
without draft shield |
8 x 9.1 x 2.8 in. |
| Shipping Dimensions (W x D x H) |
15.2 x 13.2 x 6.7 in |
8 x 9.1 x 2.8 in. |
| Net Weight |
2.2 lb / 1.0 kg |
2.2 lb / 1.0 kg |
| Shipping Weight |
3.3 lb / 1.5 kg |
3.3 lb / 1.5 kg |
| Linearity Calibration Mass |
50, 100 g |
100, 200 g |
150, 300 g |
100, 200 g |
200, 400 g |
300, 600 g |
500 g, 1 kg |
1 kg, 2 kg |
1.5 kg, 3 kg |
100, 200 g |
300, 600 g |
500 g, 1 kg |
1 kg, 2 kg |
| Span Calibration Mass* |
100 |
200 |
300 |
200 |
200 |
300 |
1000 |
2000 |
3000 |
200 |
300 |
500 |
1000 |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus 83032109 Navigator XT Ethernet Interface Kit
Ohaus 83032109 Scout Ethernet Interface Kit
|
|
more info
|
Ohaus 83032108 Navigator - Scout Pro - TAJ USB Interface Kit
Ohaus 83032108 Navigator - Scout Pro - TAJ USB Interface Kit
|
|
more info
|
Ohaus 83032107 Navigator - Scout Pro - TAJ RS-232 Interface Kit
Ohaus 83032107 Navigator - Scout Pro - TAJ RS-232 RS-232 Interface Kit
|
|
more info
|
Ohaus SF40A (30064203) Portable Dot-Matrix Impact Printer
OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
- Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
- Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
- Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
|
|
more info
|
Ohaus 30467963 Carrying Case For Ohaus Navigator
Hard shell carrying case for Ohaus Navigator series digital scales.
|
|
more info
|
Ohaus 83032108 USB Interface Kit for TA, NV, NVT Portable Balances
|
|
|
|
|
|
|
|
|
)
)
