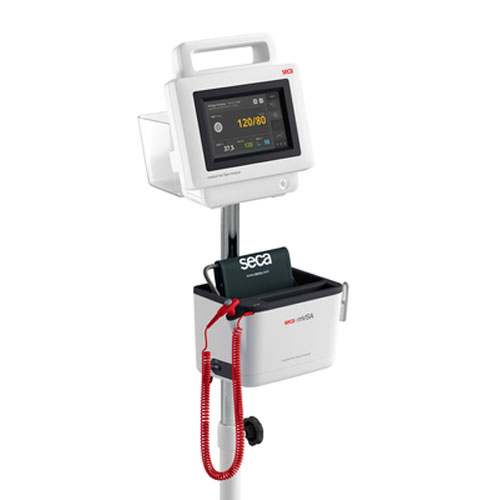

Seca mVSA 535 EMR-validated Spot-Check Vital Signs Monitor (NiBP, SpO2 Masimo, Rectal Temp) |
|
| Acquiring patient’s vitals is a routine task, performed on almost every patient. The seca mVSA 535 was designed to make this task as easy and efficient as possible. Staff at any level can operate the spot-check monitor due to its intuitive touch screen and self-explanatory user interface. more ... |
|
Medical Equipment >
Blood Pressure Monitors >
Blood Pressure Monitors
|
|
|
|
|
|
Features
Acquiring patient’s vitals is a routine task, performed on almost every patient. The seca mVSA 535 was designed to make this task as easy and efficient as possible. Staff at any level can operate the spot-check monitor due to its intuitive touch screen and self-explanatory user interface. The vitals capture is simple and fully validated for HL7 and many EMR systems. Connectivity to seca scales and measuring stations due to seca 360° proximity is also a plus as well as the unique seca EQ BP™ technology. The seca mVSA fits perfectly into your existing workflows and frees up time and resources to improve patient care.
Product Properties
- Easy to operate spot-check monitor to capture all basic routine patient vitals in less than 60 seconds
- Quick and accurate blood pressure measurement in under 20 seconds
- Configurable seca EQ BP™ average mode (BP30) provides true screening of hypertension
- seca scale connectivity through seca 360° proximity: One integration interface for all seca devices
- World-class service program with no downtime
- Long lasting battery for up to 150 measurements on one single charge
- Convincing data storage: All measurements stored and available for later processing
- EMR-validated: transmit measured data directly to any electronic medical record system or printer
Key-Technical Data
- Blood pressure measurement method: Oscillometric, deflation or inflation measurement
- Blood pressure measurement time: Normal: 15 - 20 sec / max. 90 sec (adults)
- SpO2 measurement: methodPulse oximetry
- Temperature measurement response time: Predictive (oral) 3 - 10 sec.; Predictive (axillary/rectal) 8 - 14 sec.; Direct 60 - 120 sec
- Temperature measuring method: Rectal (direct or predictive)
Weight:
6.00 lb
|
|
Other Seca Spot-Check Vital Signs Monitors
|
Specifications
| Model |
5351010131 |
5351020131 |
5351200131 |
5351210131 |
5351220131 |
| Main Functions |
NiBP, Oral Temp |
NiBP, Rectal Temp |
NiBP, SpO2 Masimo |
NiBP, SpO2 Masimo, Oral Temp |
NiBP, SpO2 Masimo, Rectal Temp |
| Display |
7" Touchscreen-Display |
| BIA module |
Without BIA Module |
| Blood pressure measurement range – deflation |
pSYS: 25 - 280 mmHg pDIA: 10 - 220
mmHg pMAP: 15 - 260 mmHg |
| Blood pressure measurement range – inflation |
pSYS: 77 - 200 mmHg pDIA: 45 - 190
mmHg pMAP: 56 - 193 mmHg |
| Blood pressure measurement accuracy – deflation (clinical validated) |
Mean deviation systole 0.39 mmHg; Standard deviation systole 2.57 mmHg;
Mean deviation diastole 0.43 mmHg; Standard deviation diastole 1.73 mmHg |
| Blood pressure measurement accuracy – inflation (clinical validated) |
Mean deviation systole 0.94 mmHg; Standard deviation systole 3.84 mmHg;
Mean deviation diastole 0.57 mmHg; Standard deviation diastole 3.17 mmHg |
| Blood pressure measurement method |
Oscillometric, deflation or inflation measurement |
| Blood pressure measurement certainty |
Excess pressure limit 300 mmHg;
automatic pressure release at > 300 mmHg |
| Blood pressure measurement time |
Normal: 15 - 20 sec / max. 90 sec (adults) |
| Blood pressure pulse rate accuracy |
max. +/- 3 bpm |
| Blood pressure pulse rate range – deflation |
30 - 240 bpm |
| Blood pressure pulse rate range – inflation |
45 - 200 bpm |
| Net weight |
5.9 lbs / 2.7 kg |
| Product height |
10.3 inch / 262 mm |
| Product width |
10.0 inch / 254 mm |
| Product depth |
10.9 inch / 278 mm |
| Ports |
Ethernet
USB 2.0
Wi-Fi |
| SpO2 module |
Without SpO2 module |
Masimo SpO2 module |
| SpO2 measurement range |
0 - 100 % |
| SpO2 measurement accuracy |
SpO2 (resting) 70 % - 100 % ± 2
Arms; SpO2 (in motion) 70 % - 100 % ± 3 Arms |
| SpO2 measurement method |
Pulse oximetry |
| SpO2 pulse rate measurement range |
Pulse rate: 25 bpm to 240 bpm
Perfusion index measuring range 0.02% - 20.0% |
| SpO2 pulse rate measurement accuracy |
PR (no motion) 25 - 240 bpm ± 3 digits
PR (in motion) 25 - 240 bpm ± 5 digits |
| Power supply |
Built-in power adapter
internal rechargeable lithium-ion battery |
| Temperature measuring range |
Direct 30 °C - 43 °C (86 °F - 109.4 °F
predictiv 35.5 °C - 42 °C (95.9 °F - 107.6 °F) |
- |
Direct 30 °C - 43 °C (86 °F - 109.4 °F
predictiv 35.5 °C - 42 °C (95.9 °F - 107.6 °F) |
| Temperature measurement response time |
Predictive (oral) 3 - 10 sec |
Predictive (axillary/rectal) 8 - 14 sec.
Direct 60 - 120 sec |
- |
Predictive (oral) 3 - 10 sec |
Predictive (axillary/rectal) 8 - 14 sec.
Direct 60 - 120 sec |
| Temperature measurement accuracy |
Direct ± 0.1 °C (± 0.2 °F)
Predictive (for 95 % of measurements) ± 0.1 °C (± 0.2 °F) |
- |
Direct ± 0.1 °C (± 0.2 °F)
Predictive (for 95 % of measurements) ± 0.1 °C (± 0.2 °F) |
| Temperature measuring method |
Oral/axillary (direct or predictive) |
axillary/rectal (direct or predictive) |
- |
Oral/axillary (direct or predictive) |
axillary/rectal (direct or predictive) |
| Temperature module |
Filac™ temperature oral/axillary |
Filac™ temperature axillary/rectal |
- |
Filac™ temperature oral/axillary |
Filac™ temperature axillary/rectal |
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|

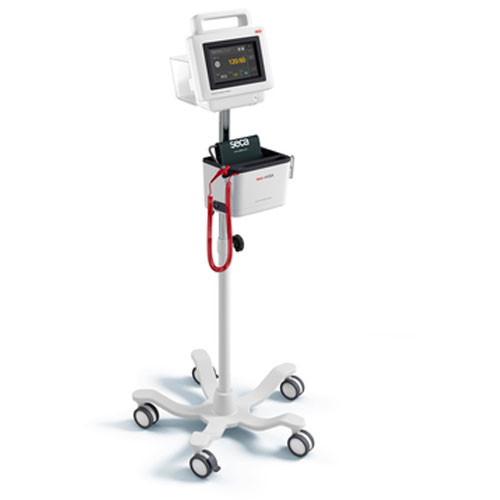

Seca 475 Rolling Stand for mVSA Spot-check Vital Signs Monitors
Mobile. Practical. Adjustable height. The rolling stand is perfectly coordinated to the seca mVSA. The seca mVSA can be mounted on the high-quality rolling stand with just two screws in just a few seconds. The five rollers move in all directions so the stand can be steered easily and safely. The stand also contains a holder for the Smart Bucket in which sphygmomanometer cuffs and probe covers can be stored and which has a holder for the thermometer and SpO2 sensors.
SPECS
- Net weight: 29.1 lbs / 13.2 kg
- Product width: 23.6 inch / 600 mm
- Product depth: 23.6 inch / 600 mm
- Product height: 27.4 - 46.6 inch to 695 - 1,185 mm
|
|
more info
|
Seca 432 Carrying Case for mVSA 535 and mBCA 525
The high-quality carrying case seca 432 can hold the seca mBCA 525 or seca mVSA 535 as well as further accessories such as electrodes, documents or power adapters. All parts can be safely stored in the customised separate compartments. Since the bags material is durable and water-resistant, it is especially suitable for mobile use.
|
|
more info
|
Seca 4900017 Stand Bracket for SmartBucket
High quality, functional, robust. With this mounting the Smart Bucket is quickly and easily attached to the rolling stand seca 475. The well designed cable routing with strain relief offers additional security against accidental pulling out of the plugs.
Product Properties
- Quick and easy installation
- Smart cable routing
Key-Technical Data
- Product width: 6.5 inch / 164 mm
- Product height: 4.4 inch / 113 mm
- Product depth: 4.3 inch / 108 mm
|
|
more info
|
Seca 4900015 Covidien Filac Disposable Probe Covers (2000 count)
The probe covers are an effective protection from the transmission of infections between the patient, the device, and the doctor..
Product Properties
- Probe covers for Filac™ 3000
- One package contains 2000 units (100 x 20 covers)
- Effective infection protection
|
|
more info
|
Seca 4900029 EQ Blood Pressure Monitor Cuff - XXL
A cuff is the perfect sensor for precise measurement results. The perfect fit is decisive for this, which is why the seca sphygmomanometer cuff is available in various sizes. The watertight fabric is easy to disinfect and clean and the entire cuff is latex-free. It was designed for long-term use and made of durable nylon. All cuffs are naturally reusable. Size XXL: 42 – 54 cm
Product Properties
- For perfect measurement results
- Antiallergenic because it is free of latex
- Variable cuff sizes from S to XL
- Reusable cuffs
- Nylon material
Key-Technical Data
Product width: 27.1 inch / 688 mm
Product height: 0.8 inch / 210 mm
Product depth: 0.1 inch / 20 mm
|
|
more info
|
Seca 4900028 EQ Blood Pressure Monitor Cuff - XL
A cuff is the perfect sensor for precise measurement results. The perfect fit is decisive for this, which is why the seca sphygmomanometer cuff is available in various sizes. The watertight fabric is easy to disinfect and clean and the entire cuff is latex-free. It was designed for long-term use and made of durable nylon. All cuffs are naturally reusable. Size EXTRA LARGE: 42 – 54 cm
Product Properties
- For perfect measurement results
- Antiallergenic because it is free of latex
- Variable cuff sizes from S to XL
- Reusable cuffs
- Nylon material
Key-Technical Data
Product width: 24.0 inch / 610 mm
Product height: 6.7 inch / 170 mm
Product depth: 0.2 inch / 4 mm
|
|
more info
|
Seca 4900003 EQ Blood Pressure Monitor Cuff - LARGE
A cuff is the perfect sensor for precise measurement results. The perfect fit is decisive for this, which is why the seca sphygmomanometer cuff is available in various sizes. The watertight fabric is easy to disinfect and clean and the entire cuff is latex-free. It was designed for long-term use and made of durable nylon. All cuffs are naturally reusable. Size LARGE: 34 – 43 cm
Product Properties
- For perfect measurement results
- Antiallergenic because it is free of latex
- Variable cuff sizes from S to XL
- Reusable cuffs
- Nylon material
Key-Technical Data
Product width: 24.0 inch / 610 mm
Product height: 6.7 inch / 170 mm
Product depth: 0.2 inch / 4 mm
|
|
more info
|
Seca 4900002 EQ Blood Pressure Monitor Cuff - MEDIUM
A cuff is the perfect sensor for precise measurement results. The perfect fit is decisive for this, which is why the seca sphygmomanometer cuff is available in various sizes. The watertight fabric is easy to disinfect and clean and the entire cuff is latex-free. It was designed for long-term use and made of durable nylon. All cuffs are naturally reusable. Size MEDIUM: 27 – 35 cm
Product Properties
- For perfect measurement results
- Antiallergenic because it is free of latex
- Variable cuff sizes from S to XL
- Reusable cuffs
- Nylon material
Key-Technical Data
Product width: 20.5 inch / 520 mm
Product height: 5.5 inch / 140 mm
Product depth: 0.2 inch / 4 mm
|
|
more info
|
Seca 4900001 EQ Blood Pressure Monitor Cuff - SMALL
A cuff is the perfect sensor for precise measurement results. The perfect fit is decisive for this, which is why the seca sphygmomanometer cuff is available in various sizes. The watertight fabric is easy to disinfect and clean and the entire cuff is latex-free. It was designed for long-term use and made of durable nylon. All cuffs are naturally reusable. Size SMALL: 20.5 – 28 cm
Product Properties
- For perfect measurement results
- Antiallergenic because it is free of latex
- Variable cuff sizes from S to XL
- Reusable cuffs
- Nylon material
Key-Technical Data
Product width: 16.1 inch / 410 mm
Product height: 4.5 inch 115 mm
Product depth: 0.2 inch / 4 mm
|
|
more info
|
Seca 490024 EQ Blood Pressure Monitor Cuff - EXTRA SMALL
A cuff is the perfect sensor for precise measurement results. The perfect fit is decisive for this, which is why the seca sphygmomanometer cuff is available in various sizes. The watertight fabric is easy to disinfect and clean and the entire cuff is latex-free. It was designed for long-term use and made of durable nylon. All cuffs are naturally reusable. Size EXTRA SMALL: 13 – 20 cm
Product Properties
- For perfect measurement results
- Antiallergenic because it is free of latex
- Variable cuff sizes from S to XL
- Reusable cuffs
- Nylon material
Key-Technical Data
Product width: 12.4 inch / 314 mm
Product height: 3.4 inch / 87 mm
0.1 inch
20 mm
|
|
more info
|
Seca 4900005 Extension Tube for EQ BP Cuffs
The air tube extension for the seca EQ BP™ cuffs simplifies your work and gives you more freedom of movement.
Product Properties
- Air tube extension
- Polyurethane (PU)
Key-Technical Data
Product width: 53.3 inch / 1,355 mm
Product height: 0.4 inch / 9 mm
Product depth: 0.4 inch / 9 mm
Tube length: 51.2 inch / 1,300 mm
|
|
|
|
|
|
|
|
|
