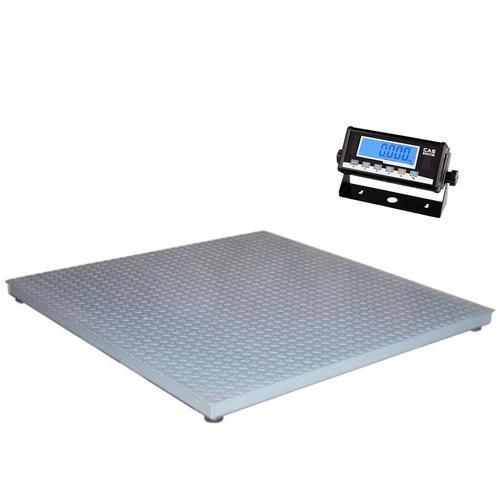

CAS HFS-505-CI100A Legal for Trade Floor Scale, 60 x 60 x 3.5 with CI-100A - 5000 x 1 lb |
|
| The HFS Series Floor Scale is available in 3 sizes and 2 capacities. Choose either the 3 x 3 , 4 x 4 or 5 x 5 at 5,000 or 10,000 lb capacities. The HFS low profile design makes this floor scale ideal in any environment. Heavy duty construction and easy to use. more ... |
|
Industrial Scales >
Scale Bases No Indicator >
Floor Scale Bases
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:5000 lbx 1 lb
Legal For Trade: 5000 lb x 1 lb
Pan Size
5 x 5 ft
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
CAS HFS Series Floor Scales
The HFS Series Floor Scale is available in 3 sizes and 2 capacities. Choose either the 3 x 3, 4 x 4 or 5 x 5 at 5,000 or 10,000 lb. capacities. The HFS low profile design makes this floor scale ideal in any environment. Heavy duty construction and easy to use. Bundle with the popular CI-200 and CI-2001 Indicators.
The HFS Series Floor Scale is available in 3 sizes and 2 capacities. Choose either the 3 x 3, 4 x 4 or 5 x 5 at 5,000 or 10,000 lb capacities. Bundle with the popular CI-200 and CI-2001 Indicators.
- 4 x 4 and 5 x 5 sizes available
- 5,000 x 1 lb / 10,000 x 2 lbs
- Low Profile & Heavy Duty
- Anti-skid Diamond Plated Steel Deck
- 16 ft Cable
- Adjustable Feet
- Side access junction box
- Double Shielded Load Cell Cable
- Bundle with CI-200 or CI-2001 Indicator
- Four environmentally sealed NTEP approved load cells
- selected models are Legal for Trade - COC# 07-022
The CI-100A is a simple, yet versatile indicator with NTEP and Measurement Canada certifications suitable for legal for trade use. Functionality includes:Weight ? Count ? Percentage ? Accumulation ? Hold ? Checkweighing ? Animal Weighing Capabilities
With a display resolution up to 1/100,000, visibility is insured by a blue backlit 1" high LCD display.
Standard features include a full
duplex RS232 serial interface, USB interface, multiple
communication protocols, time & date, and various
selectable units of measurement including lb, kg, g, oz,
lb:oz, pieces (non-commercial only), and percent.
|
|
Other CAS HFS Series Legal for Trade Floor Scale
| Image |
Name |
Price |
|
|
$995.00
|
|
|
$1,215.00
|
|
|
$1,085.00
|
|
|
$1,315.00
|
|
Specifications
| Model |
HFS-305-CI100A |
HFS-405-CI100A |
HFS-410-CI100A |
HFS-505-CI100A |
HFS-510-CI100A |
| Capacity x Readability |
5,000 x 1 lb |
5,000 x 1 lb |
10,000 x 2 lb |
5,000 x 1 lb |
10,000 x 2 lb |
| Platform Size |
36 x 36 x 3.5 |
48 x 48 x 3.5 |
48 x 48 x 3.5 |
60 x 60 x 3.5 |
60 x 60 x 3.5 |
| Legal for Trade |
YES
COC# 07-022 |
YES
COC# 07-022 |
NO |
YES
COC# 07-022 |
NO |
| Cable Length |
10 ft - J-Box to Indicator |
| Operating Environment |
-10ºC ~ 40ºC / -14ºF ~ 104ºF |
| Display |
6-digit, 7-segment , 1" (25mm) LCD with 16 annunciators and blue backlight |
| Display Designators |
Stable, Zero, Net, Total, Unit, Percent, Counting, Hold, HI/OK/LO, Battery |
| Units |
Kg, lb, lb:oz, g, oz, pcs (Non-Commercial only), % |
| Accuracy |
<= 0.01% Full Scale |
| Function Keys |
Setup/Hold, Print/Func, Acc/Total, Unit/Data, Tare/Preset, ON/OFF/Zero |
| Vibration Filter |
Four (4) Adjustable Filter Settings - Reduce Vibration/Assist in Configuring Indicator Speed & Stability |
| Calibration |
Linearity calibration, GEO calibration, or Input Calibration |
| Load Cell Capability |
4 @ 350 ohm |
| Communication |
One Full Duplex RS232 Interface, One USB Interface |
| Excitation Voltage |
5V DC |
| Dimensions |
6.4" (L) x 3.5" (W) x 1.2" (H)
162mm(L) x 80mm(W) x 29mm(H) |
| Power Source |
6VDC 500mA Adapter (Included) or 4 x AA batteries |
| Warranty |
2 Years |
|
|
|
|
|
|
|
Optional Accessories
more info
|
CAS CI-2001A Indicator with Bright LED Display, Legal for Trade
The CI-2001A Indicator with RS-232. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright red display, the CI-2001A Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
| Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
| Input Sensitivity |
2 V/D(H- 44, OIML)
0.5 V/D(Non H - 44, OIML) |
| Zero Adjust Range |
0.05~5mV |
| Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
| A/D Conversion Speed |
10 times/sec |
| A/D Display Resolution |
5,000dd(H- 44, OIML)
30,000dd(Non H - 44, OIML) |
| A/D Internal Resolution |
Approximately 200,000 Counts |
| Weight Display |
6 Digit LED
(H=0.55 ) |
6 Digit LCD
(H=1) |
6 Digit LED
(H=1) |
6 Digit LCD
(H=1) |
| Operating Temperature |
-10 C~+40 C |
| Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
| Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|
CAS CI-2001B Indicator with LCD Display and Backlight, Legal for Trade
The CI-2001B Indicator with RS-232. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright LCD display, the CI-2001B Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
| Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
| Input Sensitivity |
2 V/D(H- 44, OIML)
0.5 V/D(Non H - 44, OIML) |
| Zero Adjust Range |
0.05~5mV |
| Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
| A/D Conversion Speed |
10 times/sec |
| A/D Display Resolution |
5,000dd(H- 44, OIML)
30,000dd(Non H - 44, OIML) |
| A/D Internal Resolution |
Approximately 200,000 Counts |
| Weight Display |
6 Digit LED
(H=0.55 ) |
6 Digit LCD
(H=1) |
6 Digit LED
(H=1) |
6 Digit LCD
(H=1) |
| Operating Temperature |
-10 C~+40 C |
| Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
| Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|
CAS CI-2001AS Stainless Steel Indicator with Bright LED Display, Legal for Trade
The CI-2001AS Indicator, with stainless steel enclosure. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright red display, the CI-2001AS Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Stainless Steel
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
| Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
| Input Sensitivity |
2 V/D(H- 44, OIML)
0.5 V/D(Non H - 44, OIML) |
| Zero Adjust Range |
0.05~5mV |
| Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
| A/D Conversion Speed |
10 times/sec |
| A/D Display Resolution |
5,000dd(H- 44, OIML)
30,000dd(Non H - 44, OIML) |
| A/D Internal Resolution |
Approximately 200,000 Counts |
| Weight Display |
6 Digit LED
(H=0.55 ) |
6 Digit LCD
(H=1) |
6 Digit LED
(H=1) |
6 Digit LCD
(H=1) |
| Operating Temperature |
-10 C~+40 C |
| Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
| Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|
CAS CI-2001BS Stainless Steel Indicator with LCD Display and Backlight, Legal for Trade
The CI-2001BS Indicator, with stainless steel enclosure. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright LCD display, the CI-2001BS Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Stainless Steel
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
| Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
| Input Sensitivity |
2 V/D(H- 44, OIML)
0.5 V/D(Non H - 44, OIML) |
| Zero Adjust Range |
0.05~5mV |
| Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
| A/D Conversion Speed |
10 times/sec |
| A/D Display Resolution |
5,000dd(H- 44, OIML)
30,000dd(Non H - 44, OIML) |
| A/D Internal Resolution |
Approximately 200,000 Counts |
| Weight Display |
6 Digit LED
(H=0.55 ) |
6 Digit LCD
(H=1) |
6 Digit LED
(H=1) |
6 Digit LCD
(H=1) |
| Operating Temperature |
-10 C~+40 C |
| Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
| Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|

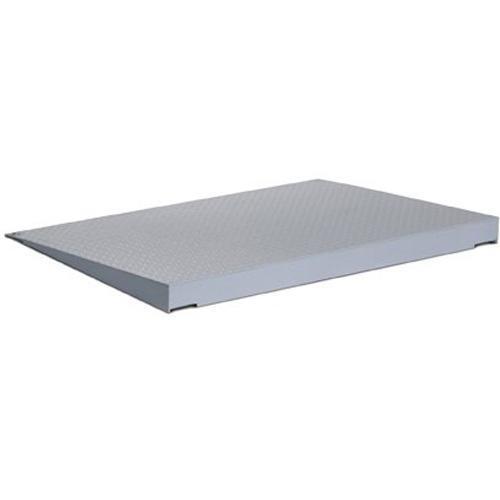

CAS Access Ramp 1 for HFS 405/410, 48 x 36 x 3.5
CAS HFS Series Access Ramp 1, 48 x 36 x 3.5
|
|
more info
|
CAS Access Ramp 2 for HFS 405/410, 48 x 48 x 3.5
CAS HFS Series Access Ramp 2, 48 x 48 x 3.5
|
|
|
|
|
|
|
|
|
)
)
