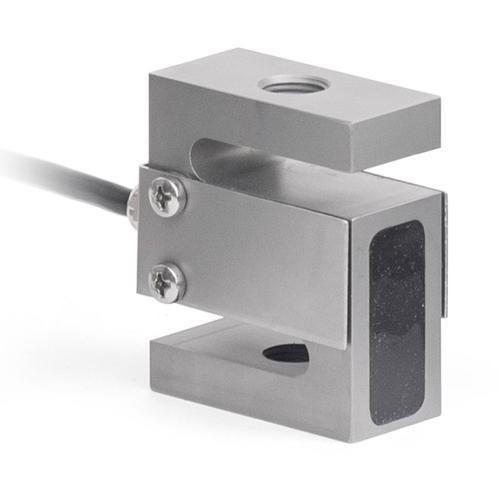

Mark-10 MR07-500 Force Sensor for Series F test frame 500 x 0.2 lbF |
|
Series MR07 force sensors measure tension and compression forces, and are designed for Series F test frames. With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required). more ... |
Test Equipment >
Force Gauges >
Force Sensor
|
|
|
|
Features
Series R07 Force Sensors
Compatible with Models F755, F755S, F1505, and F1505S. Cannot be used with Models F105, F305, F505, and F505H.
Series MR07 force sensors measure tension and compression forces, and are designed for Series F test frames. With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required).
Ranges available from 50 to 1,500 lbF [250 N to 7.5 kN].
Compatible with Models F755, F755S, F1505, and F1505S test frames. Not compatible with Models F105, F305, F505, and F505H.
Weight:
20.00 lb
|
|
Other Mark 10 MR07 Force Sensors
|
Specifications
Model No. |
lbF |
ozF |
gF |
kgF |
N |
kN |
Price |
MR07-50 |
50 x 0.02 |
800 x 0.5 |
25000 x 10 |
25 x 0.01 |
250 x 0.1 |
- |
MR07-100 |
100 x 0.05 |
1600 x 1 |
50000 x 20 |
50 x 0.02 |
500 x 0.2 |
- |
MR07-200 |
200 x 0.1 |
3200 x 2 |
- |
100 x 0.05 |
1000 x 0.5 |
1 x 0.0005 |
MR07-300 |
300 x 0.2 |
4800 x 5 |
- |
150 x 0.1 |
1500 x 1 |
1.5 x 0.001 |
MR07-500 |
500 x 0.2 |
8000 x 5 |
- |
250 x 0.1 |
2500 x 1 |
2.5 x 0.001 |
MR07-750 |
750 x 0.5 |
12000 x 10 |
- |
375 x 0.2 |
3750 x 2 |
3.75 x 0.002 |
MR07-1000 |
1000 x 0.5 |
16000 x 10 |
- |
500 x 0.2 |
5000 x 2 |
5 x 0.002 |
MR07-1500 |
1500 x 1 |
24000 x 20 |
- |
750 x 0.5 |
7500 x 5 |
7.5 x 0.005 |
|
|
|
* within the 48 continental US States
|
|
|
|
