RADWAG WAY 100.4Y.KO Class-leading manual mass comparator 110 g x 0.001 mg
Mass comparator WAY 4Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system. 110 g x 0.001 mg more ...
Mass comparator WAY 4Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 4Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 4Y.KO series features an intuitive menu supporting a user while operating the instrument.
Effective and Excellent Measurement The WAY 4Y.KO series stands for a class-leading automatic mass comparator. The series enables comparison of weights ranging from 1 mg to 5 kg for class E1.
Excellent Measurement Repeatability The WAY 4Y.KO mass comparator is equipped with a spacious weighing chamber made of glass and a ring-shaped draft shield. Mass comparators of higher accuracy feature an internal glass anti-draft chamber minimizing the influence of ambient conditions on measurement result.
Design and Functionality The ring-shaped draft shield, apart from protecting the load against air drafts, prevents potential shocks that may occur during weighing pan loading. The weighing pan made of top-class non-magnetic stainless steel features marking facilitating centric loading of weights Anti-draft chamber made of glass reduces the influence of air drafts on comparison process. With use of conductive coating, the glass enables discharge of electrostatic charges.
Dedicated Software Specially designed RMCS computer software enables comprehensive realisation of calibration procedures in laboratory. The system manages the whole calibration process, starting from the moment the order is placed, through procedure performance, to the moment of issuing the calibration certificate.
Ambient conditions measurement
Anti-draft chamber made of glass reduces the influence of air drafts on comparison procedure
External supplementary loads for comparison of non-standard weights
* repeatability is expressed as a standard deviation determined for 6 ABBA cycles

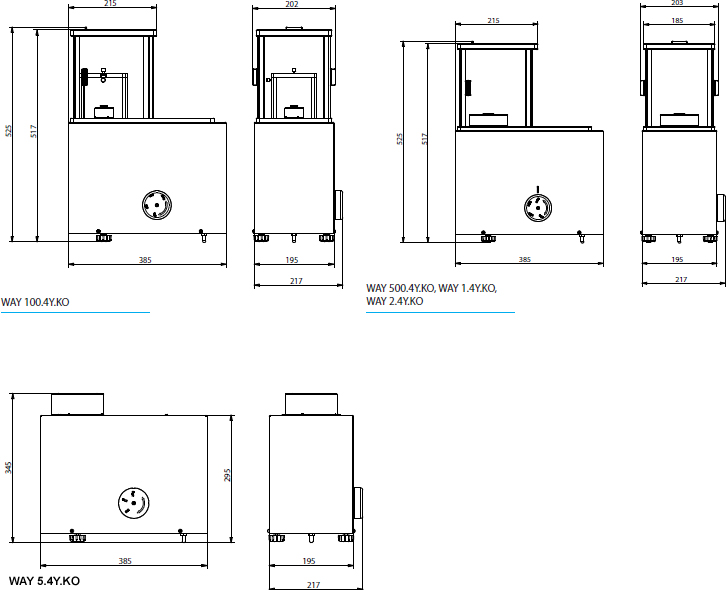

** dimensions: length x width x depth
*** non-condensing conditions
Wi-Fi ® is a registered trademark of Wi-Fi Alliance.
RMCS system, designed by RADWAG, is dedicated to management of calibrating and testing procedures in a laboratory from the moment of accepting an order, through its progress and until issuing a calibration certificate. The software manages the complete calibrating and testing process.
The operation of mass comparators in connection with the software for network management of calibration process provides improved efficiency, reliable measurement results and complete documentation from calibration process, together with lower labour costs.
The system enables initiating the calibration procedure by ordering a task to a mass comparator, and autonomous executing calibration process on a mass comparator. In both cases, data is transferred to the software for the purpose of registering, controlling and finally issuing a calibration certificate.
Mass comparators linked in the RMCS system autonomously cooperate with THB ambient conditions monitors enabling recording major ambient factors like temperature, humidity and atmospheric pressure throughout the control process. The modules are detachable from the mass comparators for calibration and adjustment of their sensors.
Data on current ambient conditions is displayed in real time on mass comparator’s display. The data is also sent do RMCS software for control and archiving purposes.
Ambient conditions monitoring module:
Installed and in direct cooperation with a mass comparator;
Enabling recording ambient conditions (temperature, humidity, atmospheric pressure) and calculating air density;
Continuous monitoring of ambient conditions in direct vicinity of a mass comparator and its weighing chamber;
Graphic presentation of ambient conditions on mass comparator’s display.
Automatic and manual mass comparators used as components of the RMCS system;
Access and management of databases on: standards, test objects, from the level of RMCS software;
Execution of calibration tasks ordered in the RMCS software;
Self test procedure determining mass comparator’s repeatability parameter;
Transfer of measurement results to the software memory.
Calculating and data storage module:
Sending tasks to mass comparators;
Downloading data on mass and ambient conditions from mass comparators;
Operation on databases of clients / tasks / standards;
Monitoring of future calibration dates;
Database of accomplished calibrations, printouts and saved documentation.
Complete management of a metrological laboratory calibrating mass standards and weights with application of Y series of RADWAG mass comparators;
Calibration using ABBA and ABA methods;
Application of MS SQL database for network supervision of multiple computer stands;
Complete management of calibration orders;
Extended database of mass standards and test objects;
Extended database of clients, operators and users;
Database of manual and automatic mass comparators;
Database of calibration orders;
Managing pending tasks based on issued calibration orders;
Planning tasks and orders execution;
Weight checking procedure without an order – Quick Check option;
Manual or automatic calibration of test objects;
Cooperation with RADWAG automatic mass comparators;
Bilateral data synchronization with RADWAG mass comparators;
Reporting from calibration process;
Issuing calibration certificates according to pre-defined template;
Exporting report results to various file formats: PDF, MS Word, Excel;
Record of events;
Register of orders and calibration certificates;
Saving copies of all calibration protocols, orders, calibration certificates and records of ambient conditions;
Secured access to the software – log in procedure using password.
