RADWAG SM-MYA-5 SM Susceptometer - Mass Comparators 50 kg x 0.001 mg

Radwag Balances and Scales
RADWAG-manufactured susceptometer enables carrying out measurements of magnetic susceptibility and magnetization of weights of E1 and lower classes in accordance with OIML R111. more ...
Laboratory Equipment > Analytical Balances > Mass Comparators
RADWAG SM-MYA-5 SM Susceptometer - Mass Comparators  50 kg x 0.001 mg

Specifications Chart View Full Detail Page


Call for more info
Capacity x Readability
50 kgx 0.001 mg
Pan Size
300 mm (Diameter)
Download PDF
RADWAG SM-MYA-5 SM Susceptometer - Mass Comparators 50 kg x 0.001 mg
FREE Ground Shipping
(48 US States Only)

Price: $25,333.44


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

RADWAG
SKU: SM-MYA-5

Features

RADWAG-manufactured susceptometer enables carrying out measurements of magnetic susceptibility and magnetization of weights of E1 and lower classes in accordance with OIML R111. Modular design, upon disassembling respective module, enables using the susceptometer as a mass comparator or a balance. Compared to the previous model, the new one features option of internal adjustment and higher readability: [d] 0.1 µg for loads ranging from 2 g to 50 kg.
  • Effective and Excellent Measurement The SM susceptometer measures susceptibility and permanent magnetization of weights ranging from 2 g to 50 kg with the highest accuracy. The susceptometer is a complete reference solution for specifying the magnetic characteristics even for weights of class E1.
  • Intuitive Operation and Large Touch Screen 5.7" color touch screen enables intuitive operation and easy access to numerous applications and functions of the weighing instrument.
  • Versatile Weighing Platform The device, due to its modular design, operates as a balance or a mass comparator, and upon assembling respective module it may also operate as a susceptometer
  • Design and Functionality The device features three different heights, from the mass standard base to the centre of the magnet.
  • Dedicated Software Specially designed RMCS computer software enables comprehensive realisation of calibration procedures in laboratory. The system manages the whole calibration process, starting from the moment the order is placed, through procedure performance, to the moment of issuing the calibration certificate
    Functions
  • Magnetization
  • Mass comparator
  • Parts counting
  • Dosing
  • Checkweighing
  • Formulations
  • Statistics
  • Differential weighing
  • Statistical quality control
  • Autotest
  • Density determination
  • Percent weighing
  • Automatic sliding door
  • Cooperation with titrators
  • GLP procedures
  • Proximity sensors
  • Ambient conditions measurement
  • Proximity sensors
  • Replaceable units
  • Multilingual menu
Other RADWAG SM Susceptometer
Image Model Capacity x Readability Legal For Trade
Capacity x Readability
(Pan) Size Price More Info
RADWAG SM-MYA-5 SM Susceptometer - Mass Comparators  50 kg x 0.001 mg
SM-MYA-5 RADWAG SM-MYA-5 SM Susceptometer - Mass Comparators 50 kg x 0.001 mg $25,333.44
More Info
50 kg x 0.001 mg - 300 mm (Diameter)
RADWAG SM-MYA.B-5 SM Susceptometer - Mass Comparators  50 kg x 0.01 mg
SM-MYA.B-5 RADWAG SM-MYA.B-5 SM Susceptometer - Mass Comparators 50 kg x 0.01 mg $24,733.28
More Info
50 kg x 0.01 mg - 300 mm (Diameter)

Specifications

Susceptometer - Device for analysis of magnetic characteristics of mass standards from RADWAG Balances and Scales on Vimeo.

Model SM-MYA-5 SM-MYA-B-5
Capacity x Readability 50 kg x 0.001 mg 50 kg x 0.01 mg
Stabilization time 10 s 10 s
Adjustment Internal Calibration Internal Calibration
Dipole moment of magnets < 0.1 Am2 < 0.1 Am2
Platform-magnet centre distance 20; 27; 43 mm 20; 27; 43 mm
Magnetic field 2000, 800, 200 A/m 2000, 800, 200 A/m
OIML calibration range E1 2 g ÷ 50 kg 2 g ÷ 50 kg
OIML calibration range E2 2 g ÷ 50 kg 2 g ÷ 50 kg
OIML calibration range F1 2 g ÷ 50 kg 2 g ÷ 50 kg
OIML calibration range F2 2 g ÷ 50 kg 2 g ÷ 50 kg
OIML calibration range M1 - -
OIML calibration range M2 - -
Display 5.7" color resistive touch screen
Keypad 8 keys
Ingress protection - indicator IP 43
Touch-free operation 2 programmable sensors
USB-A 2
Ethernet 10 / 100 Mbit
RS-232 2
Wi-Fi 802.11 b/g/n
IN/OUT 4 x IN, 4 x OUT
Power supply 110 ÷ 230 V AC / 50 ÷ 60 Hz
Operating temperature +15 ÷ +30 °C
Operating temperature change rate ± 0.5 °C / 12 h (± 0.3 °C / 4 h)
Relative humidity variations ± 2% / 4 h
Relative humidity*** 40 ÷ 60%
Transport and storage temperature –20 ÷ +50 °C
Weighing pan dimensions ø 300 mm

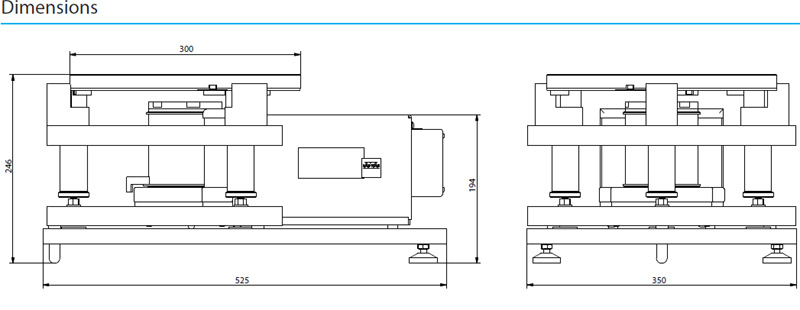

Susceptometer dimensions* 525 x 246 x 350 mm
Indicator dimensions** 206 x 140 x 71 mm
Anti-draft chamber dimensions** 560 x 250 x 350 mm
Net weight 27 kg
Gross weight 53 kg
Packaging dimensions 950 x 750 x 760 mm

* dimensions: length x width x height
** non-condensing conditions

Accessories - Call for more info

Weighing Tables
granite anti-vibration table
anti-vibration table for laboratory balances
professional weighing table
Ambient Conditions
THB-S or THB-P sensor
Peripheral Devices
Epson dot matrix printer
barcode scanner
WD-5/3Y LCD display (backlit)
Cables, Converters
RS-232 – P0108 computer cable
RS-232 – P0167 computer cable
RS-232 – P0151 Epson printer cable
Electrical Accessories
power supply with ZR–02 battery

Dedicated Software (not included) - Call for more info

RMCS System
  • performance of calibration procedures in a laboratory from the moment the order is placed, to the moment of issuing a calibration certificate
  • compatible with THB sensors enabling recording ambient conditions
  • export of report results to various files
  • archiving calibration protocols, orders, certificates and ambient conditions
R-LAB
  • collecting measurements
  • carrying out statistical analysis of measurements
  • customized graphs and reports
    E2R Weighing Records
  • complete, automated databases synchronization
  • fully supported processes of labelling and parts counting
  • record of weighings, weighings archiving
  • basic and advanced (with graphs) reports
    Label Editor R02
  • designing label templates
  • sending graphics and fonts to label printers
  • printing label templates using connected printers
    Pipettes
  • determining measurement errors of pipettes volume
  • accordance with ISO 8655
  • calibration of single and multi-channel pipettes
  • calibration of pipettes of fixed and adjustable volume
    Audit Trail Reader
  • support of Audit Trail function available for 3Y, 4Y, HY10, WLY, WPY series weighing instruments
  • record of operator’s activity from the moment of logging in
    Parameters Editor
  • remote change of parameters
  • remote on-line preview of the display
  • displaying current mass indication
  • software update
  • file loading, editing and saving parameters to a file
  • import and export of parameters
  • interfaces: RS232, Ethernet and Wireless Connection
  • quick and easy edition of balance parameters using computer ways of initializing the process of acquiring data from the weighing instrument and sending it to a computer
  • readout of characters transmitted via RS 232 to a computer
    R. Barcode
  • The basic function software is presentation of the data sent by barcode scanners connected to PC via USB or RS232
    Radwag Development Studio
  • presentation of functions (and subfunctions) of communication protocol (Common Communication Protocol)
  • possibility of connection with weighing equipment on which each function is carried out,
  • library with mass control, contained within the development environment
  • complete documentation of the communication protocol
  • set of user manuals for different solutions addressed for programmers employed in companies using RADWAG-manufactured weighing equipment
    LabView Driver
  • support of RADWAG-manufactured weighing instruments operating in LabView environment
    RADWAG Connect
  • establishing communication with all balances, scales and weighing modules using Common Communication Protocol
  • communication via local network,
  • support of basic functions
  • auto searching for devices
  • connecting with few devices simultaneously, swapping between them
  • clear list of connected platforms
  • record of measurements in the program,
  • export of carried out measurements to CSV file,
  • work performed using freely selected device with Windows 10 operating system
    RADWAG Remote Desktop
  • remote control of the mass comparator using computer, telephone or tablet
  • sending text messages
  • version for Windows 10 and Android systems

* within the 48 continental US States


Optional Accessories


RADWAG RMCS PC software for mass metrology
more info
RADWAG RMCS PC software for mass metrology
more info
Price: $12,496.88
In Stock
btn buy
View Data Sheet (PDF) More about the/RMCS

RMCS system, designed by RADWAG, is dedicated to management of calibrating and testing procedures in a laboratory from the moment of accepting an order, through its progress and until issuing a calibration certificate. The software manages the complete calibrating and testing process.

The operation of mass comparators in connection with the software for network management of calibration process provides improved efficiency, reliable measurement results and complete documentation from calibration process, together with lower labour costs.

The system enables initiating the calibration procedure by ordering a task to a mass comparator, and autonomous executing calibration process on a mass comparator. In both cases, data is transferred to the software for the purpose of registering, controlling and finally issuing a calibration certificate.

Mass comparators linked in the RMCS system autonomously cooperate with THB ambient conditions monitors enabling recording major ambient factors like temperature, humidity and atmospheric pressure throughout the control process. The modules are detachable from the mass comparators for calibration and adjustment of their sensors.

Data on current ambient conditions is displayed in real time on mass comparator’s display. The data is also sent do RMCS software for control and archiving purposes.

System modules:

    Ambient conditions monitoring module:
  • Installed and in direct cooperation with a mass comparator;
  • Enabling recording ambient conditions (temperature, humidity, atmospheric pressure) and calculating air density;
  • Continuous monitoring of ambient conditions in direct vicinity of a mass comparator and its weighing chamber;
  • Graphic presentation of ambient conditions on mass comparator’s display.
    Weighing module:
  • Automatic and manual mass comparators used as components of the RMCS system;
  • Access and management of databases on: standards, test objects, from the level of RMCS software;
  • Execution of calibration tasks ordered in the RMCS software;
  • Self test procedure determining mass comparator’s repeatability parameter;
  • Transfer of measurement results to the software memory.
    Calculating and data storage module:
  • Sending tasks to mass comparators;
  • Downloading data on mass and ambient conditions from mass comparators;
  • Operation on databases of clients / tasks / standards;
  • Monitoring of future calibration dates;
  • Database of accomplished calibrations, printouts and saved documentation.

Software functions:

    RMCS functionality:
  • Complete management of a metrological laboratory calibrating mass standards and weights with application of Y series of RADWAG mass comparators;
  • Calibration using ABBA and ABA methods;
  • Application of MS SQL database for network supervision of multiple computer stands;
  • Complete management of calibration orders;
  • Extended database of mass standards and test objects;
  • Extended database of clients, operators and users;
  • Database of manual and automatic mass comparators;
  • Database of calibration orders;
  • Managing pending tasks based on issued calibration orders;
  • Planning tasks and orders execution;
  • Weight checking procedure without an order – Quick Check option;
  • Manual or automatic calibration of test objects;
  • Cooperation with RADWAG automatic mass comparators;
  • Bilateral data synchronization with RADWAG mass comparators;
  • Reporting from calibration process;
  • Issuing calibration certificates according to pre-defined template;
  • Exporting report results to various file formats: PDF, MS Word, Excel;
  • Record of events;
  • Register of orders and calibration certificates;
  • Saving copies of all calibration protocols, orders, calibration certificates and records of ambient conditions;
  • Secured access to the software – log in procedure using password.
