RADWAG UMA-1000 Automatic Mass Comparator 1060 g x 0.005 mg

Radwag Balances and Scales
Mass comparators of UMA 5 series stand for the highest standard of professional automatic mass comparators. They provide comparison of 1 mg – 5 g weights of E1 and lower classes 1060 g x 0.005 mg more ...
Laboratory Equipment > Analytical Balances > Mass Comparators
RADWAG UMA-1000 Automatic Mass Comparator 1060 g x 0.005 mg

Specifications Chart View Full Detail Page


Call for more info
Capacity x Readability
1060 kgx 0.005 mg
Pan Size
48 mm (Diameter)
Download PDF
RADWAG UMA-1000 Automatic Mass Comparator 1060 g x 0.005 mg
FREE Ground Shipping
(48 US States Only)

Price: $69,765.52


In Stock - Ships within 24 hours

View Features

RADWAG
SKU: UMA-1000

Features

Mass comparators of UMA 5 series stand for the highest standard of professional automatic mass comparators. They provide comparison of 1 mg – 5 g weights of E1 and lower classes. The device is equipped with 36 magazine positions allowing to deposit up to 36 weights. This solution allows to perform either comparison for complete set of weights carried out within one process or comparison for just a few weights of the same mass. Owing to elimination of human factor and with temperature changes and air drafts reduced to zero, UMA automatic mass comparators provide the highest possible measurement repeatability.
  • Effective and Excellent Measurement The UMA series stands for a class-leading automatic mass comparator. These comparators enable comparison of 1 mg - 1000 g weights of class E1 and lower.
  • Comparison of Mass Standard Sets The UMA mass comparator is equipped with either 18-position or 36-position magazine. This universal solution enables comparison of whole weight sets during one process, however using it you can also compare weights of the same mass.
  • Excellent Measurement Repeatability UMA automatic mass comparator, due to the elimination of the human factor, temperature changes and air drafts, guarantees excellent measurement repeatability.
  • Vibration Sensor With vibration sensor placed inside the electronics, the UMA mass comparators analyse and identify vibration sources. The sensor helps to determine whether the recorded vibrations influence the measurement result or not.
  • Dedicated Software Thanks to a user-friendly and functional software the user can prepare complete calibration schedule within just a few minutes.
  • Universal Insert Shape Insert design allows measurement of weight of very small mass with high accuracy and prevents weight jamming. The device enables comparison of weight of various shapes using just one universal insert.
    Functions
  • Mass comparator
  • Ambient conditions measurement
  • Proximity sensors
  • Replaceable units
  • Multilingual menu
Other RADWAG UMA Automatic Mass Comparators
Image Model Capacity x Readability Legal For Trade
Capacity x Readability
(Pan) Size Price More Info

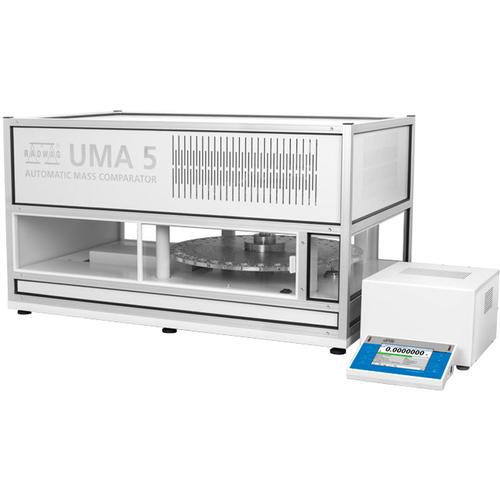

RADWAG UMA-5 Automatic Mass Comparator 5.1 g x 0.0001 mg
UMA-5 RADWAG UMA-5 Automatic Mass Comparator 5.1 g x 0.0001 mg $56,723.04
More Info
5.1 g x 0.0001 mg - 20 mm (Diameter)

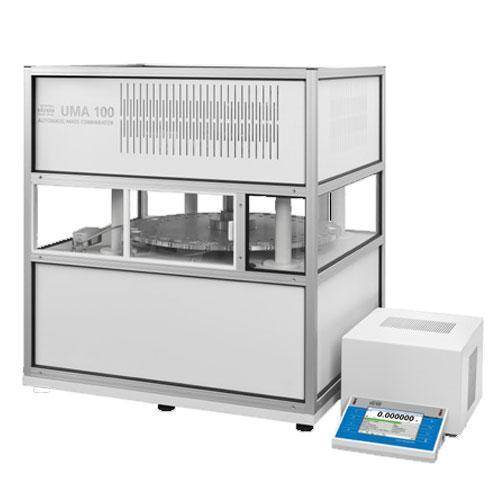

RADWAG UMA-100 Automatic Mass Comparator 110 g x 0.001 mg
UMA-100 RADWAG UMA-100 Automatic Mass Comparator 110 g x 0.001 mg $56,723.04
More Info
110 g x 0.001 mg - 21 mm (Diameter)
RADWAG UMA-1000 Automatic Mass Comparator 1060 g x 0.005 mg
UMA-1000 RADWAG UMA-1000 Automatic Mass Comparator 1060 g x 0.005 mg $69,765.52
More Info
1060 kg x 0.005 mg - 48 mm (Diameter)

Specifications

Model UMA-5 UMA-100 UMA-1000
Capacity x Readability 5.1 g x 0.1 μg (0.0001 mg) 110 g x 1 μg (0.001 mg) 1060 g x 5 μg (0.005 mg)
Repeatability absolute * 0.7μ (5 g) 3μ (100 g) 20μ (1000 g)
Repeatability nominal load * 0.4μ (5 g) 2μ (100 g) 12μ (1000 g)
Repeatability low load * 0.2μ (100 mg) 1.5μ (10 g) 8μ (100 g)
Repeatability typical * 0.3μ (5 g) 1.7μ (100 g) 10μ (1000 g)
Stabilization time 30 s
Adjustment internal
Electric compensation range 0 ÷ 5.1 g – 1 g ÷ 10 g – 10 g ÷ +60 g
Internal supplementary weights - automatic
Eccentricity (for test weight) 0 mg
Magazine positions 36 positions 18 positions
OIML calibration range E1 1 mg ÷ 5 g 1 g ÷ 100 g 100 g ÷ 1000 g
OIML calibration range E2 1 mg ÷ 5 g 1 g ÷ 100 g 10 g ÷ 1000 g
OIML calibration range F1 1 mg ÷ 5 g 1 g ÷ 100 g 10 g ÷ 1000 g
OIML calibration range F2 1 mg ÷ 5 g 1 g ÷ 100 g 10 g ÷ 1000 g
OIML calibration range M1 1 mg ÷ 5 g 1 g ÷ 100 g 10 g ÷ 1000 g
OIML calibration range M2 1 mg ÷ 5 g 1 g ÷ 100 g 10 g ÷ 1000 g
Display 5.7" color resistive touch screen
Keypad 8 keys
Ingress protection - indicator IP 43
Touch-free operation 2 programmable sensors
USB-A 2
Ethernet 10 / 100 Mbit
RS-232 2
Wi-Fi 802.11 b/g/n
IN/OUT 4 x IN, 4 x OUT
Power supply 110 ÷ 230 V AC / 50 ÷ 60 Hz
Operating temperature +15 ÷ +30 °C
Operating temperature change rate ± 0.5 °C / 12 h (± 0.3 °C / 4 h)
Relative humidity variations ±2% / 4 h
Relative humidity*** 40 ÷ 60%
Transport and storage temperature –20 ÷ +50 °C
Weighing pan dimensions ø 20 mm ø 21 mm ø 48 mm
Mass comparator dimensions** 900 x 535 x 585 mm 700 x 775 x 585 mm 700 x 775 x 585 mm
Indicator dimensions** 465 x 187 x 261 mm
Control unit net weight 8 kg
Control unit gross weight 18.5 kg
Mass comparator net weight 102 kg 113.5 kg 115 kg
Mass comparator gross weight 198.5 kg 219.5 kg 221 kg
Control unit dimensions**** 421 x 371 x 421 mm
Mass comparator packaging dimensions** 1200 x 800 x 860 mm 1200 x 1000 x 1150 mm
* repeatability is expressed as a standard deviation determined for 6 ABBA cycles
** dimensions: length x width x height
*** non-condensing conditions
**** control unit (indicator + electronics) is shipped in a separate box
Wi-Fi ® is a registered trademark of Wi-Fi Alliance

Optional Accessories (Please Contact Us)

    Weighing Tables
  • granite anti-vibration table
    Ambient Conditions
  • THB-S or THB-P sensor
    Peripheral Devices
  • Epson dot matrix printer
  • barcode scanner
  • WD-5/3Y LCD display (backlit)
    Cables, Converters
  • RS-232 – P0108 computer cable
  • RS-232 – P0167 computer cable
  • RS-232 – P0151 Epson printer cable
    Electrical Accessories
  • power supply with ZR–02 battery

Optional Dedicated Software (Please Contact Us)

    RMCS System
  • performance of calibration procedures in a laboratory from the moment the order is placed, to the moment of issuing a calibration certificate
  • compatible with THB sensors enabling recording ambient conditions
  • export of report results to various files
  • archiving calibration protocols, orders, certificates and ambient conditions
    RADWAG Remote Desktop
  • remote control of the mass comparator using computer, telephone or tablet
  • sending text messages
  • version for Windows 10 and Android systems
    R-LAB
  • collecting measurements
  • carrying out statistical analysis of measurements
  • customized graphs and reports
    Parameters Editor
  • remote change of parameters
  • remote on-line preview of the display
  • displaying current mass indication
  • software update
  • file loading, editing and saving parameters to a file
  • import and export of parameters
  • interfaces: RS232, Ethernet and Wireless Connection
  • quick and easy edition of balance parameters using computer
