Features
BenchMark SL Series
The BenchMark SL Series offers remarkable precision and a sanitary surface for bench-top weighing. Standard platform sizes of 10 x 10 inches and 12 x 12 inches offer a variety of capacities.
- 304 stainless steel construction
- LifeGuard™ base design isolates load cell from overloads and shock loads for added durability
- Specially designed adjustable support feet provide exceptional traction and won’t scratch surfaces
- NTEP Certified aluminum load cell
882IS Intrinsically-Safe Digital Weight Indicator
The Hazardous Environment Instrumentation Solution
Designed for hazardous locations that are potentially explosive, the 882IS digital weight indicator is built to safely operate in these settings without sacrificing performance. With cFMus, ATEX and IECEx approvals, the 882IS is the industry’s choice for flammable and combustible applications such as fuel refineries, chemical plants, distilleries, textile manufacturing and more.
Safe, Accurate Weight Readings in Hazardous Locations
The intrinsically safe, auto-ranging power supply enables wiring to a single AC conduit line and seal from the safe area. An FM approved, rechargeable battery is also available for isolated power or movable applications.
The 882IS utilizes a backlit LCD display to maintain brilliant visibility for user-friendly operation, even in dimly lit areas. Its stainless steel enclosure provides superior protection from the elements.
FEATURES
- Seven-digit, seven-segment LCD display with white LED backlight
- Stainless steel NEMA IP66 enclosure
- T4 temperature rating
- Front panel digital calibration
- Numeric keypad (882IS Plus only)
- Duplex fiber optic interface
- Power ON/OFF; battery save mode
- I/O module option: one serial port, optional analog outputs, optional fieldbus cards
- FM Entity Approved for use in hazardous locations per Rice Lake Weighing Systems control drawing file numbers 180948, 182301, and 186430
Model IS6V2 (Battery) Hazardous Location Electrical Equipment Per U.S., Canadian, ATEX and IECEx Requirements
| Certificate No: |
FM18US0195X, FM18CA0092X, FM18ATEX0047X, IECEx FMG 18.0018X |
| Approval Standards |
FM/cFM:
INTRINSICALLY SAFE
IS for Class I,II,III, Division 1, Groups ABCDEFG T4
Class I, Zone 0 AEx/Ex ia IIC T4 Ga
Zone 20 AEx/Ex ia IIIC T135°C Da
Ta = -10°C to +40°C (14°F to 104°F)
ATEX/IECEx |
| Equipment Ratings |
II 1 G Ex ia IIC T4 Ga
II1 D Ex ia IIIC T135°C Da |
Weight:
22.00 lb
|
|
Specifications

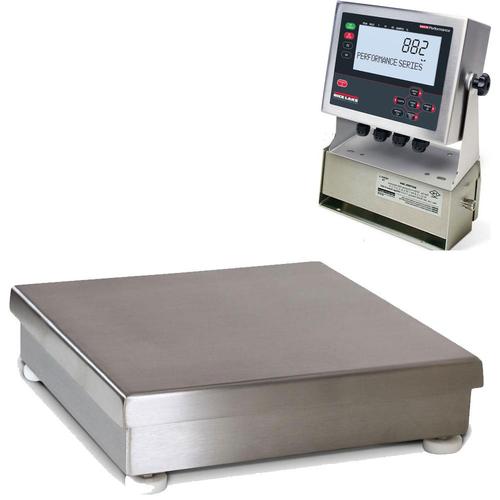

| Rice Lake BenchMark SL - 882IS Explosion Proof Scales
|
| Model |
882IS-18575 |
882IS-18576 |
882IS-18577 |
882IS-18578 |
882IS-18579 |
882IS-32914 |
882IS-32913 |
882IS-35198 |
| Platform Capacity |
2 x 0.0004 lb
1 x 0.0002 kg |
5 x 0.001 lb
2.5 x 0.0005 kg |
10 x 0.002 lb
5 x 0.001 kg |
20 x 0.004 lb
10 x 0.002 kg |
30 x 0.006 lb
15 x 0.003 kg |
30 x 0.006 lb
15 x 0.003 kg |
50 x 0.01 lb
25 x 0.005 kg |
100 x 0.02 lb
50 x 0.01 kg |
| Pan Size |
10 x 10 in |
12 x 12 in |
| Legal For Trade |
- |
Base: NTEP CC 95-072, Class III 5,000 d
Base: Measurement Canada AM-5082, Class III 5,000 d<
Indicator: NTEP CC 19-015 Class III/IIIL 10,000d
Indicator: Measurement Canada AM-6124C
|
| Indicator |
882IS Indicator (Hazardous Area) with Battery pack (Hazardous Area), Charger (Safe Area) & Tilt Stand Part No 185288 |
|
FM Approved |
| Load Cell |
IP66 Aluminum and environmentally sealed |
| Output Impedance |
350 |
| Maximum Overload |
200% |
| Overload Protection |
Shock-absorbing spider |
| Cable Length |
10 ft (3 m) |
| Compensated Temperature Range |
14° F to 104° F (-10° C to 40° C) |
| Warranty |
Two-year limited warranty |
| Dimensions |
10 x 10 x 3.15 in |
12 x 12 x 3.25 in |
|
)
)
)
