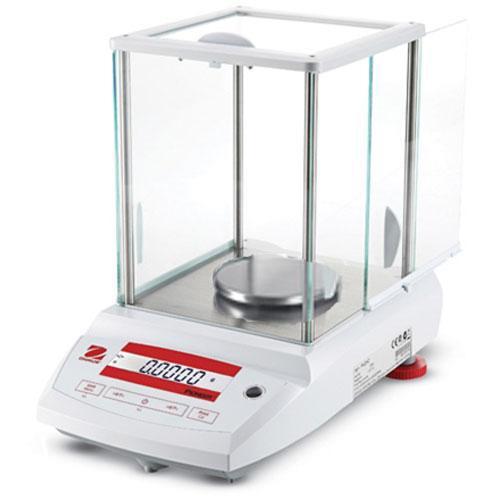

Ohaus PA323/E - Pioneer Precision Balance, 320 g x 1 mg |
|
| The OHAUS Pioneer Series of analytical and precision balances (Internal and Extenal Calibration models) are designed for basic routine weighing in a variety of laboratory, industrial and education applications. With the right combination of performance and features, the OHAUS Pioneer offers uncomplicated performance for all your basic weighing needs. more ... |
|
Laboratory Equipment >
Analytical Balances >
Milligram - 1 mg
|
|
|
|
|
|
Optional Warranty
|
Features
The Best Balance For Basic Weighing!
The OHAUS Pioneer Series of analytical and precision balances are designed for basic routine weighing
in a variety of laboratory, industrial and education applications. Now with both internal and external
calibration models and the right combination of performance and features, the OHAUS Pioneer offers
uncomplicated performance for all your basic weighing needs.
Standard Features Include:
- Easy to Clean Analytical Draftshield – Pioneer’s draftshield is designed with all glass panels, including three sliding doors. All panels are easy to remove and replace, and together with a stainless steel bottom, make it fast and easy to clean.
- Upfront Level Indicator – Pioneer has been designed with an up-front level indicator, so that users can quickly ensure the balance is level prior to use
- Bright Backlit Display — The bright backlit LCD display is easy-to-view in any environment.
- Selectable Environmental Settings – Three filter modes and adjustable zero tracking adjust balance sensitivity to environmental disturbances, or application requirements.
Removable Doors Provide Convenient Access and Easy Cleaning
To address the ease of cleaning requirement often expressed by routine users,
Pioneer’s draftshield has been designed with easy to remove doors and panels.
Disassembly takes just seconds and all components including the balance housing can
be quickly wiped clean.
Periodic cleaning made easy helps avoid sample
contamination and extends product life. In addition,
a standard in-use cover provides added protection
against accidental spillage and helps minimize the
chance of damage to the display and keypad.
Should breakage occur, each replacement door or panel can be installed in
seconds.
Backlit Display Bolsters Visibility
The bright backlit LCD display provides ample lighting, making the display
very easy-to-view in laboratories with dim lighting
Selectable Environmental Settings For Working in
Practically Any Condition
To help adapt the balance to real life working conditions, Pioneer is
designed with selectable environmental settings. When working in harsh
environments, the balance can be adjusted to compensate for vibrations
and other disturbances. Conversely, the balance can be adjusted for working
in slow filling applications where sensitivity is a must.
Standard Features:
- Integral Security Bracket: Allows you to secure your balance to a workstation to prevent unwarranted movement or theft
- RS232 Interface: Pioneer’s RS232 allows connection to an Ohaus printer or a computer. Sends Balance ID plus spaces for recording User ID, Project ID, time and date
- Integral Menu Lock: A combination of software and a mechanical switch locks menus, including calibration
- Weigh-Below Hook: Pioneer’s built-in weigh-below hook allows you to suspend an item below the balance to calculate density/specific gravity
- Up-Front Level Indicator: A quick glance at the up-front level indicator helps to ensure that the balance is level prior to each use
- Multiple Application Modes and Units: Pioneer features basic weighing, parts counting and percent weighing, density weighing, and dynamic weighing and 15 international weighing units including one custom unit
- Backlit Display: Enables optimal viewing of results in various lighting conditions
Other Standard Features and Equipment
Fixed integral weigh below hook, user selectable span calibration points, software rest menu, stability
indicator, auto tare, user selectable communication setting, user selectable printing options, up-front level
indicator, menu and calibration locks, mechanical and software overload/underload protection, integral
weigh below hook, security bracket, stainless steel platform, backlit LCD
Weight:
16.00 lb
|
2 Year Manufacture Warranty
|
Other Ohaus Pioneer Plus Precision Balances,
| Image |
Name |
Price |
|
|
$1,050.00
|
|
|
$1,130.00
|
|
|
$900.00
|
|
|
$1,250.00
|
|
|
$1,285.00
|
|
|
$1,495.00
|
|
|
$865.00
|
|
|
$1,075.00
|
|
|
$1,170.00
|
|
|
$985.00
|
|
|
$795.00
|
|
|
$950.00
|
|
|
$1,375.00
|
|
|
$1,140.00
|
|
|
$1,295.00
|
|
|
$1,500.00
|
|
|
$910.00
|
|
|
$1,100.00
|
|
Specifications
Models with
Internal Calibration |
PA84 |
PA124 |
PA224 |
PA163 |
PA323 |
PA523 |
PA1602 |
PA2202 |
PA3202 |
PA4202 |
PA2201 |
PA4201 |
Models with
external Calibration |
PA84C |
PA124C |
PA224C |
PA163C |
PA323C |
PA523C |
PA1602C |
PA2202C |
PA3202C |
PA4202C |
PA2201C |
PA4201C |
| Capacity x Readability (g) |
85 x 0.0001 |
12 x 0.0001 |
220 x 0.0001 |
160 x 0.001 |
320 x 0.001 |
520 x 0.001 |
1600 x 0.01 |
2200 x 0.01 |
3200 x 0.01 |
4200 x 0.01 |
2200 x 0.1 |
4200 x 0.1 |
| Repeatability std (g) |
0.0001 |
0.001 |
0.01 |
0.1 |
| Repeatability std (g) |
0.0002 |
0.0003 |
0.002 |
0.02 |
0.1 |
| Application Modes |
Weighing, Parts Counting, Percent Weighing, Animal/Dynamic Weighing, Density Determination |
| Weighing Units |
mg, g, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal, Newton, ozt, custom unit |
g, kg, lb, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal, Newton, ozt, custom unit |
| Platform Size |
3.54 in / 9 cm diameter |
4.72 in / 12 cm diameter |
7.1 in / 18 cm diameter |
| Cal Weight-Span |
50,80g |
50,100g |
100,200g |
100,150g |
200g,300g |
200,500g |
1,1.5kg |
1,2kg |
2,3kg |
2,4kg |
1,2kg |
2,4kg |
| Cal Weight-Linearity |
20/60g |
50/100g |
100/200g |
100/150g |
150/300g |
200,500g |
1/1.5kg |
1/2kg |
1.5/3kg |
2/4kg |
1/2kg |
2/kg |
| Taring Time |
1 second |
| Stabilization Time |
3 seconds |
| Draftshield |
7.3 in / 18.5 cm inside height |
- |
| Operating Conditions |
50° F / 10° C to 104° F / 40° C at 10% to 80% relative humidity, non-condensing, up to 4000m above sea level |
| Storage Temperature |
-40° F / -40° C to 158° F / 70° C at 10% to 80% relative humidity, non-condensing |
| Net Weight |
10.0 lb / 4.5 kgt |
7.3 lb / 3.3 kg |
| Shipping Weight |
15.2 lb / 6.9 kg |
11.8 lb / 5.4 kg |
| Balance Dimensions W × H × D |
7.7 × 11.3 × 12.6 in
19.6 × 28.7 × 32 cm |
7.7 × 3.6 × 12.6 in
19.6 × 9.2 × 32 cm |
| Carton Dimensions W × H × D |
19.5 × 15.5 × 20.6 in
49.5 × 39.5 × 52.2 cm |
19.5 × 15.5 × 12.8 in
49.5 × 39.5 × 32.7 cm |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus 80252581 Cable for 802521992 Thermal Printer
RS232 Cable & Adapter, (used with 80251992 Printer) for Ranger and Ranger Count, Pioneer, MB23, MB25, MB35, MB45, Adventurer Pro, Discovery, T31P, T51P and T71P
|
|
more info
|
Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P
Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P
|
|
more info
|
Ohaus 83020221 - In-Use Display Cover for Pioneer Balances
In-Use Display Cover for Pioneer Balances
|
|
more info
|
Ohaus STP-103 Palm-Sized Thermal Printer
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
|
|
more info
|
Ohaus SF40A (30064203) Portable Dot-Matrix Impact Printer
OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
- Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
- Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
- Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
|
|
more info
|
Ohaus 80253384 Solids Density Determination Kit for Ohaus new Explorer and Discovery
Ohaus 80253384 Solids Density Determination Kit for Ohaus new Explorer and Discovery
|
|
more info
|
Ohaus 80850000 Security Device (76288-01)
Security device for Ohaus Adventurer
|
|
more info
|
Ohaus SW12W TAL Win Wedge Software (80850080)
TAL Software Win Wedge V1.2 for Ohaus balances
|
|
|
|
|
|
|
|
|
