Imada LV-220 Vertical Manual Lever Test Stand, Tension/Meter |
|
Vertical lever operated test stand with 220 lb maximum load - distance meter available. Models for either compression or tension testing more ... |
Test Equipment >
Force Test Stands >
Manual Test Stands
|
|
|
|
Features
|
with distance meter |
without distance meter |
Price |
$1075 |
$675 |
Compression Tester |
LV-220CS |
LV-220C |
Tension Tester |
LV-220TS |
LV-220T |
- Standard Compression and Tension models both operate with a single downward lever stroke
- Maximum load 220 lbs (100 kg)
- Stroke 4
- Maximum clearance 5 (or 10 with optional extender plate)
Distance Meter Specifications
Display |
Push button for inch/mm, zero set and on/off |
Resolution |
0.0005/0.01 mm |
Accuracy |
0.1% of reading or 0.005/0.1mm, whichever is greater |

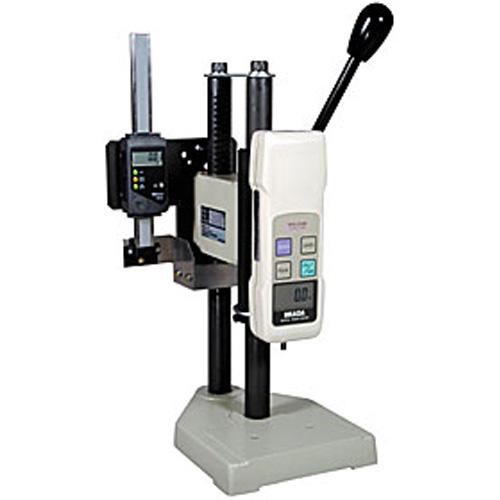

Movel LV-220S/LV-220 Vertical Manual Lever Test Stands provide maximum versatility and reliability. LV-220S is equipped with a precision digital distance meter. The stands will accommodate any of the standard range Imada force gauges. The optional extender plate increases clearance to 10 for larger samples. LV-220/LV-220S are perfect for crimp tests and other applications. Lever action provides quick, consisten testing.
The compression version (C type) employs a return spring for easier sample placement and convenience in testing.
The LV-220 test stands will accept any of the standard capacity Imada force gauges while providing a convenient, reliable, and easy to use means of performing consistent force measurements. The LV-220S model is equipped with a digital distance meter. The standard compression model can be converted to tension, and the unique modular design of this stand allows the force gauge mounting plate to be located on either the front of the stand or on the back for virtually unlimited clearance. The optional extender plate will double the front clearance.
Weight:
30.00 lb
|
|
