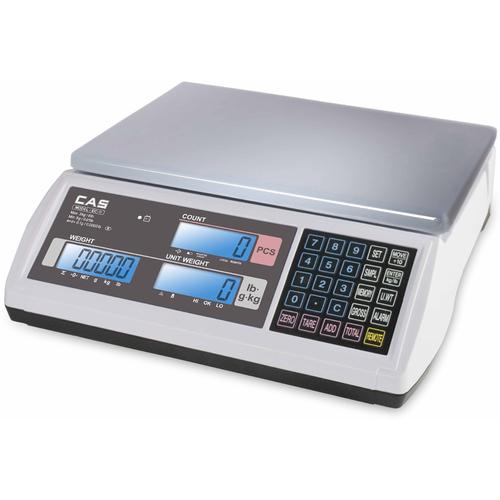

CAS EC2-30 Dual Channel Counting Scale 30 x 0.001 lb |
|
| Designed with CAS reliability, the EC-2 Series Counting Scale stands alone its field. High accuracy and simple to use. Optional label or receipt printer. Great for use in manufacturing, parts shops, hardware stores, etc. more ... |
|
Industrial Scales >
Counting Scales >
Dedicated Counting Scales
|
|
|
|
|
|
Features
Designed with CAS reliability, the EC-2 Series Counting Scale stands alone its field. High accuracy and simple to use. Optional label or receipt printer. Great for use in manufacturing, parts shops, hardware stores, etc.
The EC-2 provides the features you need for counting and weighing and is available in four capacities from six to sixty pounds. Connect to a second platform to expand your capacity.
- 6, 15, 30, and 60 lb capaciities
- Easily Connects Second Platform to Expand Capacity
- Save Up to 200 Presets
- Up to 4 External Devices can be used simultaneously
- Lb/kg or Lb/g Switchable
- Dual channel for second platform (up to 10 tons - 4 load cell platform)
- Soft touch tact keyboard
- Large easy to read LCD display
- Three backlight colors as HI/OK/LO indicators
- Rechargeable Battery Included
- Accumulation mode
- Negative counting
- Key command function
OPTIONS
- Light Tower
- RP Series Remote Platform
- HFS Series Floor Scale
- DEP-50 Receipt Printer
- DLP-50 Label Printer
WEIGHT/COUNT COMPARISON FUNCTION
Set the weight or count range and the EC-2 will indicate whether the actual weight or count is HI, LO, or OK, with alarm beep sounds and color display indicators. The optional Light Tower offers a larger visual alternative
LABEL & RECEIPTS
Connect the EC-2 Dual Channel Counting Scale to the optional DEP-50 Receipt Printer or DLP-50 Label Printer. Print the data, weight, unit weight, quantity, tare, gross, item number, & item name (ASCII code).
Weight:
10.00 lb
|
|
Other CAS EC-2 Series Dual Channel Counting Scales
| Image |
Name |
Price |
|
|
$415.00
|
|
|
$415.00
|
|
|
$415.00
|
|
|
$415.00
|
|
Specifications
| Model |
EC2-6 |
EC2-15 |
EC2-30 |
EC2-60 |
| Weighing Capacity |
6 x 0.0002 lbs |
15 x 0.0005 lbs |
30 x 0.001 lbs |
60 x 0.002 lbs |
| 3 x 0.0001 kg |
6 x 0.0002 kg |
15 x 0.0005 kg |
30 x 0.001 kg |
| 3,000 x 0.1 g |
6,000 x 0.2 g |
15,000 x 0.5 g |
30,000 x 1 g |
| External Resolution |
1/30,000 |
| Internal Resolution |
600,000 |
| Display Type |
LCD |
| Stabilization Time |
< 2 Seconds |
| Weight Units |
g/kg/lb |
| Zero Range |
±2% (Zero Range), ±10% (Inital Zero Range) |
| Tare Range |
Full Capacity by Subtraction |
| Interface |
RS-232C |
| Safe Overload |
120% of Capacity |
| Operating Temp. |
-10° C ~ 40° C / 14° F ~ 104° F |
| Power Source |
AC Adapter DC 12V / 850 mA
Rechargeable Battery - 6V, 5Ah |
| Battery Life |
80 hrs continuous use w/12 hr recharge time |
| Platter Size (inch/mm) |
12 (W) x 8.7 (D) / 306 (W) x 222 (D) |
| Dimensions (inch/mm) |
13 (W) x 13.6 (D) x 4.2 (H) / 330 (W) x 346 (D) x 107 (H) |
| Product Weight |
9.9 lbs |
|
|
|
|
|
|
|
|
|
|
|
|
|
