Mark-10 EKM5-200 Myometer Kit Ergonomic Testing Systems 200 lb
The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals. more ...

Scales > Force Gauge > Force Gauge

Mark-10 EKM5-200 Myometer Kit Ergonomic Testing Systems 200 lb

Specifications Chart View Full Detail Page

Download PDF

Features

The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals. Force Gauge Features & Specifications

Measures real time, average, and peak pull and push forces
200 lbF (1,000 N) force capacity
Accuracy of ¡Ó0.1% of full scale
Sampling rate of 7,000 Hz
USB, RS-232, and analog outputs
High / low limit indicators, for pass / fail and minimum force testing
1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESURR Lite data collection software.
Includes a full set of accessories and software - details on next page
Force gauge is compatible with other Mark-10 grips and attachments

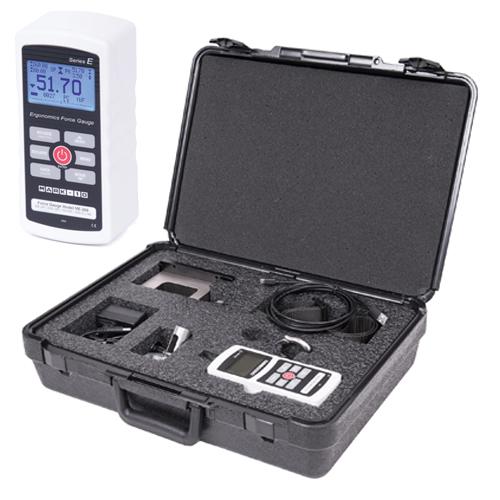

Included Items

M5-200 Advanced Force Gauge
Carrying case
Tabletop mounting kit for force gauge, for vertical or horizontal orientations

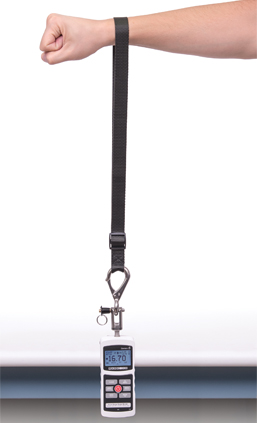

Adjustable length looped strap
Clevis and clasp hook attachments
AC adapter/charger
MESURR Lite data collection software - details below
USB cable
NIST-traceable certificate of calibration with data

MESUR® Lite Software (Included)

Acquires and tabulates continuous, single-point, or saved data from the force gauge
One-click export to Excel
Configurable start and stop test triggers
Configurable number of readings per second, for continuous data acquisition

Weight: 14.00 lb

Other Mark 10 EK5 Ergonomics testing Kits

Mark-10 EK5-100
Ergonomics testing kit
100 lb capacity
$1,182.75

Mark-10 EK5-200
Ergonomics testing kit
200 lb capacity
$1,277.75

Mark-10 EKM5-200
Myometer Kit Ergonomic Testing Systems 200 lb
$1,420.25

You are viewing this product

Specifications

Model	EKE5-200
Capacity x Resolution:	200 x 0.05 lbF 3200 x 1 ozF 100 x 0.02 kgF 1000 x 0.2 N 1 x 0.0002 kN
Accuracy	± 0.1% of full scale
Sampling Rate	7,000 Hz
Units of Measurement	lbF, ozF, kgF, N, KN
Output	USB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Averaging mode	Yes
On-board memory & statisics	Yes
Continuous Data Captur	Yes
Accessory Mounting	Click-Lock Technology
Safe overload:	200% of full scale (display shows “OVER” at 110% and above)
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Warranty	3 years (see individual statement for further details)
