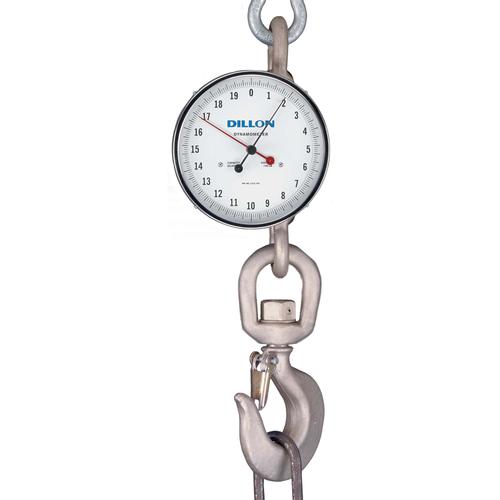

Dillon AP Crane Scale 30387-0034, 10000 x 50 kg

With tare capacity, ultra-tough construction, max load indicator, dust protection, protective finish, anti-parallax dial and pointer and more. Kilogram versions also available. 500 to 50,000 pound capacities more ...
Industrial Scales > Crane Scales & Dynamometers > Mechanical Crane Scales
Dillon AP Crane Scale 30387-0034, 10000 x 50 kg

View Full Detail Page


Call for more info
Capacity x Readability
10000 kgx 50 kg
Download PDF
Dillon AP Crane Scale 30387-0034, 10000 x 50 kg
FREE Ground Shipping
(48 US States Only)

We offer Discounts
On All
Dillon AP Crane Scales
For a Best Price Please
Call Us (800)832-0055 or Email Us


Price: $6,395.00


In Stock - Ships within 24 hours

View Features

Dillon
SKU: 30387-0034

Features

Proven reliability and performance

  • Accuracy: to +/-0.5% of full scale
  • Tare adjustment: up to 20% of full scale range
  • Ultimate safety factor: 5:1 (4:1 for 20,000 lb, 50,000 lb, 10,000 kg and 20,000 kg)
  • Dial diameter: 10
  • Scale length: (from inside of eye to inside of hook)
    • Low Range: 25-1/2
    • Medium Range: 29-3/4
    • High Range: 37-1/2

Available in low, intermediate and high range models in either pound or kilogram models: 13 capacities from 500 to 50,000 pounds and 9 capacities from 200 to 20,000 kg.

Anti-parallax dial and pointer - easy to read even at an angle

Tare capability - tare loads up to 20% of caqpacity can be zeroed out with zero control

Dust protection - pinion gear, sector gear and shafts are mounted in precision aircraft bearings, permanently sealed against dust and dirt. Oiling is never required

Tough construction - mechanism case is a heavy aluminum allow casting, tough enough to resist even heavy blows

Ingenious design - utilizes a specially designed allow steel beam that translates force to pounds. Full scale reading results from beam deflection of only 0.026. Applied loads are indicated instantly.

Reduced wear - pinion and sector gears are cut from stainless steel and hardened aluminum. Use of these dissimilar materials greatly reduces friction and wear

Protective finish - scale cases are coated with a baked-on powder paint process making them resistant to chips, scratches, rust and corrosion

Maximum indicator - remains in position to indicate peak load point after load is removed from the scale

Ships with crane scale, swivel hook, shackle assembly, maximum pointer, zero adjust, wooden shipping/storage crate and calibration certificate

Part Number

Capacities & Dial Divisions (lb)

Part Number

Capacities & Dial Divisions (kg)

Length (in inches)

Net/Gross Weight (in lbs)

LOW

30008-0017

500 x 2

30008-0090

200 x 1

25.5

28 / 62

30008-0025

1000 x 5

30008-0108

500 x 2

25.5

28 / 62

30008-0033

2000 x 10

30008-0116

1000 x 5

25.5

28 / 62

30008-0041

4000 x 20

30008-0124

2000 x 10

28 / 62

$820

30008-0058

5000 x 20

n/a

n/a

25.5

28 / 62

30008-0066

6000 x 25

n/a

n/a

25.5

28 / 62

30008-0074

8000 x 50

30008-0132

4000 x 20

25.5

28 / 62

30008-0082

10,000 x 50

30008-0140

5000 x 20

25.5

28 / 62

MED

30387-0018

15,000 x 100

n/a

n/a

29.75

48 / 83

30387-0026

*20,000 x 100

30387-0034

*10,000 x 50

29.75

48 / 83

HIGH

30361-0018

30,000 x 200

30361-0042

15,000 x 100

37.5

140 / 175

30361-0026

40,000 x 200

30361-0059

*20,000 x 100

37.5

140 / 175

30361-0034

*50,000 x 200

n/a

n/a

37.5

140 / 175

*4:1 ultimate safety factor - all other models have 5:1 ultimate safety factor

Other Dillon Crane Scale in kg
Image Model Capacity x Readability Legal For Trade
Capacity x Readability
(Pan) Size Price More Info
Dillon AP Crane Scale 30008-0090, 200 x 1 kg
30008-0090 Dillon AP Crane Scale 30008-0090, 200 x 1 kg $1,105.00
More Info
200 kg x 1 kg -
Dillon AP Crane Scale 30008-0108, 500 x 2 kg
N/A
30008-0108 Dillon AP Crane Scale 30008-0108, 500 x 2 kg
N/A
More Info
500 kg x 2 kg -
Dillon AP Crane Scale 30008-0116, 1000 x 5 kg
30008-0116 Dillon AP Crane Scale 30008-0116, 1000 x 5 kg $1,649.00
More Info
1000 kg x 5 kg -
Dillon AP Crane Scale 30008-0124, 2000 x 10 kg
30008-0124 Dillon AP Crane Scale 30008-0124, 2000 x 10 kg $2,740.00
More Info
2000 kg x 10 kg -
Dillon AP Crane Scale 30008-0140, 5000 x 20 kg
30008-0140 Dillon AP Crane Scale 30008-0140, 5000 x 20 kg $2,965.00
More Info
5000 kg x 20 kg -
Dillon AP Crane Scale 30387-0034, 10000 x 50 kg
30387-0034 Dillon AP Crane Scale 30387-0034, 10000 x 50 kg $6,395.00
More Info
10000 kg x 50 kg -
Dillon AP Crane Scale 30361-0042, 15000 x 100 kg
30361-0042 Dillon AP Crane Scale 30361-0042, 15000 x 100 kg $8,650.00
More Info
15000 kg x 100 kg -
Dillon AP Crane Scale 30361-0059, 20000 x 100 kg
30361-0059 Dillon AP Crane Scale 30361-0059, 20000 x 100 kg More Info
20000 kg x 100 kg -
