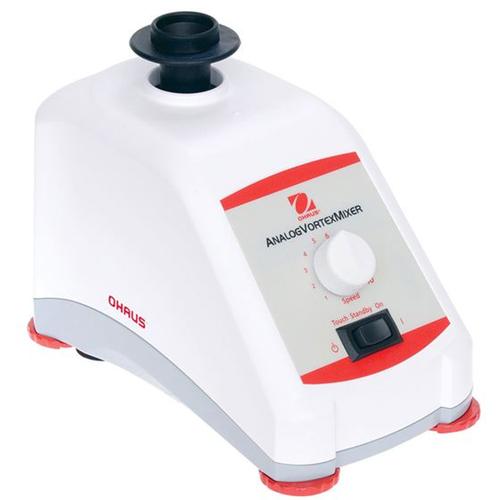

Ohaus VXMNAL Analog Mini Vortex Mixer - 300 rpm – 3200 rpm |
|
| Four Mini Vortex Mixer models for gentle to high-speed mixing are available. Analog model offers variable speed control, and digital model allows input of the exact speed and time to achieve reproducible results. Pulsing model features a unique pulse action that reduces heat generation, while providing more effective mixing and cell disruption. Fixed speed model offers one-touch, high-speed mixing more ... |
|
Laboratory Equipment >
Vortex Mixers >
Vortex Mixers
|
|
|
|
|
|
Features
Four Mini Vortex Mixer models for gentle to high-speed mixing are available. Analog model offers variable speed control, and digital model allows input of the exact speed and time to achieve reproducible results. Pulsing model features a unique pulse action that reduces heat generation, while providing more effective mixing and cell disruption. Fixed speed model offers one-touch, high-speed mixing.
Applications
Re-Suspending Liquids, Mixing Reagents, Buffers and Emulsions, ELISA Assay, Drug Extractions, Mixing Samples
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cup head and 3-inch accessory platform for beakers, flasks, test tubes etc. (included with all models), stainless steel microtube holder for 12 tubes (pulsing models)
Design Features
Microprocessor-control to maintain set speed for consistent mixing action (digital models), 230V models have a maximum speed of 2500 rpm
| Control |
Analog |
| Duty Rating |
Intermittent |
| Orbit {metric} |
0.2 in (4.9 mm) |
| Speed Range |
300 rpm – 3200 rpm |
| Dimensions (HxLxW) |
6.5 in x 8.3 in x 4.8 in (16.5 cm x 21 cm x 12.3 cm) |
| Net Weight |
9.7 lb (4.4 kg) |
| Power |
120V, 1.2A, 50/60Hz |
| Power Consumption |
135 W |
| Safety Certification |
TUV |
| Working Environment |
39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing) |
Weight:
10.00 lb
|
|
Other Ohaus Vortex Mixers - Mini
|
Specifications
|
VXMNFS
30392108 |
VXMNAL
30392115 |
VXMNDG
30392122 |
VXMNPS
30392129 |
| Control |
Fixed Speed |
Analog |
Digital |
Pulsing, digital |
| Speed Range |
3200 rpm |
300 rpm – 3200 rpm |
500 rpm – 3000 rpm |
500 rpm – 3000 rpm |
| Orbit |
4.9 mm (0.19 in.) |
2.5 mm (0.098 in.) |
| Duty Rating |
Intermittent |
| Working Environment |
39 °F – 104 °F, 20% – 85% relative humidity, non-condensing |
| Power |
120V, 1.2A, 50/60Hz |
| Power Consumption |
135 W |
| Dimensions (W × L × H) |
4.8 × 8.3 × 6.5 in. / 123 × 210 × 165 mm |
| Net Weight |
9 lb / 4.4 kg |
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
