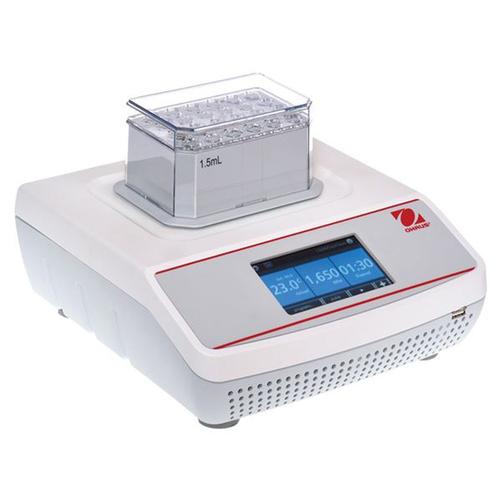

Ohaus ISTHBLCTS Thermal Heat / Cool Orbital Shaker - 17°C below Ambient – 100°C |
|
| Thermal Shakers are designed for applications that require consistent and precise high-speed shaking with temp. control to 100°C. With heating & shaking capabilities, our shakers use interchangeable blocks to accommodate tubes & microplates. Intuitive LCD touchscreen allows the user to save & track progress of 5 user-defined programs, each with 5 individual steps. Enhanced electronics provide dependable temp. settings across the operating range more ... |
|
Laboratory Equipment >
Shakers >
Incubating and Incubating Cooling Shakers
|
|
|
|
|
|
Features
Thermal Shakers are designed for applications that require consistent and precise high-speed shaking with temp. control to 100°C. With heating & shaking capabilities, our shakers use interchangeable blocks to accommodate tubes & microplates. Intuitive LCD touchscreen allows the user to save & track progress of 5 user-defined programs, each with 5 individual steps. Enhanced electronics provide dependable temp. settings across the operating range.
Applications
DNA, RNA, Cell Cultures, Hybridizations, Protein Studies
Display
4.3 inch (10.9 cm) color touchscreen Liquid Crystal Display (LCD) which can be programmed in six languages
Operation
Detachable 3-wire cord and plug (included), unit requires a block (1.5 ml block included) - compatible with Eppendorf Thermomixer® R blocks
Communication
USB port provides greater flexibility in data collection and transfer
Construction
Valox cool touch housing, removable plastic rack, cover and screwdriver for block removal (included)
Design Features
Hot top indicator, audible alarm, maximum temperature limiting function, temperature priority function, pulse/quick mix mode, temperature calibration mode, temperature ramp rate function
| Motion |
Orbital, 3 mm |
| Capacity |
1 Thermal block |
| Temperature Range |
17°C below Ambient – 100°C |
| Calibration |
Temperature calibration |
| Communication |
USB |
| Control |
Touch |
| Dimensions (HxLxW) |
5.2 in x 10.25 in x 9.75 in (13.2 cm x 26 cm x 24.8 cm) |
| Drive System |
Brushless DC Motor |
| Heating Rate |
5°C/min |
| Cooling Rate |
Above ambient 2-3°C/min |
| Net Weight |
10.8 lb (4.9 kg) |
| Orbit {metric} |
0.1 in (3 mm) |
| Power |
120V, 1.8A, 50/60Hz |
| Power Consumption |
215 W |
| Safety Certification |
TUV |
| Speed Accuracy |
±2% |
| Speed Range |
300 rpm – 3000 rpm |
| Temperature accuracy (±) |
+/- 0.5°C between 20°C and 45°C;+/-2°C below 20°C and 45°C |
| Timer |
1 second – 99 hours, 59 minutes |
| Working Environment |
41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing) |
Weight:
11.00 lb
|
|
Other Ohaus Incubating Light Duty Orbital Shakers
|
|
| |
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|

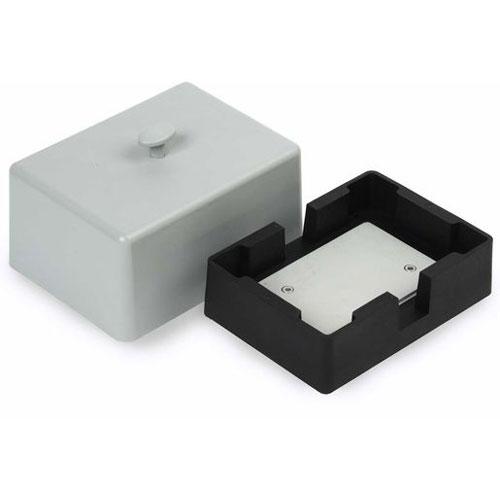

Ohaus 30400126 Microplate Thermal Block
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
1 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
16.3 cm (6.4 in) |
| Dimensions (Length) |
11.9 cm (4.7 in) |
| Dimensions (Height) |
7.7 cm (3.0 in) |
| Country of origin |
US |
|
|
more info
|
Ohaus 30400127 384 Well PCR Plate Thermal Block
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
384 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
7.7 cm (3.0 in) |
| Dimensions (Length) |
16.3 cm (6.4 in) |
| Dimensions (Height) |
11.9 cm (4.7 in) |
| Country of origin |
US |
|
|
more info
|

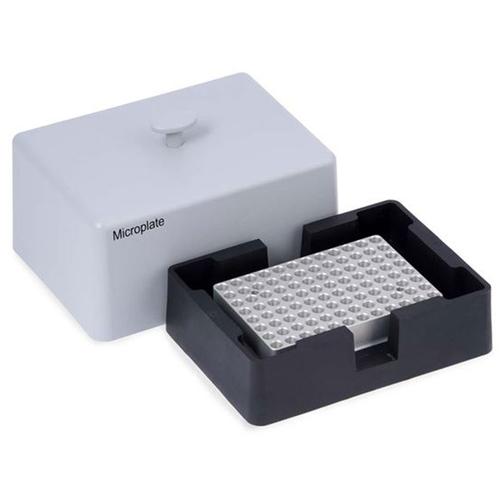

Ohaus 30400128 0.2 mL PCR Plate/Tube Thermal Block
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
1 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
16.3 cm (6.4 in) |
| Dimensions (Length) |
11.9 cm (4.7 in) |
| Dimensions (Height) |
7.7 cm (3.0 in) |
| Country of origin |
US |
|
|
more info
|
Ohaus 30400129 Block For 30 X 0.5 mL Tubes
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
30 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
4.6 cm (1.8 in) |
| Dimensions (Length) |
14.2 cm (5.6 in) |
| Dimensions (Height) |
10.2 cm (4.0 in) |
| Country of origin |
US |
|
|
more info
|

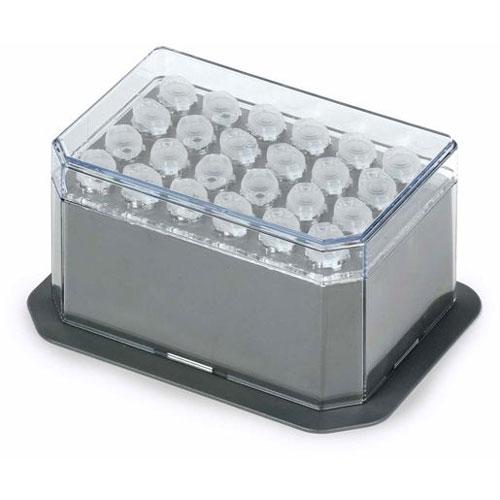

Ohaus 30400130 Block For 24 X 1.5 mL Tubes
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
24 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
5.3 cm (2.1 in) |
| Dimensions (Length) |
14.2 cm (5.6 in) |
| Dimensions (Height) |
10.2 cm (4.0 in) |
| Country of origin |
US |
|
|
more info
|
Ohaus 30400131 Block For 24 X 2.0 mL Tubes
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
24 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
5.3 cm (2.1 in) |
| Dimensions (Length) |
14.2 cm (5.6 in) |
| Dimensions (Height) |
10.2 cm (4.0 in) |
| Country of origin |
US |
|
|
more info
|
Ohaus 30400132 Block For 24 X 5-7 mL Tubes (12mm)
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
24 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
5.6 cm (2.2 in) |
| Dimensions (Length) |
14.2 cm (5.6 in) |
| Dimensions (Height) |
10.2 cm (4.0 in) |
| Country of origin |
US |
|
|
more info
|
Ohaus 30400133 Block For 24 X 2.0 mL Cryotubes
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
24 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
14.2 cm (5.6 in) |
| Dimensions (Length) |
10.2 cm (4.0 in) |
| Dimensions (Height) |
5.6 cm (2.2 in) |
| Country of origin |
US |
|
|
more info
|

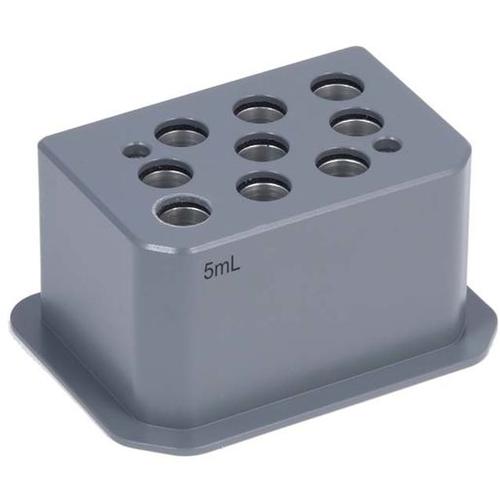

Ohaus 30400134 Block For 9 X 5mL Eppendorf Tubes
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
9 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
14.7 cm (5.8 in) |
| Dimensions (Length) |
10.67 cm (4.2 in) |
| Dimensions (Height) |
12.7 cm (5.0 in) |
| Country of origin |
US |
|
|
more info
|

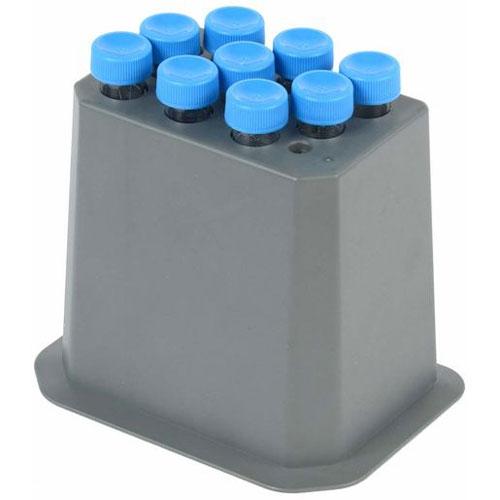

Ohaus 30400135 Block For 9 X 15 mL Conical Tubes
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
9 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
14.7 cm (5.8 in) |
| Dimensions (Length) |
10.67 cm (4.2 in) |
| Dimensions (Height) |
12.7 cm (5.0 in) |
| Country of origin |
US |
|
|
more info
|

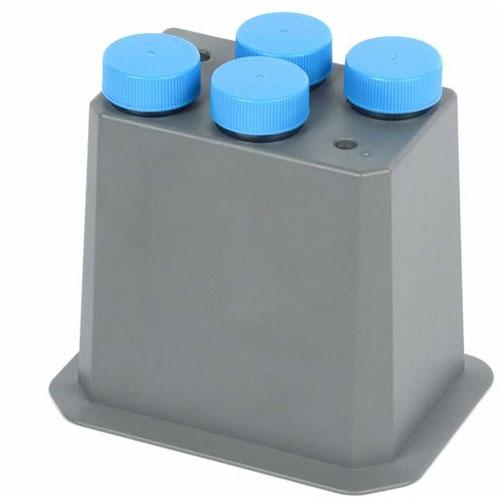

Ohaus 30400136 Block For 4 X 50 mL Conical Tubes
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place.
Applications
Cell Cultures, Bacterial and Yeast Cultures, Immunoassays, Protein Studies, Blotting Techniques, Staining and Destaining Gels. Solubility Studies, Extraction Procedures, DNA, RNA, Hybridizations, Enzyme Reactions, ELISA Assays
Operation
All accessories include the hardware required to mount to shakers
| Type |
Block |
| Capacity (text) |
4 |
| Material |
Valox 357 Plastic |
| Dimensions (Width) |
14.5 cm (5.7 in) |
| Dimensions (Length) |
10.2 cm (4.0 in) |
| Dimensions (Height) |
12.2 cm (4.8 in) |
| Country of origin |
US |
|
|
|
|
|
|
|
|
|
