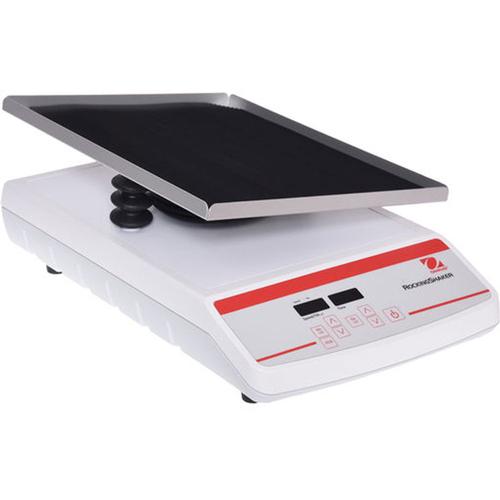

Ohaus SHRK04DG Digital Rocking Shaker - 10 lbs (4.5 kg) |
|
| OHAUS Rocking and Waving Shakers are designed for use in a range of lab applications in a variety of environmental conditions. Rocking Shakers provide a seesaw-like motion, while Waving Shakers offer a smooth, low-foaming, 3D wave motion for precise speed control. Available in microprocessor-controlled digital models and more economical analog models. All models include a non-slip mat, and most models are available with a stacking tray option more ... |
|
Laboratory Equipment >
Shakers >
Open Air Shakers
|
|
|
|
|
|
Features
OHAUS Rocking and Waving Shakers are designed for use in a range of lab applications in a variety of environmental conditions. Rocking Shakers provide a seesaw-like motion, while Waving Shakers offer a smooth, low-foaming, 3D wave motion for precise speed control. Available in microprocessor-controlled digital models and more economical analog models. All models include a non-slip mat, and most models are available with a stacking tray option
Applications
Mixing Blood Samples, DNA Extractions, Blotting Techniques, Staining and Destaining Gels, Hybridizations
Display
Easy-to-read, independent LED displays for speed, tilt angle and time allow the operator to view all settings simultaneously (digital models) and basic control knobs with dial markings for speed, tilt angle and time (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cast aluminum housing, non-slip rubber mat (included), stacking tray option (with all models except the analog Waver model)
Design
Spill-resistant design, overload protection with audio/visual alarm on digital models and audible alarm on analog models
| Motion |
Rocking, 0 – 15° |
| Capacity |
10lbs (4.5 kg) |
| Tray Size (LxLxWxW) |
12.75 in x 32.4 cm x 10 in x 25.4 cm |
| Control |
Digital |
| Drive System |
Stepper Motor |
| Dimensions (HxLxW) |
5.5 in x 16.8 in x 10 in (14 cm x 42.5 cm x 25.4 cm) |
| Net Weight |
6.6 lb (3 kg) |
| Power |
120V, 5A, 50/60Hz |
| Power Consumption |
25 W |
| Safety Certification |
TUV |
| Tilt Angle |
0 – 15° |
| Speed Range |
1 rpm – 50 rpm |
| Timer |
1 second – 160 hours |
| Tray Construction |
Aluminum |
| Working Environment |
14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing) |
Weight:
15.00 lb
|
|
Other Ohaus Rocking and Waving Shakers
|
Specifications
| Model |
SHRK07AL1 |
SHRK07AL2 |
SHRK04DG |
SHWV02AL |
SHWV02DG |
| Control |
Analog |
Analog |
Digital |
Analog |
Digital |
| Motion / Tilt Angle |
Rocking / 0 – 15° |
Rocking / 0 – 15° |
Rocking / 0 – 15° |
Waving / 0 – 16° |
Waving / 0 – 20° |
| Speed Range |
1 – 75 rpm |
1 – 75 rpm |
1 – 50 rpm |
1 – 75 rpm |
1 – 30 rpm |
| Timer |
1 minute – 120 minutes |
1 second – 160 hours |
1 minute – 120 minutes |
1 second – 160 hours |
| Capacity |
16 lb / 7.3 kg |
10 lb / 4.5 kg |
5 lb / 2.3 kg |
| Working Environment |
14 °F – 140 °F, 80% Relative Humidity, non-condensing / -10 °C – 60 °C, 80% Relative Humidity, non-condensing |
| Drive System |
Stepper Motor |
| Tray Size (L × W) |
14 in. x 11 in.
356 x 279 mm |
12.75 in. x 10 in.
324 x 254 mm |
14 in. x 11 in.
356 x 279 mm |
11.75 in. x 8.75 in.
299 x 222 mm |
| Tray Construction |
Aluminum |
| Tiers |
1 |
2 |
1 |
1 |
1 |
| Overall Dimensions (L x W x H) |
16.8 x 11 x 6.5 in.
425 x 279 x 165 mm |
16.8 x 11 x 9.5 in.
425 x 279 x 241 mm |
16.8 x 10 x 5.5 in.
425 x 254 x 140 mm |
16.8 x 11 x 6.5 in.
425 x 279 x 165 mm |
17 x 11 x 6 in.
432 x 279 x 152 mm |
| Net Weight |
14.6 lb
6.6 kg |
15.5 lb
7 kg |
14.6 lb
6.6 kg |
14.6 lb
6.6 kg |
15.2 lb
6.9 kg |
| Power |
120V, 0.125A, 50/60Hz |
120V, 0.125A, 50/60Hz |
120V, 5A, 50/60Hz |
120V, 0.125A, 50/60Hz |
120V, 5A, 50/60Hz |
| Power Consumption |
15 W |
25 W |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus 30400137 Double Tier Platform Kit Rocker for SHRK04DG
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place
Dimensions (HxLxW):12.75 in x 10 in (32.4 cm x 25.4 cm)
|
|
more info
|
Ohaus 30400138 Double Tier Platform Kit Waver for SHWV02DG
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place
Dimensions (HxLxW):11.75 in x 8.75 in (29.8 cm x 22.2 cm)
|
|
more info
|
Ohaus 30400139 Double Tier Platform Kit Rocker for SHRK07AL1
OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place
Dimensions (HxLxW):14 in x 11 in (35.6 cm x 28 cm)
|
|
more info
|
Ohaus 30400140 Dimpled Mat Rocker 12.75 in x 10 in, for SHRK04DG
Ohaus 30400140 Dimpled Mat, 12.75 in x 10 in, for SHRK04DG OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place
|
|
more info
|
Ohaus 30400142 Dimpled Mat Waver 11.75 in x 8.75 in, for SHWV02DG
Ohaus 30400142 Dimpled Mat Waver 11.75 in x 8.75 in, for SHWV02DG OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place
|
|
more info
|
Ohaus 30400144 Dimpled Mat Waver 14 in x 11 in, for SHRK07AL1, SHRK07AL2 or SHWV02AL
Ohaus 30400144 Dimpled Mat Waver 14 in x 11 in, for SHRK07AL1, SHRK07AL2 or SHWV02AL OHAUS offers a range of shaker accessories to meet your specific sample requirements. A variety of platform options are available to hold irregular samples or traditional flask clamps and tube racks. Platforms can increase the amount of usable space for your samples, and in some cases can be stacked to increase throughput and double the sample capacity. Tube racks and dimpled mats securely hold tubes in place
|
|
|
|
|
|
|
|
|
