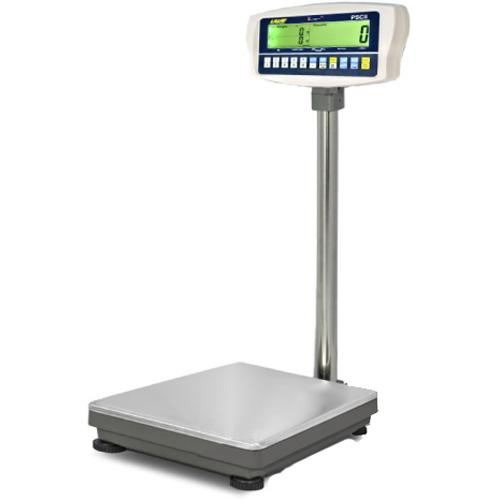

UWE PSCII-AF-750 (3-PSC-AF75-112) Intelligent-Count Heavy-Duty 16.5 x 20.5 inch Counting Scale 750 x 0.02 lb |
|
| The PSC-A is the newest version of the popular PSC Series of bench style counting scales from Intelligent Weighing Technology. The PSC-A scales come in a variety of platform sizes and capacities. These are high capacity, heavy-duty counting scales. Each of these scales has 15,000 displayed divisions, with 200,000 internal divisions for accurate counting. more ... |
|
Industrial Scales >
Counting Scales >
Dedicated Counting Scales
|
|
|
|
|
|
Features
The PSCII-A is the newest version of the popular PSC Series of bench style counting scales from Intelligent Weighing Technology. The PSC-A scales come in a variety of platform sizes and capacities. These are high capacity, heavy-duty counting scales. Each of these scales has 15,000 displayed divisions, with 200,000 internal divisions for accurate counting.
- Will Drive 10×350 ohm or 20×700 ohm Load Cells
- Alibi Memory Stores 130,000+ Transactions
- 60,000 Displayed Divisions Performance
- Full Numeric & Functions Keyboard
- Counting Resolution 1.2 million
- Management Capabilities
- Multiple Data Collection
- Optional Wheel Kit
- Tri-Color Display
- Real Time Clock
- 100 PLU’s
|
|

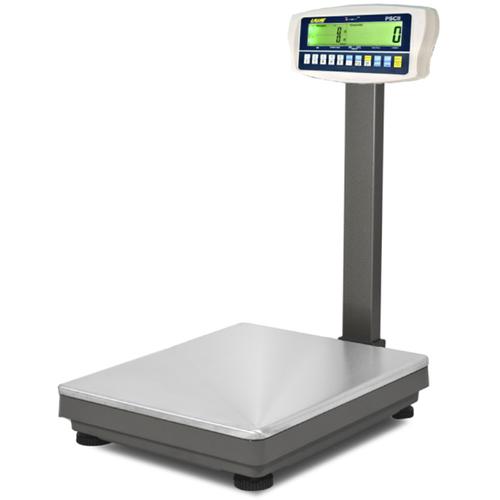

Other UWE PSC-Series Intelligent-Count Heavy-Duty Counting Scale
| Image |
Name |
Price |
|
|
$612.30
|
|
|
$612.30
|
|
|
$651.42
|
|
|
$612.30
|
|
|
$727.65
|
|
|
$651.42
|
|
|
$651.42
|
|
Specifications
| Model |
PSCII-AB-75
3-PSC-AB75-112 |
PSCII-AB-150
3-PSC-AB15-112 |
PSCII-AB-300
3-PSC-AB30-112 |
PSCII-AF-150
3-PSC-AF15-112 |
PSCII-AF-300
3-PSC-AF30-112 |
PSCII-AF-750
3-PSC-AF75-112 |
PSCII-AL-300
3-PSC-AL30-112 |
PSCII-AL-750
3-PSC-AL75-112 |
| Capacity x Readability |
75 x 0.002 lb |
150 x 0.005 lb |
300 x 0.01 lb |
150 x 0.005 lb |
300 x 0.01 lb |
750 x 0.02 lb |
300 x 0.01 lb |
750 x 0.02 lb |
| Platform Size (W x D x H) |
13 x 17.7 x 3.5 in
330 x 450 x 89 mm |
16.5 x 20.5 x 4.5 in
420 x 520 x 120 mm |
19.7 x 23.6 x 4.5 in
500 x 600 x 120 mm |
| Displayed Divisions |
15,000 |
| Internal Divisions |
200,000 |
| Functions |
counting, accumulation |
| Weighing Units |
lb |
| Stabilization Time (seconds) |
< 1.5 |
| Tare Range |
To capacity by subtraction |
| Power Source |
Built-in rechargeable battery or external power adapter (included) |
| Construction |
Stainless steel platform cover, cast aluminum platform |
| Display |
0.86 in / 22 mm wide angle viewing LCD |
| Operating Environment |
32ºF to 104ºF |
| Dimensions (W x D x H) |
13 x 20.7 x 28.3 in
330 x 450 x 720 mm |
13 x 20.7 x 28.3 in
330 x 450 x 720 mm |
19.7 x 25.5 x 33.9 in
500 x 647 x 860 mm |
| Net Weight |
25.8 lb / 11.7 kg |
42.2 lb / 19.2 kg |
56 lb / 25.4 kg |
| Shipping Weight |
29 lb / 13.2 kg |
46 lb / 20.8 kg |
63 lb / 28.4 kg |
| Options |
load cell extension cable, Printer |
3 in wheel kit (on AF and AL Models only), load cell extension cable, Printer |
| Country of Origin |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
| Features |
Benefits |
| Overload and shock protection mechanism |
Protects against excessive loads and shock applied to platform |
| Heavy duty rugged construction |
Will withstand harsh industrial operation |
| Low profile |
Space saving, easy to load and unload |
| Adjustable through 90° wide-angle backlit LCD display |
Can be seen from a wide viewing range and in poor lighting conditions |
| Built-in rechargeable battery or external power adapter |
Portability. Battery lasts 200 hr |
| Accumulation function |
Allows you to add together consecutive weights to arrive at a total |
| Zero tracking |
Ensures that you always start weighing at zero |
| Automatic power save |
Conserves battery power |
| Low battery indicator / charge status indicator |
Alerts you to charge the battery, saving downtime |
| Easy calibration function |
Ensures accuracy |
| Adjustable feet and spirit level |
Scale remains level for accurate results on uneven working surfaces - Anti-slip |
| In use cover (for indicator) |
Protects indicator from damage and dirt |
The PSCII is equipped with the following state of the art counting features
| Auto piece weight enhancement |
Allows for fi ner counting |
| Accumulation memory for weight and total count |
Gives ability to add together weighings by count or weight |
| Full numeric keypad |
User friendly operation and fast data entry |
| Over weighing and counting alarm |
Ensures fast throughput with fewer mistakes |
| 8 x one touch piece weight PLU |
Frequently used component sample weights can be stored in memory for easy retrieval |
|
|
|
|
