Shimpo FGS-220VC Vertical Motorized Test Stand with PC Control and Data Logging - 220 lb

SHIMPO INSTRUMENTS
The FGS-VC Series Motorized Force Test Stands are designed to provide accurate and repeatable results for tension, compression, break and cycle performance tests in various applications. A key feature is a SHIMPO exclusive: a precision made servo gear head and ball screw for precise movement control. more ...
Scales > Test Stand > Test Stands

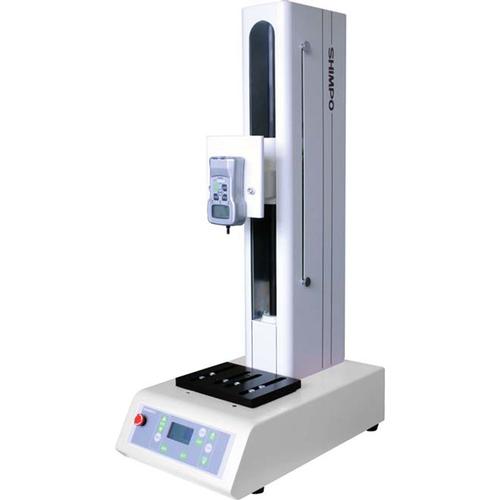

Shimpo FGS-220VC Vertical Motorized Test Stand with PC Control and Data Logging -  220 lb

Specifications Chart View Full Detail Page


Call for more info
Download PDF
Shimpo FGS-220VC Vertical Motorized Test Stand with PC Control and Data Logging - 220 lb
FREE Ground Shipping
(48 US States Only)

Price: $4,686.00


In Stock - Ships within 24 hours

View More Pictures
View Features

Shimpo
SKU: FGS-220VC

Features

The FGS-VC Series Motorized Force Test Stands are designed to provide accurate and repeatable results for tension, compression, break and cycle performance tests in various applications. A key feature is a SHIMPO exclusive: a precision made servo gear head and ball screw for precise movement control. The large measurement area plus tall 15.75? (400 mm) travel distance allow large, unique parts to be tested. A precise and consistent 0.40-15.75”/min (10-400mm/min) adjustable speed provides for slow tests or quick cycle load testing

The simple keypad combined with the intuitive on screen operation guides the user through setting up each test. Users can perform standard tests in several automatic or manually selected modes as well as choose higher-end capabilities with the additional dwell time, adjustable acceleration, plus user-defined tests with up to 5 programmed set points.

The FGS-VC’s are flexible as they can be operated by the keypad or through a PC via the FGT-VC software which includes data collection, graphing and statistical analysis. The FGT-VC software program allows graphing of force versus distance and the ability to compare several tests on a single graph. Another great feature of the FGT-VC is the comparator mode which enables quick decision pass /fail determination, ideal for production line testing.

The FGS-VC’s can be equipped with various gripping and compression fixtures and are compatible with all SHIMPO Force Gauges as well as most gauges on the market. These features make the new FGS-VC the ideal push/pull tester for the production line or QC lab.

    Features
  • User friendly controls and software allows hands off operation, reduces training time, user errors and speeds up tests
  • The wide speed range means only one stand required for a majority of testing needs
  • Easy install force gauge bracket allows for multiple test ranges to be quickly used on one stand
  • FGT-VC software provides graphing analysis of one or several tests. Data can be stored for later analysis
  • Comparator function provides instant pass/fail result allowing for usage on production lines
  • Combining with FGE or FGV force gauges with the stand, overload limit communication is achieved, eliminating potential to damage the gauge accidentally during a test
  • FGS-220VC Software Download
2 Year Manufacture Warranty
Other Shimpo FGS Motorized Force Test Stands

FGS-100EH
Vertical Motorized High Speed Test Stand 110 lb

$2,442.00

FGS-100EL
Vertical Motorized Low Speed Test Stand 110 lb

$2,442.00

FGS-100PVH
Vertical Motorized Programmable High Speed Test Stand 110 lb

$2,631.20

FGS-100PVL
Vertical Motorized Programmable Low Speed Test Stand 110 lb

$2,631.20

FGS-100PXH
Horizontal Motorized Programmable High Speed Test Stand 110 lb

$2,798.40

FGS-100PXL
Horizontal Motorized Programmable Low Speed Test Stand 110 lb

$2,798.40

FGS-220VC
Vertical Motorized Test Stand with PC Control and Data Logging - 220 lb

$4,686.00

You are viewing this product

Specifications

Model FGS-220VC
Capacity 220 lb
100 kg
1000 N
Travel Speed 0.40-15.75”/min(10-400mm/min)
Speed Accuracy +/- 0.5%
Stroke 15.75 in (400 mm)
Display Dot-matrix LCD Four digit
Operation Mode Single (SING); Continuous (CONT); Program (PROG); Manual (MANU); Jogging (JOG)
Communication USB
Input Over load from force gauge (The stand will stop immediately, if the over load is detected by force gauge.)

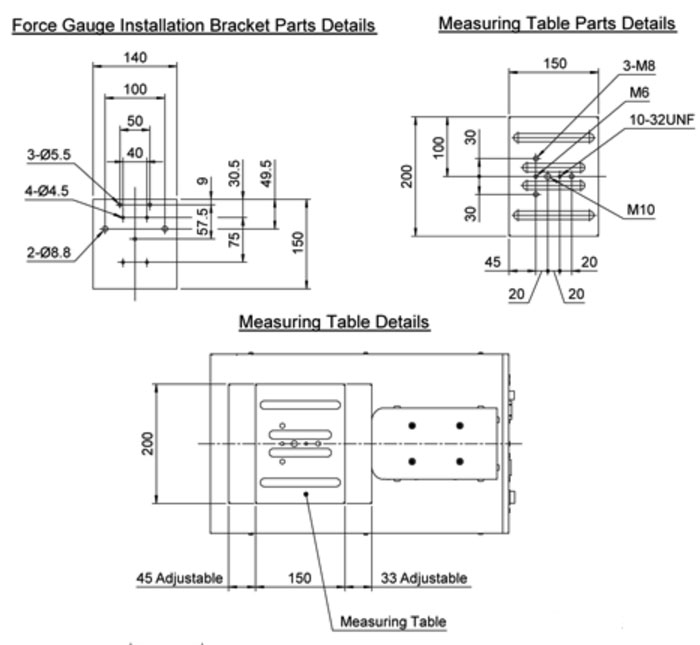

Measurement Table 5.91 x 7.87” (150 x 200 mm)
Temperature Limits 32 to 113 ºF (0 to 45 ºC)
Power 120VAC standard, 240VAC optional

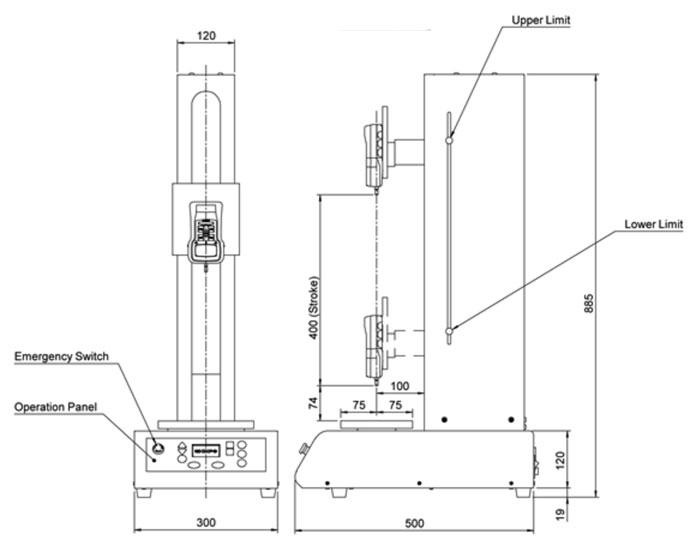

Dimensions 11.81 x 34.84 x 19.69"(300 x 885 x 500mm)
Product Weight 139 lb (63 kg)
Warranty 2 year
Included Accessories USB cable, Force gauge communication cable, gauge/plate Mounting accessories

* within the 48 continental US States
