The FG-7000 Series digital force gauges are loaded with functionality to simplify your compression and tension testing needs. The multiple-language FG-7000’s provide menu programming for easy selection and set-up of the instrument to your desired requirements. Three modes of operation are selectable: Track mode for live readings, Peak mode for displaying the peak reading that remains until a higher peak is sensed, and Auto Peak mode which is similar to Peak mode except the peak on the display will additionally reset after a programmed time period. Programmable limits provide a quick visual and audible indication if a test passed or failed on the LCD. In addition, the comparator output can be set up for integration of the instrument into your quality system for repetitive testing such as on a production line.
These high-tech instruments can easily data log a reading at the push of a button for simple data acquisition, or be set to continuous data storage. Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program. The 1,000 point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading

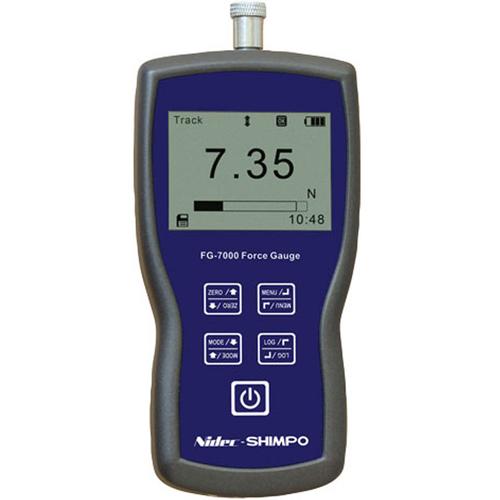

The FG-7000’s robust housings are designed to fit perfectly in the operator’s hand for portable testing. The large backlit, 180° auto-reversible display, compression/tension icons, combined with the dual labeled key pad allows for instant switching from push to pull testing for portable or test stand applications. Models are available from 0.5 lbs to 220 lb ranges providing a large offering for various applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.
1000 Hz Sample Rate combined with +/-0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
Three mode operation: Track, Peak & Auto-Peak
180° Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing
1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package via USB or RS-232 Serial Port for further analysis
Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
Comparator output function provides user with easy Pass/Fail testing system integration capabilities
Multi-language and engineering unit’s selection provides flexible user comfort
Field Calibration capability eliminates need to send to lab
Calibration Certificate included along with popular adapter attachments
Free Data logging/graphing software available for free download on website
EDMS Data Acquisition Software (free download on website)
Allows full testing of FG Series Force Gauges with live analysis
of the test results. Users can set a delay or a time period for the
test data to record as well as begin or end if a load threshold is
reached. The load can be inverted so the graph shows the resultant
force in the direction desired. Average and peak readings
are automatically calculated, but the user can zoom in on a section
of a graph and recalculate the new average and peak over
the selected portion of the test. Besides acquiring live data, the
EDMS program can also upload previously stored readings from
the gauge. Additionally, the software provides the ability to easily save the data set to a spreadsheet file, plus save the resultant graph as a photo for later review.
