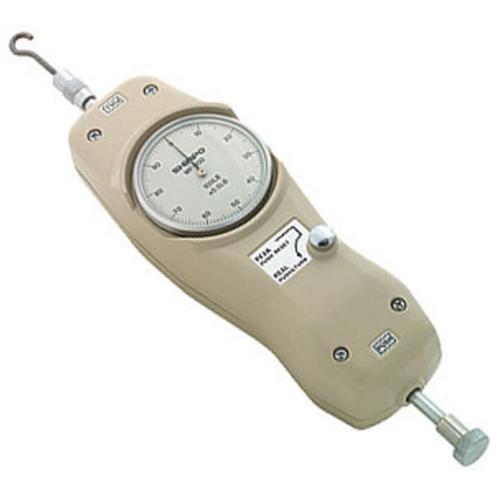

Shimpo MF-2 Mechanical Push Pull Force Gauge 2 x 0.01 lb

SHIMPO INSTRUMENTS
Incredibly durable and user-friendly, the economical MF mechanical force gauges are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications. more ...
Scales > Force Gauge > Force Gauge
Shimpo MF-2 Mechanical Push Pull Force Gauge 2 x 0.01 lb

Specifications Chart View Full Detail Page



Download PDF
Shimpo MF-2 Mechanical Push Pull Force Gauge 2 x 0.01 lb
FREE Ground Shipping
(48 US States Only)

Price: $396.00


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

Shimpo
SKU: MF-2

Features

Incredibly durable and user-friendly, the economical MF mechanical force gauges are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications. The peak force mode features an easy push-button reset; this is especially helpful for doing repetitive testing in an assembly line or in quality control. The large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings. The MF was ergonomically designed for handheld use, but may also be used with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected to 165 pounds (75 kg)!

MF gauges feature a die-cast aluminum housing which mounts easily to all Shimpo Instruments test stands for even greater control of repetitive testing. All standard Series MF gauges include a protective carrying case plus attachment adapters.

A complete kit is available that includes adapters, padded ERGO accessories, handle, large rugged case and NIST traceable certificate. This kit is perfect for the professional Physical Therapist or Ergonomist that performs Isokinetic testing or job task analysis.

  • Outstanding ±0.2% F.S. accuracy makes the MF’s Ideal even for the strictest applications
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Measures Tension and Compression Forces - Only one gauge required for insertion withdrawal tests
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Smooth mechanical operation with precise action produces repetitive, proper readings
  • Exceptionally rugged die-cast aluminum housing enables usage in harshest conditions
  • Overload protected to 165 pounds (74.84 kg) protects gauge from accidental damage
  • Peak Mode Reset is an ideal for repetitive peak testing applications
  • English and metric models available satisfies many testing parameters
  • Compact, ergonomic design is perfect for handheld use
  • Rear threaded inserts makes it easy to mount to test stands
  • Two year warranty provides peace of mind

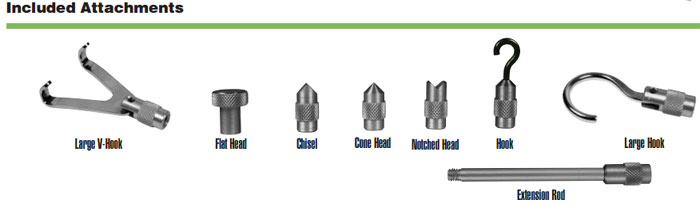

    Included Attachments

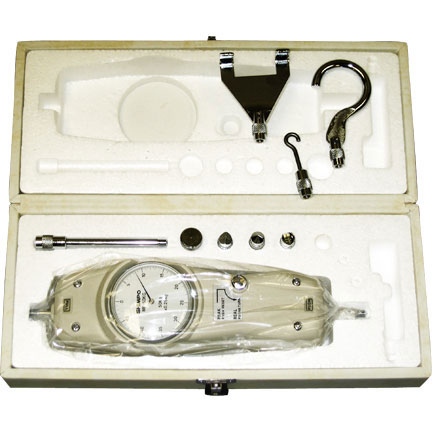

  • Carrying case
  • Large
  • V-Hook
  • Chisel
  • Cone Head
  • Notched Head
  • Hook
  • Large Hook
  • Extension Rod

Weight: 4.00 lb
2 Year Manufacture Warranty
Other Shimpo MF Mechanical Force Gauges

MF-2
Mechanical Push Pull Force Gauge 2 x 0.01 lb

$396.00

You are viewing this product

MF-5
Mechanical Push Pull Force Gauge 5 x 0.025 lb

$396.00

MF-10
Mechanical Push Pull Force Gauge 10 x 0.05 lb

$396.00

MF-20
Mechanical Push Pull Force Gauge 20 x 0.1 lb

$396.00

MF-30
Mechanical Push Pull Force Gauge 30 x 0.2 lb

$396.00

MF-50
Mechanical Push Pull Force Gauge 50 x 0.25 lb

$396.00

MF-100
Mechanical Push Pull Force Gauge 100 x 0.5 lb

$396.00

MF-1KG
Mechanical Push Pull Force Gauge1 x 0.005 kg

$396.00

MF-2KG
Mechanical Push Pull Force Gauge 2 x 0.01 kg

$396.00

MF-3KG
Mechanical Push Pull Force Gauge 3 x 0.02 kg

$396.00

MF-5KG
Mechanical Push Pull Force Gauge 5 x 0.025 kg

$396.00

MF-10KG
Mechanical Push Pull Force Gauge 10 x 0.05 kg

$396.00

MF-20KG
Mechanical Push Pull Force Gauge 20 x 0.1 kg

$396.00

MF-30KG
Mechanical Push Pull Force Gauge 30 x 0.2 kg

$396.00

MF-50KG
Mechanical Push Pull Force Gauge 50 x 0.25 kg

$396.00

Specifications

Model MF-2 MF-5 MF-10 MF-20 MF-30 MF-50 MF-100
Capacity x Dial Graduation 2 x 0.01 lb 5 x 0.025 lb 10 x 0.05 lb 20 x 0.1 lb 30 x 0.2 lb 50 x 0.25 lb 100 x 0.5 lb
Accuracy ±0.2% F.S.
Display Analog 2” in diameter (50 mm); rotatable 360° for taring purposes
Live/Peak Mode Selectable
Needle Update Immediate
Threaded Insert Eight M3 inserts
Overload Capacity 165 lbs (75 kg)
Product Weight 1.6 lbs (0.73 kg)
Package Weight 4 lbs (1.81 kg)
Warranty 2-Year
Included Accessories Carrying case and attachments (flat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook)



Model MF-1KG MF-2KG MF-3KG MF-5KG MF-10KG MF-20KG MF-30KG MF-50KG
Capacity x Dial Graduation 1 x 0.005 kg 2 x 0.01 kg 3 x 0.02 kg 5 x 0.025 kg 10 x 0.05 kg 20 x 0.1 kg 30 x 0.2 kg 50 x 0.25 kg
Accuracy ±0.2% F.S.
Display Analog 2” in diameter (50 mm); rotatable 360° for taring purposes
Live/Peak Mode Selectable
Needle Update Immediate
Threaded Insert Eight M3 inserts
Overload Capacity 165 lbs (75 kg)
Product Weight 1.6 lbs (0.73 kg)
Package Weight 4 lbs (1.81 kg)
Warranty 2-Year
Included Accessories Carrying case and attachments (flat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook)
