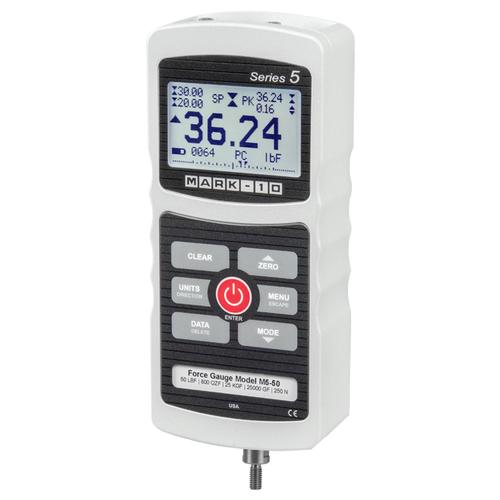

Features
Series 5 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature an industry-leading peak sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale ±1 digit, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

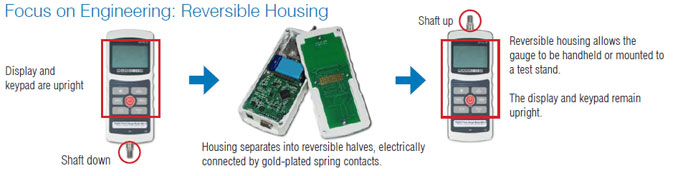

The Series 5’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 5 force gauges are directly compatible with Mark-10 test stands, grips, and software.
Features
- High-speed 7,000 Hz peak sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
- Large backlit graphic display
- 1,000-point data memory with statistics and outputs
- Live load bar graph with set point markers
- Programmable set points, with alarms and outputs
- Peak readings and set points always displayed
- Averaging mode - calculates average readings over time
- External trigger mode - for switch contact testing or remotely stopping display update
- Automatic data output via USB/RS-232
- 5 selectable units of measurement
- Configurable audio alarms and key tones
- Password protection, configurable for individual keys and calibration
Weight:
1.80 lb
|
|
Other Mark 10 Series 5
| Image |
Name |
Price |
|
|
$1,676.75
|
|
|
$1,676.75
|
|
|
$1,339.50
|
|
|
$1,187.50
|
|
|
$1,187.50
|
|
|
$1,187.50
|
|
|
$1,187.50
|
|
|
$1,187.50
|
|
|
$1,187.50
|
|
|
$1,339.50
|
|
|
$1,339.50
|
|
|
$1,339.50
|
|
|
$1,615.00
|
|
|
$1,615.00
|
|
|
$1,615.00
|
|
|
$1,615.00
|
|
Specifications
| Model |
M5-012 |
M5-025 |
M5-05 |
M5-2 |
M5-5 |
M5-10 |
M5-20 |
M5-50 |
M5-100 |
M5-200 |
M5-300 |
M5-500 |
M5-750 |
M5-1000 |
M5-1500 |
M5-2000 |
| Capacity X Resolution lb |
0.12 x 0.00002 lb |
0.25 x 0.00005 lb |
0.5 x 0.0001 lb |
2 x 0.0005 lb |
5 x 0.001 lb |
10 x 0.002 lb |
20 x 0.005 lb |
50 x 0.01 lb |
100 x 0.02 lb |
200 x 0.05 lb |
300 x 0.1 lb |
500 x 0.1 lb |
750 x 0.5 lb |
1000 x 0.5 lb |
1500 x 1 lb |
2000 x 1 lb |
| Capacity X Resolution oz |
2 x 0.0005 oz |
4 x 0.001 oz |
8 x 0.002 oz |
32 x 0.01 oz |
80 x 0.02 oz |
160 x 0.05 oz |
320 x 0.1 oz |
800 x 0.2 oz |
1600 x 0.5 oz |
3200 x 1 oz |
4800 x 2 oz |
8000 x 2 oz |
12000 x 10 oz |
16000 x 5 oz |
24000 x 20 oz |
32000 x 20 oz |
| Capacity X Resolution kg |
- |
- |
- |
1 x 0.0002 kg |
2.5 x 0.0005 kg |
5 x 0.001 kg |
10 x 0.002 kg |
25 x 0.005 kg |
50 x 0.01 kg |
100 x 0.02 kg |
150 x 0.05 kg |
250 x 0.05 kg |
375 x 0.2 kg |
500 x 0.2 kg |
750 x 0.5 kg |
1000 x 0.5 kg |
| Capacity X Resolution g |
50 x 0.01 g |
100 x 0.02 g |
250 x 0.05 g |
1000 x 0.2 g |
2500 x 0.5 g |
5000 x 1 g |
10000 x 2 g |
25000 x 5 g |
50000 x 10 g |
- |
- |
- |
- |
- |
- |
- |
| Capacity X Resolution N |
0.5 x 0.0001 N |
1 x 0.0002 N |
2.5 x 0.0005 N |
10 x 0.002 N |
25 x 0.005 N |
50 x 0.01 N |
100 x 0.02 N |
250 x 0.05 N |
500 x 0.1 N |
1000 x 0.2 N |
1500 x 0.5 N |
2500 x 0.5 N |
3750 x 2 N |
5000 x 2 N |
7500 x 5 N |
10000 x 5 N |
| Capacity X Resolution kN |
- |
- |
- |
- |
- |
- |
- |
- |
- |
1 x 0.0002 kN |
2.5 x 0.0005 kN |
1.5 x 0.0005 kN |
3.75 x 0.002 kN |
5 x 0.002 kN |
7.5 x 0.005 kN |
10 x 0.005 kN |
| Capacity X Resolution mN |
500 x 0.1 mN |
1000 x 0.2 mN |
2500 x 0.5 mN |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
| Accuracy |
±0.1% of full scale ±1 digit |
| Power |
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
All models include 110V AC adapters.
euro plug (220V) or UK plug (220V) avaliable. |
| Battery life |
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
|
| Measurement units |
lb, oz, g, kg, N, kN, mN (depending on model) |
| Outputs |
USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog: ±1 VCD, ±0.25% of full scale at capacity
General purpose: Three open drain outputs, one input
Set points: Three open drain lines
|
| Configurable settings |
Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration |
| Safe overload |
150% of full scale (display shows “OVLD” at 110% and above) |
| Weight (gauge only) |
1.0 lb [0.45 kg] |
1.2 lb [0.54 kg] |
1.8 lb [0.82 kg] |
| Included items |
Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide,USB cable, resource CD (USB driver, MESURgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration with data. |
| Warranty |
3 years (see individual statement for further details) |
| Model |
M5-012 |
M5-025 |
M5-05 |
M5-2 |
M5-5 |
M5-10 |
M5-20 |
M5-50 |
M5-100 |
M5-200 |
M5-300 |
M5-500 |
M5-750 |
M5-1000 |
M5-1500 |
M5-2000 |
| Included Extension Rods |
G1024 |
G1031 |
| Included Cone |
G1026 |
G1033 |
| Included Chisel |
G1025 |
G1032 |
| Included V-Groove |
G1027 |
G1034 |
| Included Flat |
G1029 |
G1036 |
| Included Hook |
G1028 |
G1038 |
G1035 |
G1042 |
| Included Coupling |
- |
G1039 |
G1037 |
- |
| Thread Adapter |
- |
G1041 |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Mark-10 15-1004 MESURGauge Data Collection Software
