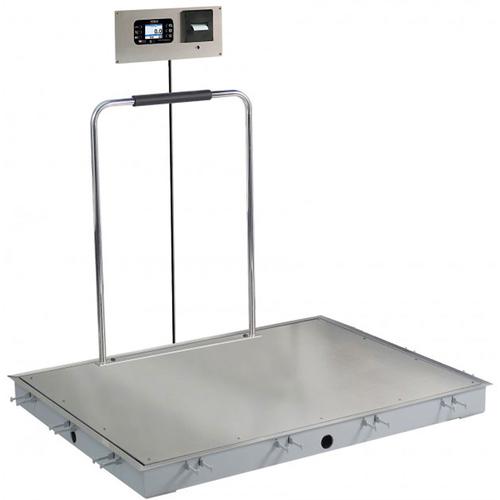

Detecto SOLACE Series ID-4836SH-855RMP 4 x 3 ft In-Floor Dialysis Scale with Handrail 1000 x 0.2 lb |
|
DETECTO’s Solace series USA-made in-floor dialysis scales are flush-mounted platform scales that feature stainless steel decks and include a pit frame, trim ring, and interface cable to the included multi-color, touchscreen LCD indicator and printer more ... |
Medical Equipment >
Medical Scales >
Dialysis Scales
|
|
|
|
Features
DETECTO’s Solace series USA-made in-floor dialysis scales are flush-mounted platform scales that feature stainless steel decks and include a pit frame, trim ring, and interface cable to the included multi-color, touchscreen LCD indicator and printer. The flush surface eliminates tripping hazards and hallway accessibility issues.
The Solace series is available with or without a handrail and all models include a recessed-mount indicator and ticket printer combination. These in-floor scales with high 1,000-lb x 0.2-lb/450-kg x 0.1-kg capacity easily accommodate patients with walkers, canes, wheelchairs, dialysis chairs, and the 6 x 4 ft. size even accommodates stretchers. The Solace series comes in 8 standard models to choose from with 3 x 3 ft, 4 x 3 ft, 4 x 4 ft, and 6 x 4 ft stainless steel platform sizes (custom sizes/configurations available).
DIALYSIS + BARIATRIC WEIGHING
- 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity
- 8 standard models to choose from
- Handrails available for patient stability while weighing
- Indicator/printer, pit frame, scale, and trim ring included
- Standard platform sizes: 3 x 3 ft, 4 x 3 ft, 4 x 4 ft, and 6 x 4 ft
- Custom sizes and configurations are available
- USA-made quality construction
DETECTO’s Solace series in-floor scales are covered with durable
stainless steel to provide years of maintenance-free use. The
built-in thermal printer makes it easy to print out a weight
record for patient recordkeeping.
- Multi-color, touchscreen LCD display
- Built-in thermal ticket printer (included)
- Displays weight, height, and BMI onscreen simultaneously
- Large 0.9-inch-high, clinicalblue LCD weight digits
- Push button or manual entry of tare weights for wheelchairs and stretchers
- Automatically locks on weight temporarily for a few seconds in order to easily view and record measurement
- Menu button provides quick access to user-friendly menu settings for scale customization
- Standard 110V AC power 110V – 240V AC universal switching power supply
The Solace series in-floor scale’s ticket printer can print Gross, Tare, Net and Patient IDs for record keeping
The Solace series is flush mounted with the floor and includes the pit frame and trim ring, plus an interface cable from the scale to indicator
Complete in-floor scale package for continuous patient weight monitoring
DETECTO’s Solace series in-floor scales are ideal for dialysis clinics, emergency rooms, and clinical facilities where fast, efficient patient measurement is necessary
In-floor scales comes with model 855RMP digital weight indicator/ printer combo, pit frame, scale, stainless steel deck, and trim ring. Custom sizes and configurations are available.
Dimensions X:
54.75
Y:
42.75
Z:
16.00
|
|
Other Detecto SOLACE Series In-Floor Dialysis Scales
|
Specifications
Model |
ID-3636S-855RMP |
ID-3636SH-855RMP |
ID-4836S-855RMP |
ID-4836SH-855RMP |
ID-4848S-855RMP |
ID-4848SH-855RMP |
ID-7248S-855RMP |
ID-7248SH-855RMP |
Capacity x Readability |
1,000 lb x 0.2 lb 450 kg x 0.1 kg |
1,000 lb x 0.2 lb 450 kg x 0.1 kg |
1,000 lb x 0.2 lb 450 kg x 0.1 kg |
1,000 lb x 0.2 lb 450 kg x 0.1 kg |
1,000 lb x 0.2 lb 450 kg x 0.1 kg |
1,000 lb x 0.2 lb 450 kg x 0.1 kg |
1,000 lb x 0.2 lb 450 kg x 0.1 kg |
1,000 lb x 0.2 lb 450 kg x 0.1 kg |
Platform Size |
36 x 36 in 91 x 91 cm |
36 x 36 in 91 x 91 cm |
48 x 36 in 122 x 91 cm |
48 x 36 in 122 x 91 cm |
48 x 48 in 122 x 122 cm |
48 x 48 in 122 x 122 cm |
72 x 48 in 183 x 122 cm |
72 x 48 in 183 x 122 cm |
Handrail |
- |
YES |
- |
YES |
- |
YES |
- |
YES |
Platform Construction: |
Anti-corrosion stainless steel |
Indicator/Printer |
Recessed-mount, touchscreen model 855 indicator / thermal ticket printer combo with stainless steel cover plate |
Display Type |
3.2 in (diagonal) full color TFT display 320x240 resolution |
Keypad |
Mechanical switch type with 7 buttons: Power, Zero, Lock/Release, ID, Cycle Display Mode, Menu, Print |
Number of Characters |
Weight: 5 digit, 0.9 in (23 mm) high; Height: 4 digit, 0.35 in (9 mm) high; BMI: 3 digit, 0.35 in (9 mm) high |
Country of Origin |
USA made |
Operating Environment |
Operating Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% non-condensing |
Digital Filtering |
StableSENSE® Adjustable Filtering |
Power |
110V – 240V AC universal switching power supply |
Includes |
In-floor scales come with model 855RMP digital weight indicator/printer combo, pit frame, scale, stainless steel deck, and trim ring |
Handrail/th>
| Wraparound tubular handrail with padded handgrip included on models with H nomenclature (for example: ID-4848SH- 855RMP) |
UPC |
809161203707 |
809161203806 |
809161203905 |
809161204001 |
809161204100 |
809161204209 |
809161204308 |
809161204407 |
Shipping Weight |
255 lb 115 kg |
265 lb 120 kg |
311 lb 141 kg |
321 lb 146 kg |
388 lb 176 kg |
398 lb 181 kg |
512 lb 232 kg |
522 lb 237 kg |
Shipping Dimensions |
42.75 in x 42.75 in x 16 in |
54.75 in x 42.75 in x 16 in |
54.75 in x 54.75 in x 16 in |
78.75 in x 54.75 in x 16 in |
|
|
|
|
|
|
|
|
