Cambridge 670130305 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-1003-00) 5000 x 1 lb |
|
| Constructed of structural tubular steel and heavy gauge anti-skid diamond plate decking these scales are designed to handle the toughest applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty. more ... |
|
Scales >
Industrial Scales >
Accessories
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
|
|
Features

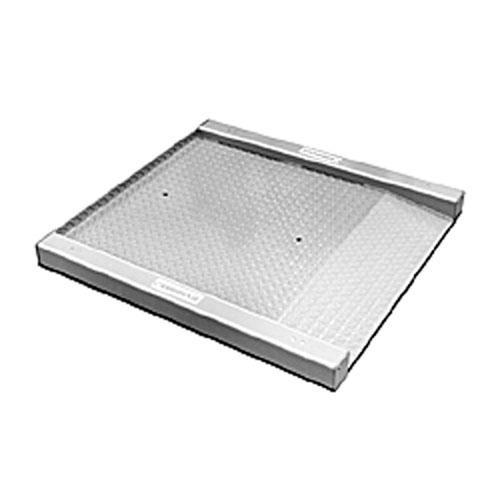

Cambridge Model 670-1 Series Barrel Weigher Scale
Constructed of structural tubular steel and heavy gauge anti-skid diamond plate decking these scales are designed to handle the toughest applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty.
STANDARD FEATURES
- Structural tubular steel construction.
- Anti-skid diamond plate deck.
- 100% End loading capacity.
- 150% Overload protection.
- 20 Foot indicator cable.
- Eye bolt holes allow easy set-up.
- Shielded load cell and indicator cables.
- Ultra-low profile (1.5” above the floor).
- Live side rails to weigh oversized loads.
- 1 Part in 5000 accuracy.
- Live built-in easy incline ramps.
- Shock load protection.
- (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division, Class III/IIIL, IP 67 water resistant rated shear beam load cells.
- Easy access leveling.
OPTIONS
- Smooth carbon steel deck plate.
- Remote NEMA 4x junction box with 10 Sealtite flexible conduit (available in stainless steel, plastic and “FM” approved).
- Load cell options: Stainless steel , Hermetically sealed S.S. , Teflon cables,“FM” approved
- High Resolution Package Includes: Captive ball leveling feet for unmatched stability.
- H.E.P. Package Includes: Stainless steel NEMA 4x J -box, Capped and sealed tubes, Stainless steel load cells, leveling feet and hardware, Sandblasted surface Cold zinc epoxy coating with urethane enamel finish coat
Dimensions
X:
30.00
Y:
30.00
Z:
1.50
|
|
Other Cambridge Scale Model 670-1 Built In Single Ramp Floor Scale
Cambridge 670130301 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-1001-00
) 1000 x 0.2 lb
$1,705.50
|
Cambridge 670130302 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-1002-00
) 2500 x 0.5 lb
$1,705.50
|
Cambridge 670130305 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-1003-00
) 5000 x 1 lb
$1,759.50
You are viewing this product
|
Cambridge 670136361 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-1004-00
) 1000 x 0.2 lb
$1,759.50
|
Cambridge 670136362 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-1005-00
) 2500 x 0.5 lb
$1,795.50
|
Cambridge 670136365 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-1006-00
) 5000 x 1 lb
$1,903.50
|
Cambridge 670130301K
Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 1000 x 0.2 lb
$2,029.50
|
Cambridge 670130302K
Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 2500 x 0.5 lb
$2,029.50
|
Cambridge 670130305K
Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 5000 x 1 lb
$2,083.50
|
Cambridge 670136361K
Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 1000 x 0.2 lb
$2,083.50
|
Cambridge 670136362K
Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 2500 x 0.5 lb
$2,119.50
|
Cambridge 670136365K
Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 5000 x 1 lb
$2,227.50
|
|
Specifications
| Cambridge Model 670-1 Series Barrel Weigher Scale |
| Model |
670130301 |
670130302 |
670130305 |
670136361 |
670136362 |
670136365 |
| Capacity |
1,000 x 0.2 lb |
2,500 x 0.5 lb |
5,000 x 1 lb |
1,000 x 0.2 lb |
2,500 x 0.5 lb |
5,000 x 1 lb |
| Platform Size |
30" x 30" x 1.5" |
30" x 30" x 1.5" |
30" x 30 x 1.5" |
36" x 36" x 1.5" |
36" x 36" x 1.5" |
36" x 36" x 1.5" |
| Model With Indicator |
670130301K |
670130302K |
670130305K |
670136361K |
670136362K |
670136365K |
| Overload protection |
150% |
| Indicator Cable |
20 Foot |
| Rated |
IP 67 water resistant |
| Plate Deck |
Anti-skid diamond |
| Accuracy |
1 Part in 5000 |
|
|
|
|
|
|
|
|
|
|
|
|
