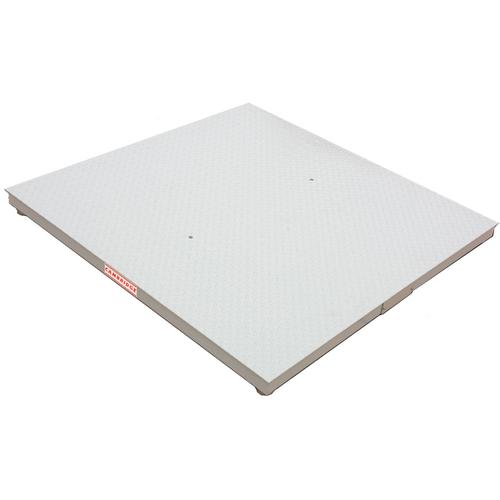

Cambridge AL660 24x24x3 Aluminum Low Profile Base Only1000 lb - (3873-1000-00) |
|
| STANDARD FEATURES The AL660 Alulite Series Aluminum Low Profile Series standard features include 1 part in 5,000 accuracy, structural tubular aluminum construction, aluminum diamond tread deck plate, 150% overload protection, 100% end loading capacity... more ... |
|
Scales >
Industrial Scales >
Floor Scales
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
|
|
Features
STANDARD FEATURES
The AL660 Alulite Series Aluminum Low Profile Series standard features include 1 part in 5,000 accuracy, structural tubular aluminum construction, aluminum diamond tread deck plate, 150% overload protection, 100% end loading capacity, low profile design allows easy incline ramping, 20 foot shielded indicator cable, shock load protection, four internally mounted shear beam load cells, is NTEP Certified-5,000 Division, class III/IIIL, is environmentally protected, and is IP 67 Water Resistant rated.
- Remote junction box
Remote mountable NEMA 4 junction box and 10 Sealtite conduit for wash down applications. (Standard on Model SS660 Series)
- Fork lift package
All of the standard 660 features but with added fork lift skids for those applications requiring convenient and rapid transporting of the scale. Only three inches high, this scale maintains its low profile design with built in rails that permit easy pick up and transportation by most commonly used fork lifts. Also featured are heavy steel bumpers mounted on all four corners to protect the load cells and leveling feet from fork lift blades.
- Pit installation kit
unction box permitting easy access for calibration and corner adjustments. Pit spacer brackets are also included to maintain accurate alignment of scale in pit applications. For an unbeatable combination, match this scale with our pit form and one of our many indicators and you’ve got all you need for all your weighing needs.
ACCESSORIES
- Easy incline ramps
- Bumper guards
- Pit forms
- Indicator/Printer stands
- Locator brackets
Dimensions
X:
24.00
Y:
24.00
Z:
3.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale AL660 Aluminum Low Profile Bases
Cambridge AL660 24x24x3 Aluminum Low Profile Base Only1000 lb - (3873-1000-00
)
$1,642.50
You are viewing this product
|
Cambridge AL660 24x24x3 Aluminum Low Profile Base Only 2500 lb (3873-1001-00
)
$1,642.50
|
Cambridge AL660 30x30x3 Aluminum Low Profile Base Only 1000 lb (3873-1002-00
)
$1,975.50
|
Cambridge AL660 30x30x3 Aluminum Low Profile Base Only 2500 lb (3873-1003-00
)
$1,975.50
|
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 1000 lb - (3873-1004-00
)
$2,065.50
|
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 2500 lb (3873-1005-00
)
$2,065.50
|
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 5000 lb (3873-1006-00
)
$2,065.50
|
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 1000 lb - (3873-1007-00
)
$2,587.50
|
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 2500 lb (3873-1008-00
)
$2,587.50
|
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 5000 lb - (3873-1009-00
)
$2,587.50
|
Cambridge AL660 48x60x3 Aluminum Low Profile Base Only 5000 lb (3873-1010-00
)
$2,992.50
|
Cambridge AL660 48x72x3 Aluminum Low Profile Base Only 5000 lb (3873-1011-00
)
$3,325.50
|
Cambridge AL660 60x60x3 Aluminum Low Profile Base Only 5000 lb (3873-1012-00
)
$3,325.50
|
|
Specifications
|
| Cambridge Alulite Aluminum Low Profile Bases |
| Model |
Size (Inch) |
Capacity |
Legal For Trade |
| AL66024241 |
24 x 24 x 3 |
1,000 lb |
NO |
<| AL66024242 |
24 x 24 x 3 |
2,500 lb |
NO |
| AL66030301 |
30 x 30 x 3 |
1,000 lb |
NO |
| AL66030302 |
30 x 30 x 3 |
2,500 lb |
NO |
| AL66036361 |
36 x 36 x 3 |
1,000 lb |
NO |
| AL66036362 |
36 x 36 x 3 |
2,500 lb |
NO |
| AL66036365 |
36 x 36 x 3 |
5,000 lb |
NO |
| AL66048481 |
48 x 48 x 3 |
1,000 lb |
NO |
| AL66048482 |
48 x 48 x 3 |
2,500 lb |
NO |
| AL66048485 |
48 x 48 x 3 |
5,000 lb |
NO |
| AL66048605 |
48 x 60 x 3 |
5,000 lb |
NO |
| AL66048725 |
48 x 72 x 3 |
5,000 lb |
NO |
| AL66060605 |
60 x 60 x 3 |
5,000 lb |
NO |
|
|
|
|
|
|
|
|
|
|
|
|
