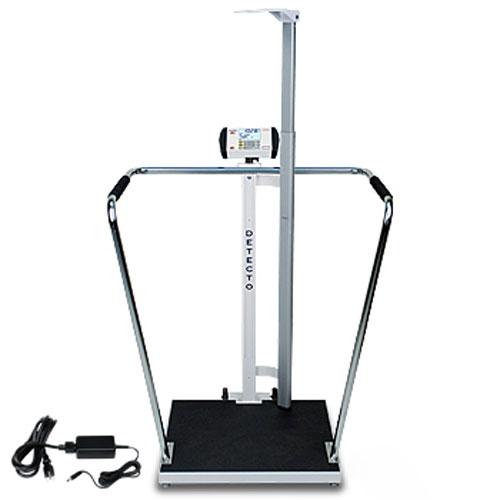

Detecto 6857DHR-AC - ProMed Digital Bariatric Scale with AC Adapter, 1,000 lb x 0.2 lb |
|
| Digital Weight - Digital Height Rod - Body Mass Index The 6857DHR ProMed scale is designed for optimum performance and displays height, weight, and BMI simultaneously by simply raising the digital height rod while a patient is being weighed on the scale. No keys to push, no operational sequences to memorize, it's fully automatic. The 6857DHR is EMR-ready with its serial port. This Scale includes an AC Adapter more ... |
|
Medical Equipment >
Medical Scales >
Handrail Scales
|
|
|
|
|
|
Features
This Scale includes an AC Adapter
The 6854DHR USA-made bariatric scales are designed for optimum performance and display weight, height, and BMI simultaneously (shown below) by simply raising the digital height rod while a patient is being weighed on the scale. There are no keys to push, no operational sequences to memorize, it’s fully automatic. These bariatric scales are EMR-ready with USB, serial, and optional Wi-Fi. The ability to print or save weight data with these scales is a real time-saving device for clinics, doctor’s offices, long-term care facilities, and other medical institutions.
Detectos state-of-the-art MedVue® digital weight indicator includes DB9 serial, USB, and optional wired or Wi-Fi Ethernet output for data transfer to a printer or PC-based EMR (electronic medical record) software. With the time/date feature, the scale can send the weight, time, date, BMI (Body Mass Index), and height directly to a printer or a PC for record keeping. The 350-degree swivel mounting bracket allows it to be positioned wherever its easiest for viewing.
Digital measurement speed and accuracy
Stainless steel handrails for assurance
Integral wheels for quick and easy transportc
Height rod measures up to 67" / 200 cm
Includes NEW Detecto MV1 indicator (click here for specs)
|
|
Other Detecto 6854DHR and 6857DHR Bariatric Scales with Digital Height Rod
|
Specifications
| Model |
6857DHR |
6857DHR-AC |
6857DHR-C |
6857DHR-C-AC |
| Capacity x Readability |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
| 450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
| Platform Size |
24 x 24 in |
| 61 x 61 cm |
| DIGITAL HEIGHT ROD MEASUREMENTS |
43" / 110 cm - 79" / 200 cm |
| Power |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
AC adapter (included) or 6 C batteries (not included) |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included) |
AC adapter (included) or 6 C batteries (not included) |
| Indicator |
MedVue® Model MV1 |
| Indicator Dimensions |
9.8 in W x 6.8 in H x 1.8 in D
24.9 cm W x 17.2 cm H x 4.6 cm D |
| LCD Digits |
0.9 in / 22 mm high LCD, 5 digit, 7 segment |
| Keypad Buttons |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys |
| Connectivity |
RS232 serial and USB |
RS232 serial and USB |
RS232 serial, USB, and WiFi/Bluetooth |
RS232 serial, USB, and WiFi/Bluetooth |
| Shipping Weight |
85 lb / 39 kg |
| Country of Origin |
USA |
| UPC Code |
809161148503 |
809161317800 |
809161323702 |
809161323801 |
|
|
|
|
|
|
|
Optional Accessories
more info
|
Detecto Model WACONNECT Welch Allyn Device
Connectivity solution allows capture and viewing of DETECTOs 1LOOK weight, height and BMI measurements and automated data transfer to EMRs.
Welch Allyn, a leading global provider of medical diagnostic equipment, has partnered with DETECTO, America’s largest healthcare scale manufacturer, to enable automated interface between the Welch Allyn Connex® Vital Signs Monitor (Connex VSM), the Welch Allyn Connex® Integrated Wall System (Connex IWS) and select DETECTO medical scales.
Connectivity-ready DETECTO medical scales included under the agreement include eye-level and waist-high electronic column scales for physician and hospital settings, bariatric, wheelchair and visiting nurse scales (listed below) — designed to accommodate every kind of patient need quickly and accurately. These scales operate digitally and are equipped with BMI, easy-to-read display, and auto-off features, plus several models feature digital height rods to speed the measurement process. These scales feature DETECTO’s unique 1LOOK feature which displays height, weight, and BMI all onscreen simultaneously to be viewed in one scan of the eye for efficient patient recordkeeping.
WACONNECT Includes:
- Detecto Welch Allyn Interface License
- Cable USB A Male to USB B Male
- Box and Packaging
|
|
more info
|
Detecto MV1PWR AC Adapter for Detecto MV1
Detecto MV1PWR AC Adapter for Detecto MV1
|
|
|
|
|
|
|
|
|
