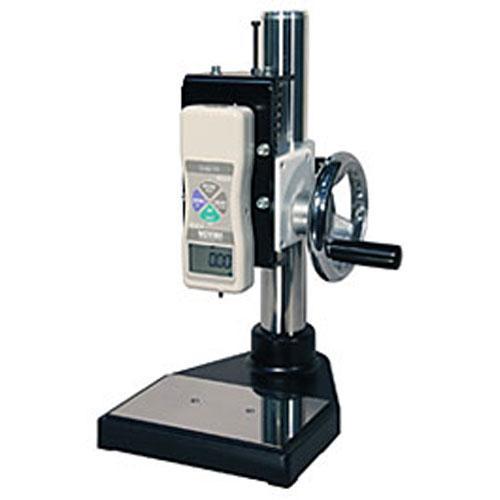

Imada SVH-220S - Vertical Hand Wheel Test Stand with Distance Meter, 220 lbf |
|
| Model SVH-220S are compact test stands with a maximum capacity of 220 lbs. The hand wheel offers precise movement that is ideal for applications requiring relatively consistent speed and maximum gauge control. The gauge remains in position when the wheel is released which allows the user to easily change samples between tests. Hand wheel operation provides repeatable test results from sample to sample. The stroke can be adjusted with a mechanical limit. more ... |
|
Test Equipment >
Force Test Stands >
Manual Test Stands
|
|
|
|
|
|
Features
- Hand wheel design provides a high degree of precise control
- One stand for both compression (push) and tension (pull) tests
- Gauge remains in place when hand wheel is released
- Stroke: 2.36" (60mm)
- Travel: 3mm per wheel rotation
Force gauge sold separately
Model SVH-220S are compact test stands with a maximum capacity of 220 lbs. The hand wheel offers precise movement that is ideal for applications requiring relatively consistent speed and maximum gauge control. The gauge remains in position when the wheel is released which allows the user to easily change samples between tests. Hand wheel operation provides repeatable test results from sample to sample. The stroke can be adjusted with a mechanical limit. The SVH-220 accommodate any of the standard range Imada mechanical or digital force gauges.
Distance Meter Specifications
- Display - Push button for inch/mm, zero set and on/off
- Resolution - 0.0005"/0.01 mm
- Accuracy - 0.1% of reading or 0.005"/0.1mm, whichever is greater
Weight:
30.00 lb
|
2 Year Manufacture Warranty
|

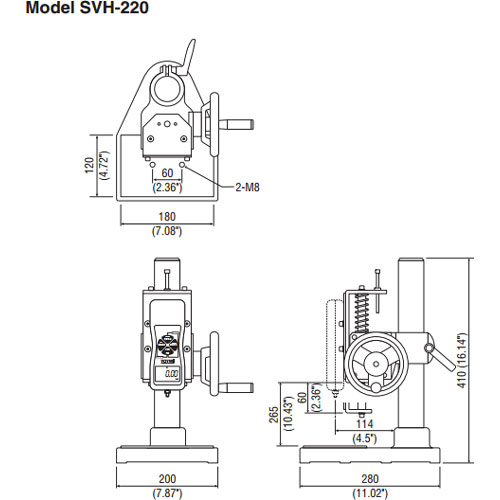

Other Imada SVH-220 - Vertical Hand Wheel Test Stand
|
Specifications
| Model |
SVL-220 |
SVL-220S |
SVH-220 |
SVH-220S |
| Capacity |
220 lb |
220 lb |
220 lb |
220 lb |
| Type |
Lever |
Hand Wheel |
| Distance Meter |
NO |
YES |
NO |
YES |
| Accuracy |
±0.01"/0.2mm |
0.1% of reading or 0.005"/0.1mm, whichever is greater |
| Stroke |
2.3" 60mm per 170° |
2.36" (60mm) |
| Resolution |
0.0005"/0.01 mm |
|
|
|
|
|
| |
|
|
|
|
