CAS CCB-5TLF Digital Crane Scale, 10,000 x 2 lb |
|
| The CCB SERIES CRANE SCALE is a full featured, rugged industrial crane scale with a backlit LCD display suitable for viewing even in direct sunlight! The CCB SERIES is available in capacities ranging from 2,000 to 20,000 lbs more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Crane Scales
|
|
|
|
|
|
Features

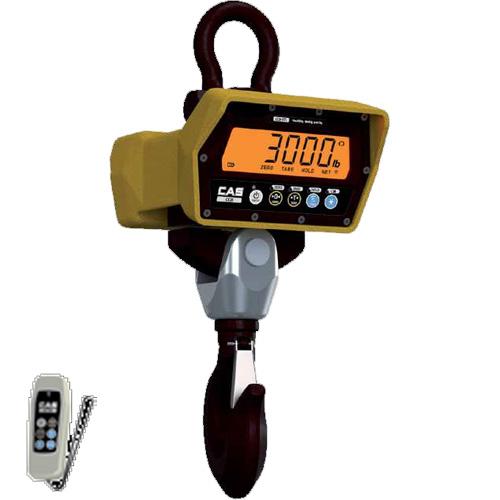

The CCB SERIES CRANE SCALE is a full featured, rugged industrial crane scale with a backlit LCD display suitable for viewing even in direct sunlight! The CCB SERIES is available in capacities ranging from 2,000 to 20,000 lbs
- Easy to Read
- Easy to Use
- Accurate
- Versatile
- Unquestionably Safe
- Durable Long Life
Standard features of the CCB SERIES include an on-board, backlit LCD display with easy to read 1 3/16” (30mm) display characters, an infrared remote controller, swivel hook, and a long lasting, easy to change lithium polymer battery (Li-Po).
For more demanding applications the CCB Series is also available with options including the CRC-100 wireless portable handheld indicator with data management and RS232 connectivity capabilities, wireless 2.3” and 3” FND Remote Display Units, data storage via USB memory stick, and the CRC-200 Communication dongle for wireless ZigBee communication capabilities
Included with each scale
- Crane Scale
- One lithium polymer rechargeable Battery with charger
- IR remote control
Options
- CRC-100 Wireless Portable Handheld Indicator
- CRC-200 Zigbee Wireless Dongle
|
|
Other CAS CCB Series Digital Crane Scales
| Image |
Name |
Price |
|
|
$1,395.00
|
|
|
$1,495.00
|
|
|
$1,695.00
|
|
|
$2,795.00
|
|
Specifications
| Model |
CCB-1TLF |
CCB-3TLF |
CCB-5TLF |
CCB-10TLF |
| Capacity x Readability |
2,000 x 0.5 lb |
5,000 x 1 lb |
10,000 x 2 lb |
20,000 x 5 lb |
| 1,000 x 0.5 kg |
3,000 x 0.5 kg |
5,000 x 2 kg |
10,000 x 5 kg |
| Enclosure |
Aluminum Die Casting |
| Accuracy |
0.1% - 0 ~ Full Capacity |
| Display Digit |
6 Digit 1.18" inch / 30 mm LCD with Backlight |
| Keys |
4 Button Keypad - On/Off, Zero, Tare, Hold |
| Safety Overload |
200% of Capacity |
| Power Source |
3.7VDC Lithium Polymer Battery |
| Operating Time |
Approximately 300 hours |
| Operating Temp |
-20°C ~ 60°C / -4°F ~ 140°F |
| Product Weight |
19.6 lbs / 8.9 kg |
33.5 lbs / 15.2 kg |
36.8 lbs / 16.7 kg |
59.3 lbs / 26.9 kg |
|
8.6 (W) x 10 (D) x 16 (H) inch |
8.6 (W) x 10 (D) x 20.7 (H) inch |
8.6 (W) x 10 (D) x 20.7 (H) inch |
8.6 (W) x 10 (D) x 27.4 (H) inch |
| 219 (w) x 253 (D) x 407 (H) mm |
219 (w) x 253 (D) x 526 (H) mm |
219 (w) x 253 (D) x 526 (H) mm |
219 (w) x 253 (D) x 696 (H) mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
