Mark-10 MTT02-50 Torque Tool Tester, 50 x 0.02 lbFin

Mark-10 - Force and Torque Measurement Products
The TT02 Series Torque Tool Testers present a simple and accurate solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, more ...
Scales > Force Gauge > Torque Gauge
Mark-10 MTT02-50 Torque Tool Tester, 50 x 0.02 lbFin

Specifications Chart View Full Detail Page


Call for more info
Download PDF

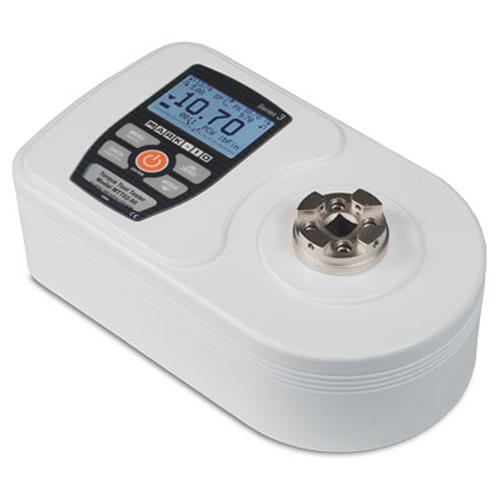

Mark-10 MTT02-50 Torque Tool Tester, 50 x 0.02 lbFin
FREE Ground Shipping *


Price: $1,230.25


In Stock - Ships within 24 hours

Optional Accessories

View Features

Mark 10
SKU: MTT02-50

Features

The TT02 Series Torque Tool Testers present a simple and accurate solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions, and also calculates 1st and 2nd peaks, useful for click-type tools

A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration

Series TT02 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Note: Not for use with impact tools. Features
  • First / second peak capture for CW and CCW directions
  • 3/8” square receptacle accommodates common bits and attachments
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • 1,000-point data memory with statistics and outputs
  • USB, RS-232, Mitutoyo, and analog outputs Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
  • Programmable set point indicators and outputs for pass/fail determination
  • Password protection prevents unauthorized changes
  • 5 selectable units of measurement
  • MESURTM Lite data collection software included

Weight: 10.00 lb
Other Mark 10 TT02 Series Torque Tool Testers

Mark-10 MTT02-12
Torque Tool Tester
12 x 0.005 lbFin

$1,230.25

Mark-10 MTT02-25
Torque Tool Tester
25 x 0.01 lbFin

$1,230.25

Mark-10 MTT02-50
Torque Tool Tester
50 x 0.02 lbFin

$1,230.25

You are viewing this product

Mark-10M MTT02-100
Torque Tool Tester
100 x 0.05 lbFin

$1,230.25

Specifications

Model MTT02-12 MTT02-25 MTT02-50 MTT02-100
lbFin 12 x 0.005 25 x 0.01 50 x 0.02 100 x 0.05
Ncm 135 x 0.1 290 x 0.2 570 x 0.5 1150 x 0.5
ozFin 192 x 0.1 400 x 0.2 800 x 0.5 1600 x 1
Nm 1.35 x 0.001 2.9 x 0.002 5.7 x 0.005 11.5 x 0.005
Accuracy: ±0.3% of full scale
Sampling Rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low
Battery Life Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units ozFin, lbFin, lbFft, Nm, Ncm
Outputs USB / RS-232: Configurable up to 115,200 baud.
UMitutoyo:: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog:±1 VCD, ±0.25% of full scale at capacity.
General purpose:Three open drain outputs, one input.
Set points:Three open drain lines.
Configurable Settings 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 5.8 lb [2.6 kg]
Included items: 1/4" hex to 3/8" square adapter, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration (data is available for an additional charge).
Warranty 3 years (see individual statement for further details)

* within the 48 continental US States


Optional Accessories


Mark-10 09-1047 Mitutoyo Cable
more info
Mark-10 09-1047 Mitutoyo Cable
more info
Price: $75.00
In Stock
btn buy
Cable, BG/CG/EG/BGI to Mitutoyo SPC
Mark-10 09-1048A RS-232, 9-pin Cable
more info
Mark-10 09-1048A RS-232, 9-pin Cable
more info
Price: $71.25
In Stock
btn buy
Cable, BG/CG/EG/BGI to RS-232, 9-pin

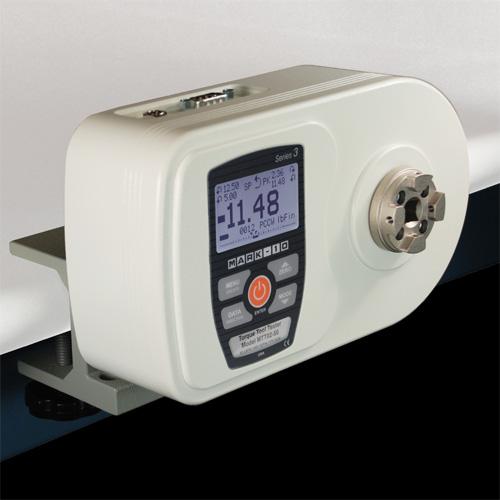

Mark-10 ST001 Mounting Bracket
more info
Mark-10 ST001 Mounting Bracket
more info
Price: $142.50
In Stock
btn buy
Mounting bracket for Mark-10 ST series torque tool tester
Mark-10 15-1004 MESURGauge Data Collection Software
more info
Mark-10 15-1004 MESURGauge Data Collection Software
more info
Price: $470.25
In Stock
btn buy
We are pleased to introduce Mark-10 MESURgauge software, a measuring and analysis program designed to expand the functionality of Mark-10 force and torque measuring instruments.
  • Ability to display both load and travel data
    The ability of MESURgauge to display load and travel data sets it apart from other basic force measurement programs. If the customer wishes to plot a graph of load vs. travel, common for such applications as tensile testing and spring testing, MESURgauge is a compelling alternative to more expensive and complex material testing programs.
  • Compatibility with competitors gauges
    Any force or torque gauge with RS-232 data output is compatible with Mark-10 MESURgauge software. Simply enter in the appropriate communication protocols of the gauge into the program.
  • Simulated data makes evaluation a breeze
    Built-in simulated data allows the customer to evaluate the program with data which can be graphed, analyzed, and manipulated just like real test data. A gauge and cable are not necessary.

Mark-10 MESURgauge is a measuring and analysis program designed to expand the functionality of force and torque measuring instruments. Mark-10 MESURgauge Software captures readings from any force or torque gauge with RS-232 output and displays data in tabular and graphical formats. Load data can be graphed versus time or distance, particularly useful for such applications as spring testing and tensile testing.

Mark-10 MESURgauge Software includes a set of tools to analyze test results, including statistical calculations, quick data export to Microsoft Excel, customizable reports, pass/fail indicators, and many others. Test setups and sequences are customizable and can be saved and recalled. The user can program test start and stop conditions, including load, time, distance, and sample break.

Additional features in Mark-10 MESURgauge Software include a large display screen for real time load and travel data and a utility to configure Mark-10 gauges from a PC. Built-in simulated data generation allows Mark-10 MESURgauge Software to be evaluated without a gauge.

Additional Features:

  • Inputs data from a force or torque gauge and travel display to a PC for further analysis
  • Real time tabular and graphical data displaying load vs. time or load vs. distance
  • Configurable start and stop test triggers (time, load, number of samples, or distance)
  • Statistical calculations (minimum, maximum, average, area under curve)
  • Graph manipulation tools, including zooming, scaling, panning, titles, and more
  • One-button export to Excel
  • Create customizable reports and report templates
  • Compatible with all Mark-10 and other force and torque measuring instruments
  • Save and recall test setups and test data
  • Configure Mark-10 instruments easily through a simple interface
  • View real time data on a large simulated instrument display

Computer Requirements

  • Windows 2000 or later operating system
  • At least 150 MB of free hard disk space
  • Minimum display resolution of 1024 x 768
Mark 10 RSU100 Communication adapter, RS-232 to USB
more info
Mark 10 RSU100 Communication adapter, RS-232 to USB
more info
Price: $118.75
In Stock
btn buy
The RSU100 is a communication adapter used to convert RS-232 data from a Mark-10 device to USB format for PC use.:
:
:
INCLUDED ITEMS:
1 RSU100 Communication Adapter:
1 USB cable, 6’:
1 Installation CD:
1 User’s guide :
:
:
User’s guide :
:
Mark 10 ST002 Carrying case for Torque Tool Testers
more info
Mark 10 ST002 Carrying case for Torque Tool Testers
more info
Price: $166.25
In Stock
btn buy
Hard plastic carrying case with custom molded inserts allows for safe storage and easy transportation Provides storage space for the STA tester, ST001 mounting bracket, AC adapter, and accessories
Mark-10 AC1026-1 Rundown fixture
more info
Mark-10 AC1026-1 Rundown fixture
more info
Price: $142.50
In Stock
btn buy
Helps capture readings for electric and pneumatic tools from 0 to 50 lbFin [0 to 5.7 Nm]
