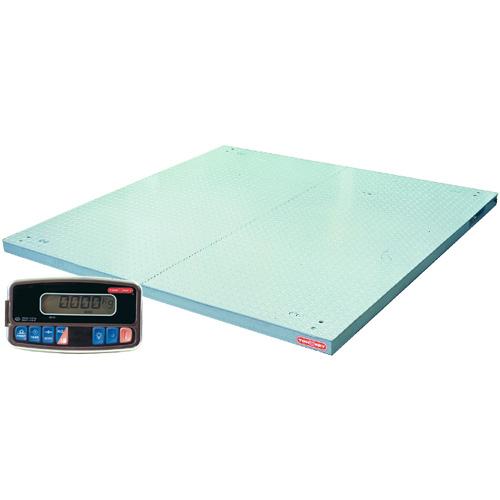

TorRey PLP-5/5-2500/5000 Legal for Trade 5 x 5 Floor Scale 5000 x 1 lb |
|
The PLP Series features platform/floor scales with quick connects and factory calibration allowing easy setup and “out of the box” functionality. Ideal for factories, warehouses, printing houses, workshops, foundries and more! more ... |
Industrial Scales >
Floor Scales >
0 lb to 5000 lb
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions? Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:5000 lbx 1 lb
Legal For Trade: 5000 lb x 1 lb
Pan Size
5 x 5 ft
|
|
|
|
|
|
|
Features
The PLP Series features platform/floor scales with quick connects and factory calibration allowing easy setup and “out of the box” functionality. Ideal for factories, warehouses, printing houses, workshops, foundries and more!
The PLP Series floor scales offer solid construction with a steel channel-frame design providing strength and protection to the load cell, cable and junction box. Our scales feature 5,000 division load cells and 4 adjustable legs to give more stability with every weighing application. The PLP Series is available in several capacities and includes the WI Indicator.
The PLP Series scales feature rugged construction and are designed for heavy duty jobs. TOR REY floor scales don’t need any additional accessories to be installed – you’ll receive the platform ready to operate – just plug in the 25 foot heavy duty cable to the indicator and you’re ready to go.
The PLP Series scales will meet the platform weighing needs of your business.
- Junction box located on side of scale for easy access...25 ft. heavy gauge cable...Sturdy packaging to ensure maximum scale protection when shipping
- Optional ramps + pit frames available... Rugged design + quality construction ensures long life... Shock absorbing platform protects against overloads...
- Steel channel-frame design provides strength and protection to the load cells, cable and junction box.
- 5,000 division load cells, steel construction and hermetically-sealed junction box for maximum protection
- Steel Channel Frame Design
- 25 Ft Heavy Gauge Cable
- Sealed Junction Box
- 5,000 Division Load Cells
- Adjustable Legs (3?h to 4?h)
- Solid Steel Construction
- WI Indicator Included
- Built-In Rechargeable Battery
- AC Adapter
- Ready To Go - Out of the Box
- Legal For Trade (NTEP 01-027)
IDEAL FOR
- Industry
- Warehouses
- Shipping Companies
- Supermarkets
- Printing Houses
- Workshops
- Steel Dealers
- Foundries
- Small Business
- Receiving Areas
- and more!
Dimensions X:
45.80
Y:
33.20
Z:
44.70
|
|
Other Torrey PLP Legal for Trade Floor Scales
Image |
Name |
Price |
|
|
$990.00
|
|
|
$1,590.00
|
|
|
$990.00
|
|
|
$1,590.00
|
|
Specifications
Model |
PLP-4/4-2500/5000 |
PLP-4/4-5000/10000 |
PLP-5/5-2500/5000 |
PLP-5/5-5000/10000 |
Capacity x Readability |
5000 x 1 lb |
10000 x 2 lb |
5000 x 1 lb |
10000 x 2 lb |
2500 x 0.5 kg |
5000 x 1 kg |
2500 x 0.5 kg |
5000 x 1 kg |
Legal For Trade |
NTEP #01-027 |
Platform Size |
4 x 4 foot |
5 x 5 foot |
Maximum Tare |
1250 kg / 2500 lb |
2500 kg / 5000 lb |
1250 kg / 2500 lb |
2500 kg / 5000 lb |
Operating Temp |
4 to 104°F |
4 to 104°F |
4 to 104°F |
4 to 104°F |
Operating Temp |
-4 to 122°F |
-4 to 122°F |
-4 to 122°F |
-4 to 122°F |
Net Weight |
320 lbs |
380 lbs |
Net Weight |
350 lbs |
430 lbs |
Power Supply |
110 v / 60 hz |
Power Supply |
110 v / 60 hz |
Interface |
RS-232 |
|
|
|
|
Optional Accessories
more info
|

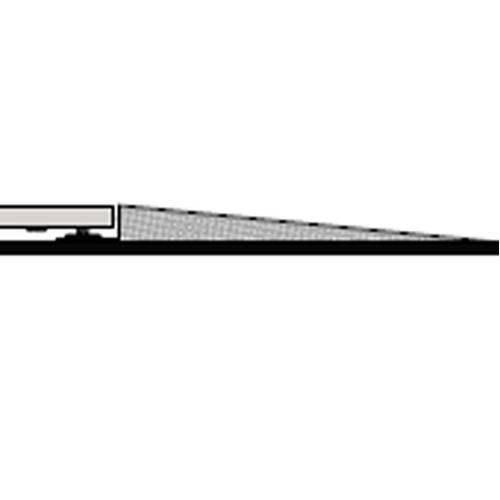

TorRey PLP55RAMP Ramp for 5 x 5 PLP Floor Scales
PLP-5/5 Ramp is the ideal accessory to TOR REY’s line of PLP-5/5 Floor Scales when easy forklift/pallet jack access is needed. Measuring 5? x 3?, the PLP-5/5 Ramp includes attached brackets with circular cutouts to allow easy positioning with your TOR REY floor scale. Featuring solid steel construction with an epoxy-coated finish, the PLP-5/5 Ramp can be positioned on one or two sides of the TOR REY floor scale for easy access from multiple directions.
|
|
more info
|

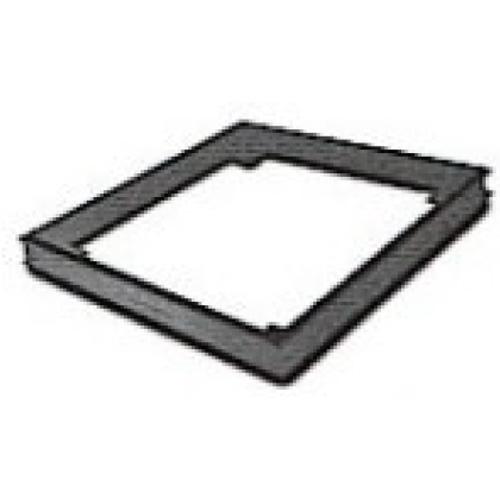

TorRey PLP55PIT Pit Frame for 5 x 5 PLP Floor Scales
Pit Frame Option for Torray PLP floor scales.
|
|
|
|
|
|
