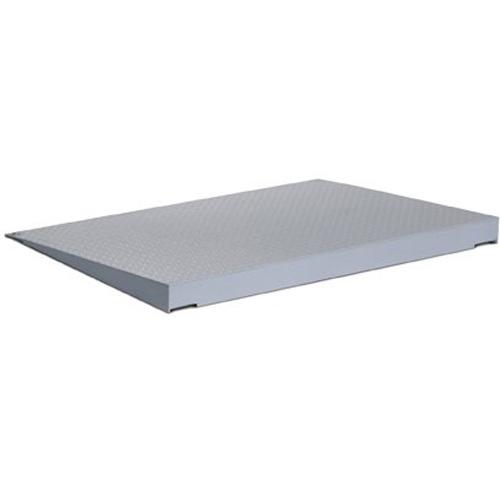

Brecknell DSB3636-02.5 Legal for Trade 36`` x 36`` Floor Scale 2500 x 0.5 lb |
|
| The Salter Brecknell DSB-Series Floor Scale Systems is Versatile Indicator For many applications including shipping, counting, totalizing and check weighing functions NTEP certified at 5,000 divisions, Class lll.Rugged Construction Thick safety tread top plate with heavy duty welded wide channel supports. Functions Checkweighing, count, weight, total and print more ... |
|
Industrial Scales >
Floor Scales >
0 lb to 5000 lb
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:2500 lbx 0.5 lb
Legal For Trade: 2500 lb x 0.5 lb
Pan Size
3 x 3 ft
|
|
|
|
|
|
|
|
|
Features
The Salter Brecknell DSB-Series Floor Scale Systems is Versatile Indicator For many applications including shipping, counting, totalizing and check weighing functions NTEP certified at 5,000
divisions, Class lll.Rugged Construction Thick safety tread top plate with heavy duty welded wide channel supports. Functions Checkweighing, count, weight,
total and print.
- Capacity – 2500 lb x 0.5 lb / 5000 lb x 1 lb / 10,000 lb x 2 lb
- Legal for Trade - NTEP certified at 5,000 divisions, Class lll
- Versatile Indicator – For many applications including shipping, counting, totalizing and check weighing functions
- Power - AC adapter (included) or external customer supplied 12Vdc
- Finish – Powder coat paint
- Load Cells – Four alloy steel potted load cells
- RS-232 – Standard serial string with time and date
- Function – Checkweighing, count, weight, total and print
- Rugged Construction – Thick safety tread top plate with heavy duty welded wide channel supports
|
|
Other Salter Brecknell DSB-Series Legal for Trade Floor Scales
| Image |
Name |
Price |
|
|
|
$1,095.00
|
|
|
$1,195.00
|
|
|
$1,495.00
|
|
|
$1,295.00
|
|
|
$1,595.00
|
|
Specifications
| Model |
DSB3636-02.5 |
DSB4848-05 |
DSB6060-05 |
DSB4848-10 |
DSB6060-10 |
| Capacity x Readability |
2500 x 0.5 lb |
5000 x 1 lb |
5000 x 1 lb |
10000 x 2 lb |
10000 x 2 lb |
| 1250 x 0.2 kg |
2500 x 0.5 kg |
2500 x 0.5 kg |
5000 x 1 kg |
5000 x 1 kg |
| Platform size |
36" x 36" |
48" x 48" |
59" x 59" |
48" x 48" |
59" x 59" |
| Legal for Trade |
Base: NTEP CC #11-081 - Indicator: NTEP CC #11-082 |
| Accuracy: |
NTEP at 5000 divisions, Class III |
| Floor Scale Material |
Mild steel with 5 mm / 0.19" deck with safety tread |
| Height Dimension |
min 102 mm / 4.0"; max 118 mm / 4.6 |
| Finish |
Powder coat paint |
| Overload Protection |
150% of rated capacity |
| End Loading |
100% of rated capacity |
| Operating Temperature |
-10° C to 40° C / 14° F to 104° F |
| Interface Cable Length |
4.6 m / 15 Foot |
| Indicator |
SBI-505 |
| Indicator Construction |
Mild steel with stainless steel desk stand or wall mount stand |
| Indicator Dimensions |
47 mm (W) x 220 mm (L) x 149 mm (H)
1.875" W x 8.675" L x 5.875" H |
| Finish |
Powder coat paint |
| Rated |
IP65 |
| Display |
Six digit 20 mm / 0.8" high red LED |
| Annunciators |
-0-, motion, Gross, Net, tared, Total, pcs, lb, kg, Lo, OK, Hi |
| Interface |
RS-232: Female DB9 connection |
| Operator Keys |
On/Off, Total, Count, kg/lb, Gross, Tare, Zero, Print |
| Power |
120/220VAC; Output: 9.0V center positive |
| Calibration |
Front panel accessible |
| Warranty |
Three year parts only from time of purchase. Consult factory |
Load Cell Rated: NTEP, IP65
J-Box Construction: Mild steel
Loadcell Material: Alloy tool steel potted
Loadcell Rated Output: 3 mv/V
Loadcell Output Resistance: 350 ohm
J-Box Access: Top access for easy installation and service
Leveling Feet: Four top access holes for quick installation
Threaded Eye Bolts: Four threaded top access eye-bolt holes for easy mobility and pit service
Corner Protection: Closed corners to prevent damage to leveling feet while installing the scale
|
|
|
|
|
|
Optional Accessories
more info
|
Brecknell 816965005437 Ramp, 36 x 36 for DSB-Series
Brecknell 816965005437 Ramp, 36 x 36 for DSB-Series
|
|
more info
|
Salter Brecknell CP103 Thermal Printer with Power Adapter
Compact thermal printer featuring POS compatibility and a global power supply. Designed for testing and measurement, facilities management, law enforcement and many other small footprint applications.
Common Applications - n-Vehicle Printer, Emergency Services, Field Service, Logistics, Testing and Measurements, Retail, Facilities
Management, Agriculture, Recycling, Waste Management, Law Enforcement, Cranes, Data Collection, Receipts,
Product Labelling & Hospitals
- Windows Driver
- POS Compatible
- ABS Plastic
- Configurable Baud 4800 -115,200
- Double High, Double Wide Capable
- Compact 104 mm (L) x 75 mm (W) x 48 mm (H)
4" L x 3" W x 1.8” H
- 12 Volt DC or A/C Ready - Power can be
supplied through the RS-232 cable from host
- RS-232
- Time and Date Standard
- Customize Logo Affixation
- Invert Printing
- Paper Out Sensor
|
|
|
|
|
|
|
|
|
